Lift and Mount the Drive Chapter 3

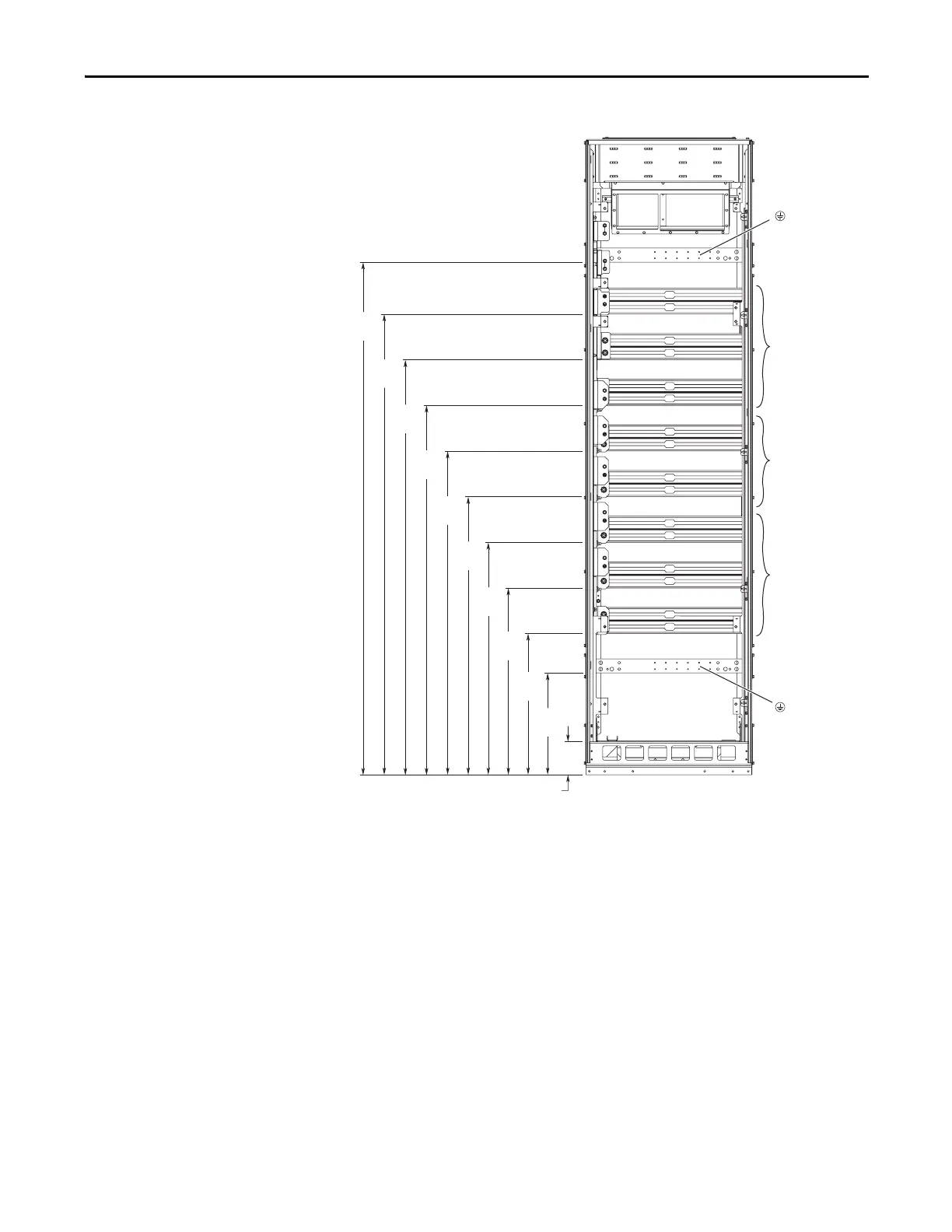

Figure 76 - Bus Bar Dimensions (AC Input)
Dimensions are in millimeters and (inches).
➊ To connect to the DC bus bars, a PowerFlex 750-Series DC Bus Connection
Kit (20-750-BUS1A-F8) is required.
369
(14.5)
511
(20.1)
671
(26.4)
841
(33.1)
1006
(39.6)
1171
(46.1)
1336
(52.6)
1501
(59.1)
1666
(65.6)
1854
(73.0)
125
(4.9)
R / L1
S / L2
T / L3
DC+
DC-
U / T1
V / T2
W / T3
PE
PE
➊
To Next Page
