Chapter 3 Lift and Mount the Drive

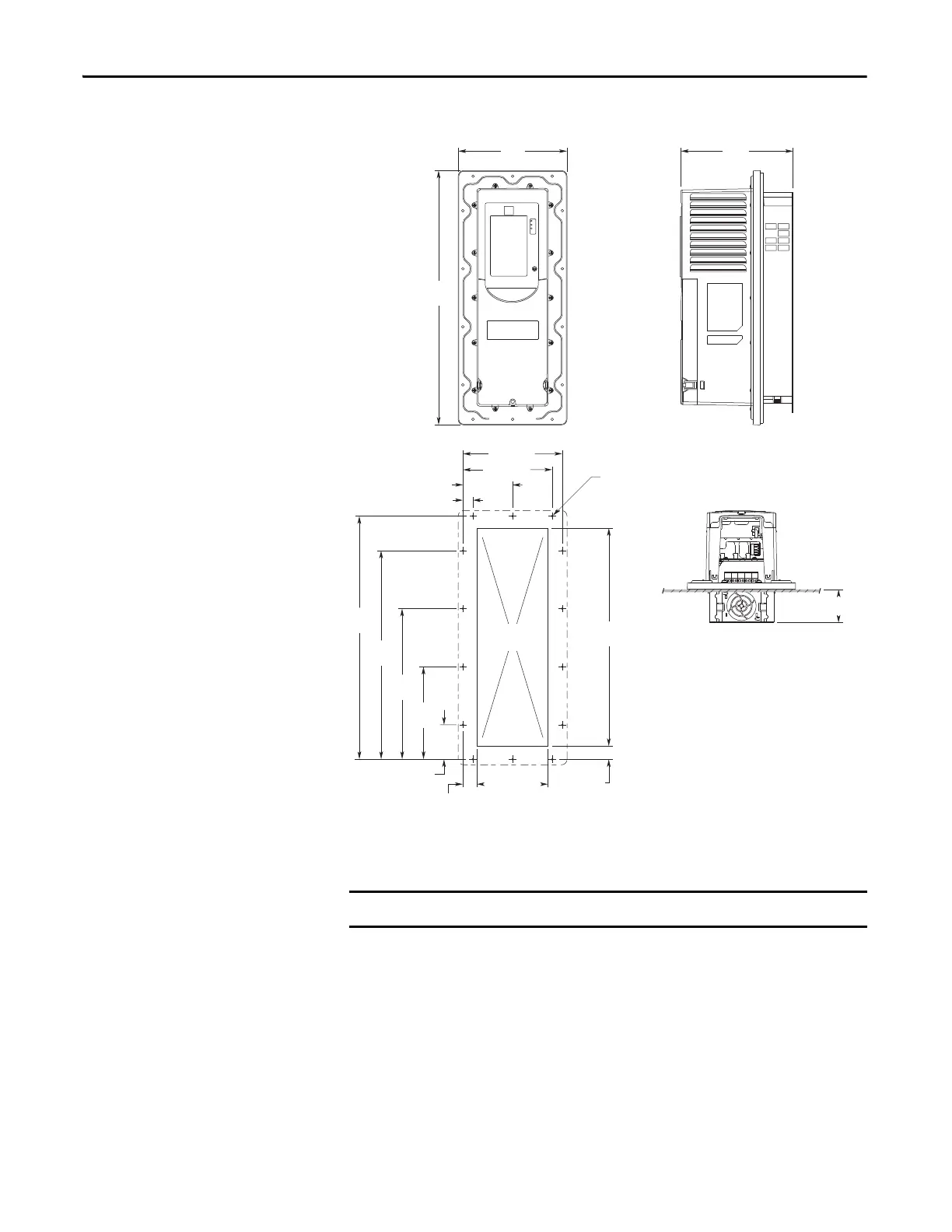

Figure 18 - Flange Mount, Frame 2
Dimensions are in millimeters and (inches).
IMPORTANT
Must use mounting hardware supplied to meet enclosure rating.
206.2
(8.12)
212.0
(8.35)
481.8
(18.97)
63.7
(2.51)
175.3
(6.90)
65.3
(2.57)
285.3
(11.23)
395.3
(15.56)
460.6
(18.13)
19.2 (0.76)
94.2 (3.71)
169.2 (6.66)
188.3 (7.41)
14x: Ø3.50
(Ø0.138)
128.00 +1.80/-0.00
(5.0 +0.1/-0.0)
399.60 +1.80/-0.00
(15.7 +0.1/-0.0)
30.5
(1.20)
30.2
(1.19)
