Rockwell Automation Publication 750-IN001O-EN-P - October 2014 61
Lift and Mount the Drive Chapter 3

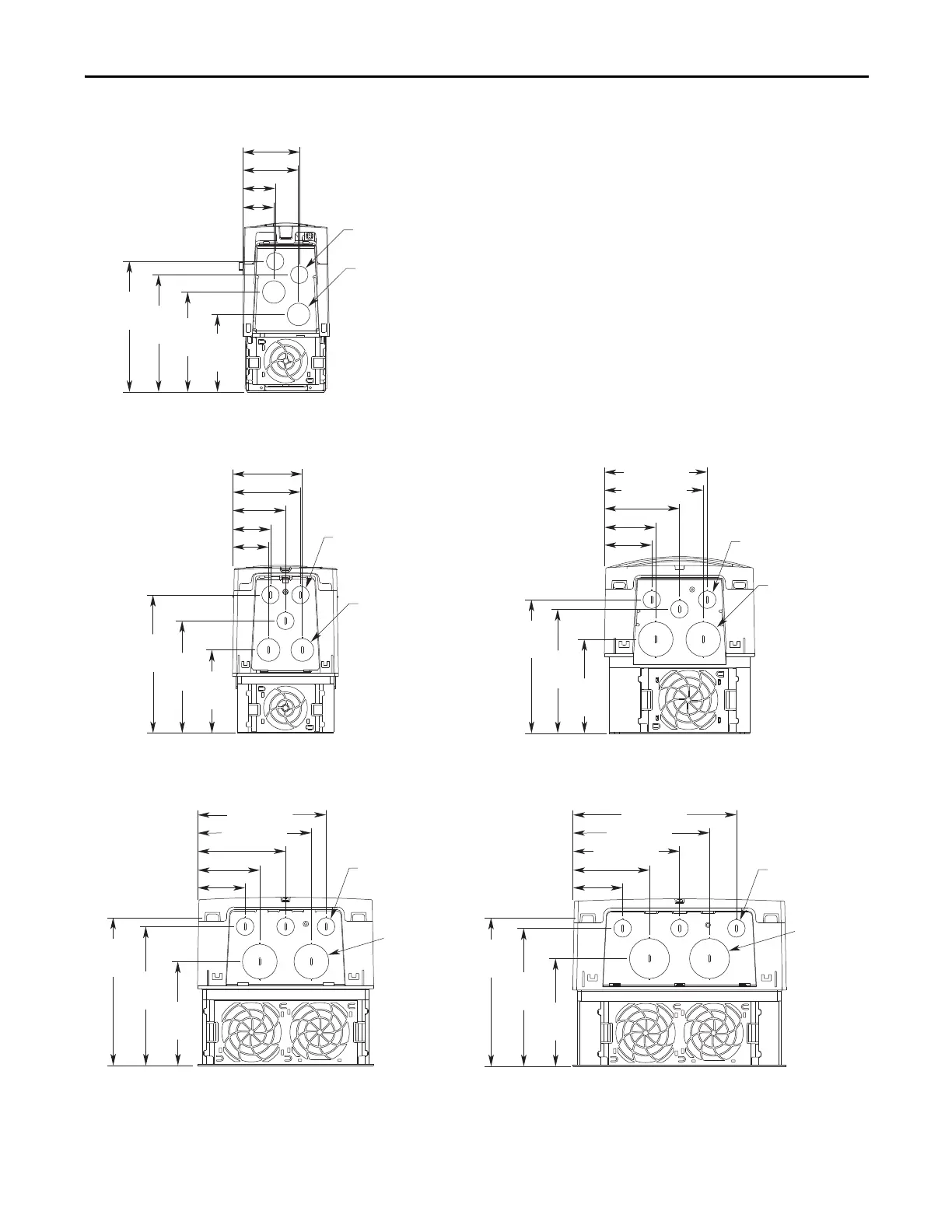

Figure 23 - NEMA/UL Type 1, Wall Mount Frames 1…5, Bottom Access
Dimensions are in millimeters and (inches).
171.6
(6.76)
137.6
(5.42)
94.6
(3.72)
89.7 (3.53)
87.0 (3.43)
67.5 (2.66)
48.0 (1.89)
45.3 (1.78)
156.7
(6.17)
118.7
(4.67)
168.7
(6.64)
60.0 (2.36)
65.0 (2.56)
95.0 (3.74)
125.0 (4.92)
130.0 (5.12)
5x: Ø22.2
(Ø0.87)
2x: Ø43.7
(Ø1.72)
2x: Ø29.0
(Ø1.14)
5x: Ø22.2
(Ø0.87)
5x: Ø22.2
(Ø0.87)
2x: Ø43.7
(Ø1.72)
118.7
(4.67)
168.7
(6.64)
187.0
(7.36)
62.8 (2.47)
76.8 (3.02)
110.8 (4.36)
144.8 (5.70)
158.8 (6.25)
123.0
(4.84)
173.0
(6.81)
187.0
(7.36)
69.0 (2.72)
90.0 (3.54)
135.0 (5.31)
180.0 (7.09)
201.0 (7.91)
2x: Ø50.0
(Ø1.97)
5x: Ø22.2
(Ø0.87)
72.1 (2.84)
71.9 (2.83)
41.4 (1.63)
39.7 (1.56)
171.6
(6.76)
137.6
(5.42)
94.6
(3.72)
171.6
(6.76)
2x: Ø22.2
(Ø0.87)
2x: Ø29.0
(Ø1.14)
Wall Mount Frame 3
Wall Mount Frame 5
Wall Mount Frame 2
Wall Mount Frame 4
Wall Mount Frame 1
