Rockwell Automation Publication 750-IN001O-EN-P - October 2014 203
Power Wiring Chapter 4

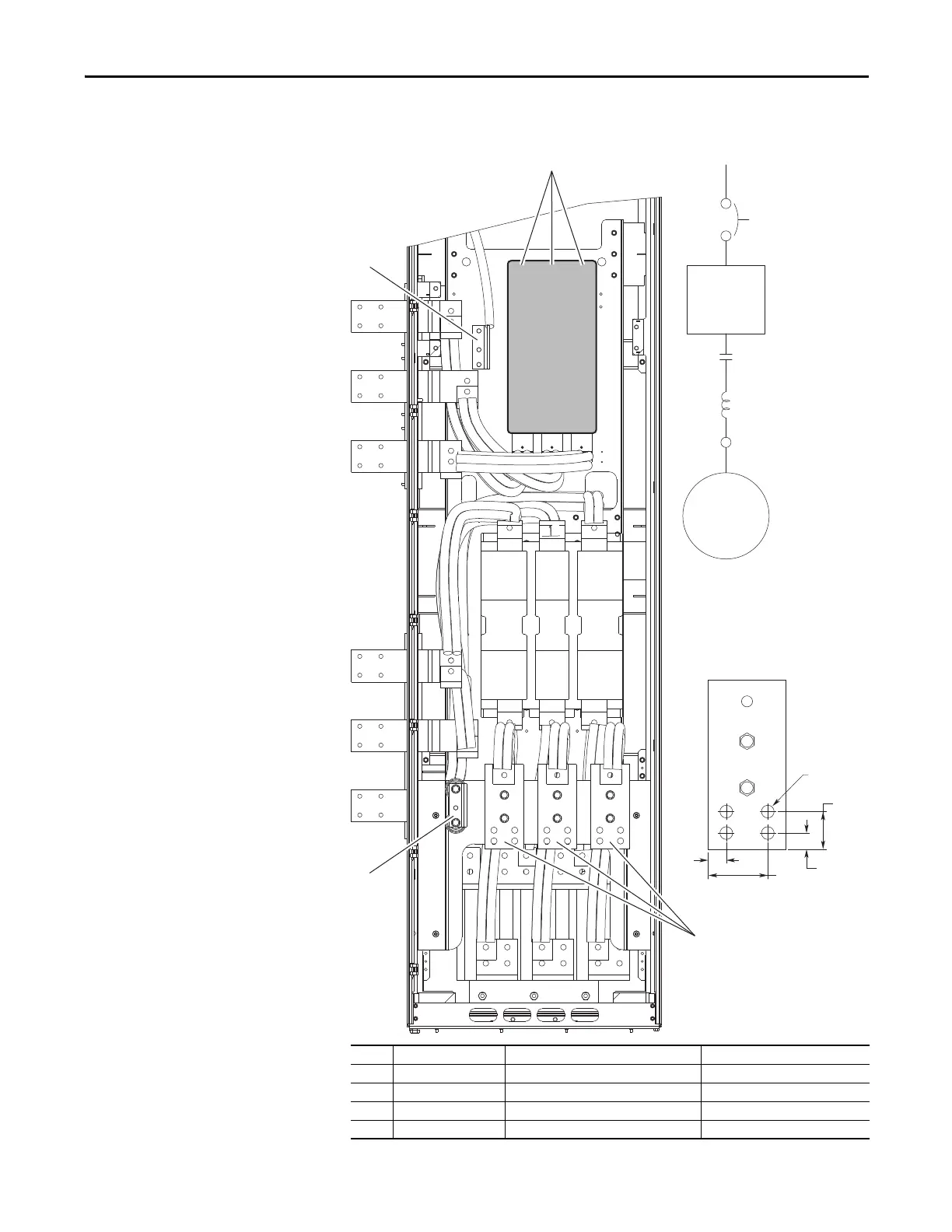

Figure 107 - Option P3 or P5 Disconnect, Option P12 Output Contactor, and Option L2 or L4 Output
Reactor (Floor Mount Frame 8 Only)
No. Name Description Recommended Torque
R/L1, S/L2, T/L3 Three-phase input power connection. Factory Installed
PE Three-phase input ground. 38.0 N•m (336 lb•in)
PE Three-phase motor ground. 38.0 N•m (336 lb•in)
U/T1, V/T2, W/T3 Motor connection. 38.0 N•m (336 lb•in)
ø15 (0.6)
4 Places
44.5
(1.75)
19.1
(0.75)
70.5
(2.80)
21.5
(0.85)
Drive
Motor
P3 or P5
P12
L2 or L4
Output Terminal
