I/O Wiring Chapter 5
120V Output Wiring for Drive Control
The Common DC Input drive provides limited 120V control power for use with
the drive control pod option modules. For terminal block wiring specifications
see Table 34 - on page 220
.

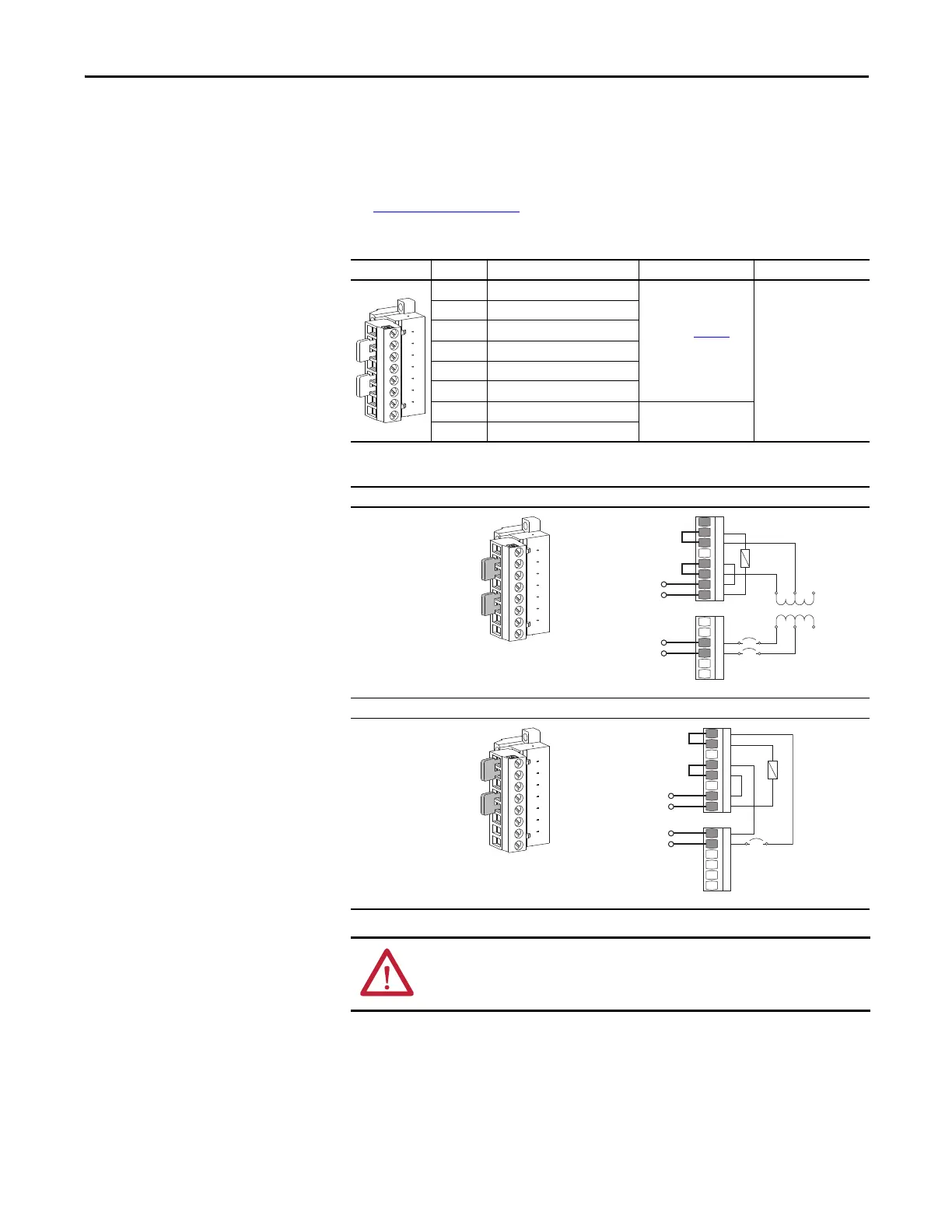

Table 52 - TB5 Terminal Designations
Table 53 - TB5 Jumper Settings
Fixed I/O Terminal Name Description Rating
1 UPS 120VAC OUT HOT Jumper combinations
select the source of the
120V AC output for drive
control. See Table 53
.
120V AC, 50/60 Hz,
0.4 A, 48 VA
Fusing: 1A, 600V,
Class CC, Time Delay
2120VAC HOT
3 CONTROL 120VAC OUT HOT
4 UPS 120VAC OUT NEUTRAL
5120VAC NEUTRAL
6 CONTROL 120VAC OUT NEUTRAL
7 120VAC OUT NEUTRAL Drive supplied 120V AC
output for drive control.
8120VAC OUT HOT
120V AC from Control Transformer
Factory Jumper Settings:
• TB5-2 and TB5-3
• TB5-5 and TB5-6
120V AC from User Supplied UPS
User Jumper Settings:
• TB5-1 and TB5-2
• TB5-4 and TB5-5
ATTENTION: Hazard of personal injury or equipment damage exists if jumpers
are incorrectly set. Verify jumpers are set for control scheme used before
energizing the circuit.
1
2
3
4
5
6
7
8
2
3
5
6
1
2
3
4
5
6
1
2
3
4
5
6
7
8
120V AC Output
Neutral
Hot
120V AC Input
Neutral
Hot
1 A
N 120 240
T1
1KVA
SW2
8
7
TB5
TB2
1
2
4
5
1
2
3
4
5
6
1
2
3
4
5
6
7
8
120V AC Output
Neutral
Hot
120V AC UPS Input
Neutral
Hot
1 A
SW2
TB5
TB2
6
