Allen-Bradley PowerFlex 20-750-S1 User Manual

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 47
Lift and Mount the Drive Chapter 3

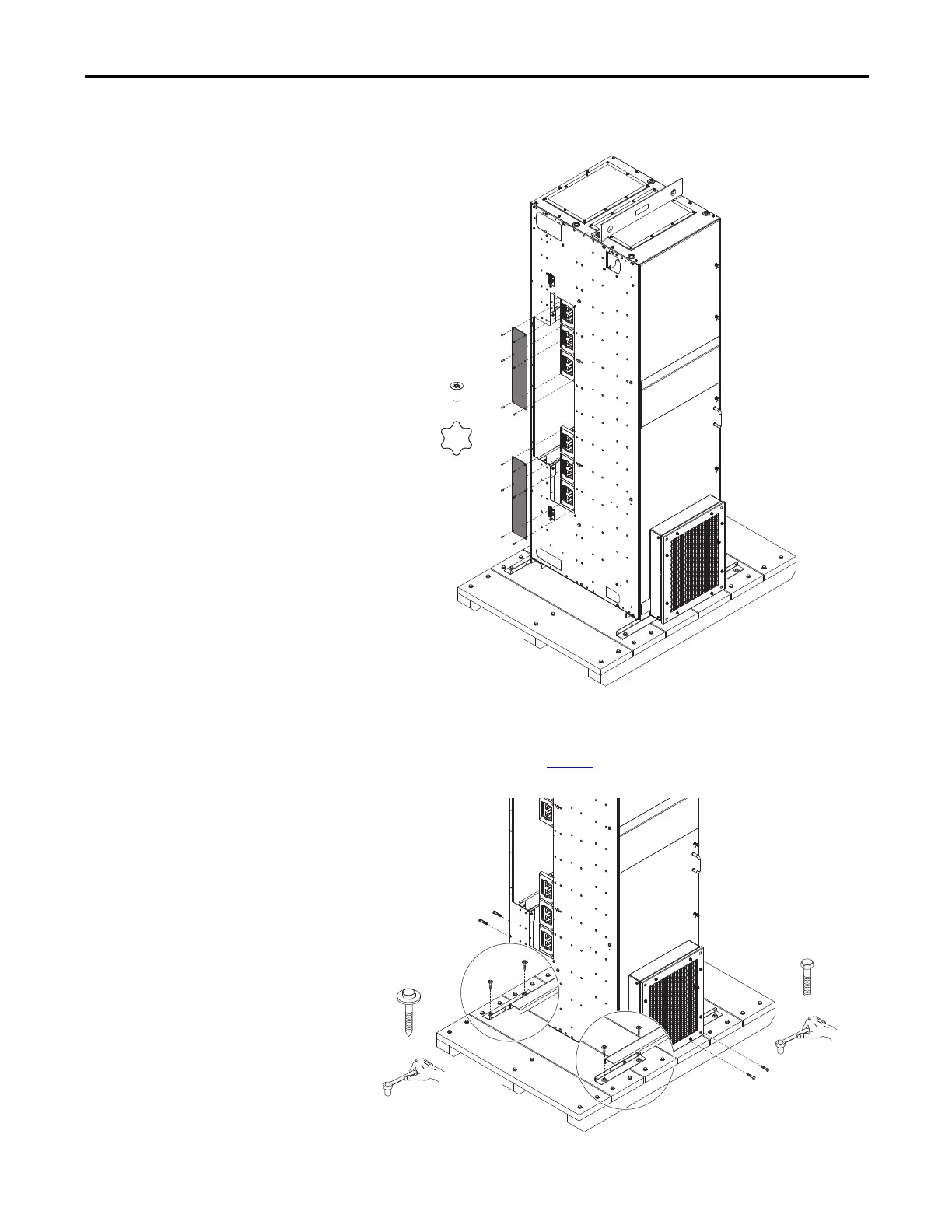

8. Remove and discard the wiring bay inner panels covering the ends of the
bus bars.
9. Release the wiring bay from the shipping skid.
The shipping angles on the left side of the cabinet can be left in place to
assist with alignment in step 11
. Remove the shipping angles after cabinets
are aligned and joined.
M6 x 25
T30
Wiring Bay
3/8 in.
9/16 in.
M8 x 16
13 mm
