Chapter 4 Using the HIM

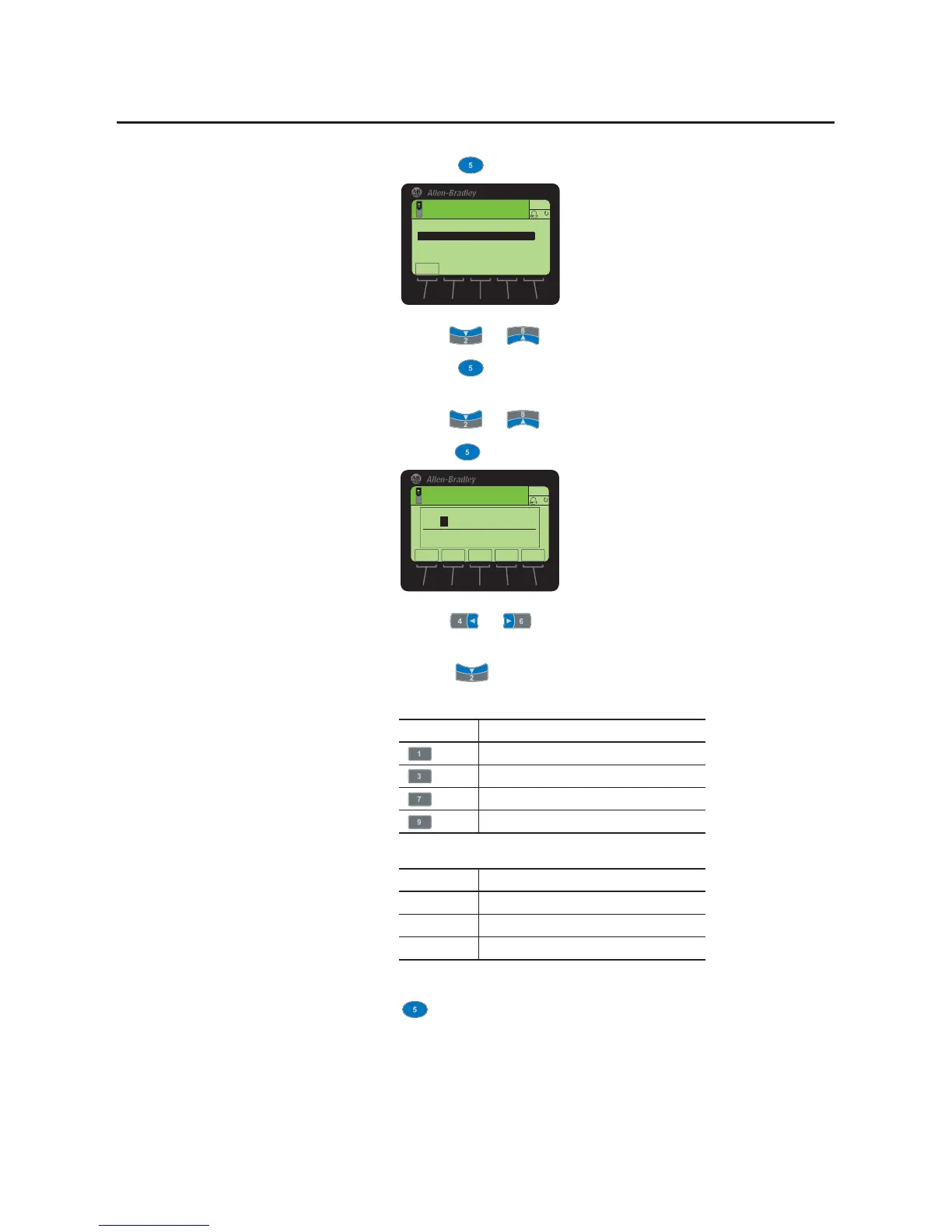

6. Press the (Enter) key to display the CopyCat Files selection screen.
7. Use the or key to select Rename CopyCat File.
8. Press the (Enter) key to display the Select File To Rename pop-up
box.
9. Use the or key to select the file to be renamed.
10. Press the (Enter) key to display the Edit CopyCat File Text pop-up box.
11. Use the or key to move the cursor to the desired character
position in the displayed name.
12. Press the key to access the last-viewed character set.
13. Press the appropriate numeric key to access the desired character set.
Also, use the appropriate soft keys to help create the new name.
14. With the desired character selected in that character position, press the
key to select and enter the character.
15. Repeat steps 11 through 14 for each character position.
16. When the desired name is displayed on the edit pop-up box, press the
ENTER soft key to enter and save the new name.
Numeric Key Function
Selects the numeric character set.
Selects the symbols character set.
Selects the upper case letter character set.
Selects the lower case letter character set.
Soft Key Function
DEL Deletes a highlighted character.
INS Inserts a space to the left of a highlighted character.
CLR Deletes an entire text string.
6WRSSHG
+]
$872
(6&
)
3RUW &RS\&DW)LOHV
&RS\&DWIURP'HYLFHWR+,0
&RS\&DWIURP+,0WR'HYLFH
'HOHWH&RS\&DW)LOH
5HQDPH&RS\&DW)LOH
( 6 & (17(5
6WRSSHG
+]
$872
)
,16 '(/
0RYH&XUVRU &KDU6HW
&/5
(GLW&RS\&DW)LOH7H[W
PowerFlex 755
To Next Page
