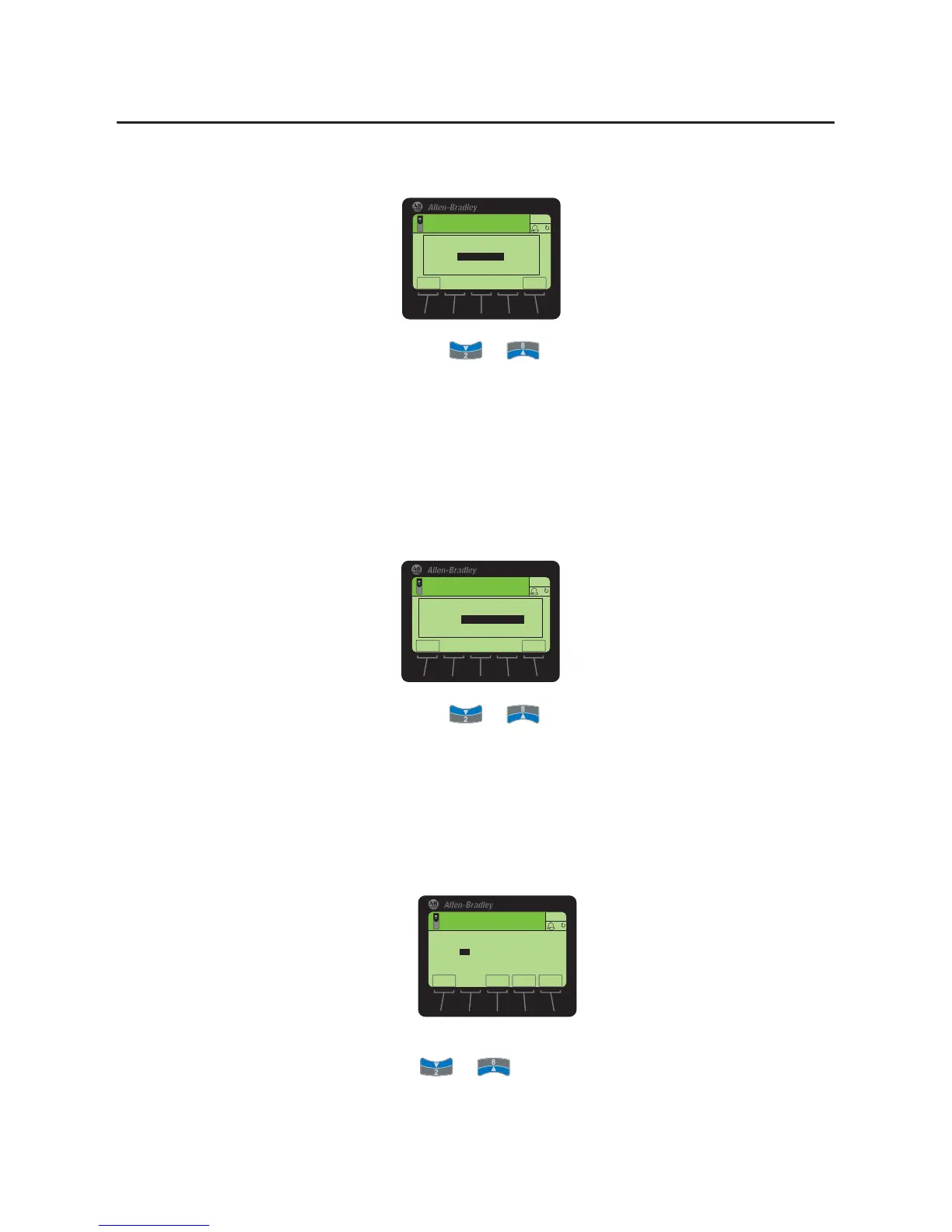

Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013 53
Using the HIM Chapter 4
2. Press the EDIT soft key to display the edit pop-up box for the selected field
(in this case, the port number field).
3. Use the or key to scroll to the port number of the device
whose parameter you want to target for the association (for this example,
Port 00, where the speed Reference parameters for the available drive ports
are located).
4. Press the ENTER soft key to enter the selected port number.
The target parameter selection pop-up box appears (see example screen
below), showing a list of available target parameters that can be associated.
5. Use the or key to scroll to the target parameter you want to
associate.
For this example, we selected drive Parameter 877 - [Port 13 Reference]).
6. Press the ENTER soft key to enter the selected target parameter.
If the target parameter:
• Is not a bit parameter, the parameter association is now changed and
the indirect selector or reference parameter screen re-appears with the
associated parameter information shown.
• Is a bit parameter, a list of available bit numbers is displayed. Use the
or key to scroll to the bit number of the target parameter
you want to associate, and press the ENTER soft key. The parameter
The ‘Zero Speed’ setting may be available to select for specific
applications that require a safe-state speed Reference.
6WRSSHG
+]
$872
)
(GLW6SG5HI$6HO
6HOHFW3RUW7R8VH
=HUR6SHHG
3RUW3RZHU)OH[
( 6 & (17(5
6WRSSHG
+]
$872
)
(GLW6SG5HI$6HO
6HOHFW3DUDP7R8VH
3DU 6SG5HI$6WSW
3DU 3UHVHW6SHHG
3DU 3UHVHW6SHHG
( 6 & (17(5
(6& (',7
6WRSSHG
+]
$872
)
3RUW'HY3DUDP
Spd Ref A Sel
3 3
3RUW 3RZHU)OH[
3$5
