Rockwell Automation Publication 20HIM-UM001D-EN-P - February 2013 25
HIM Components Chapter 3

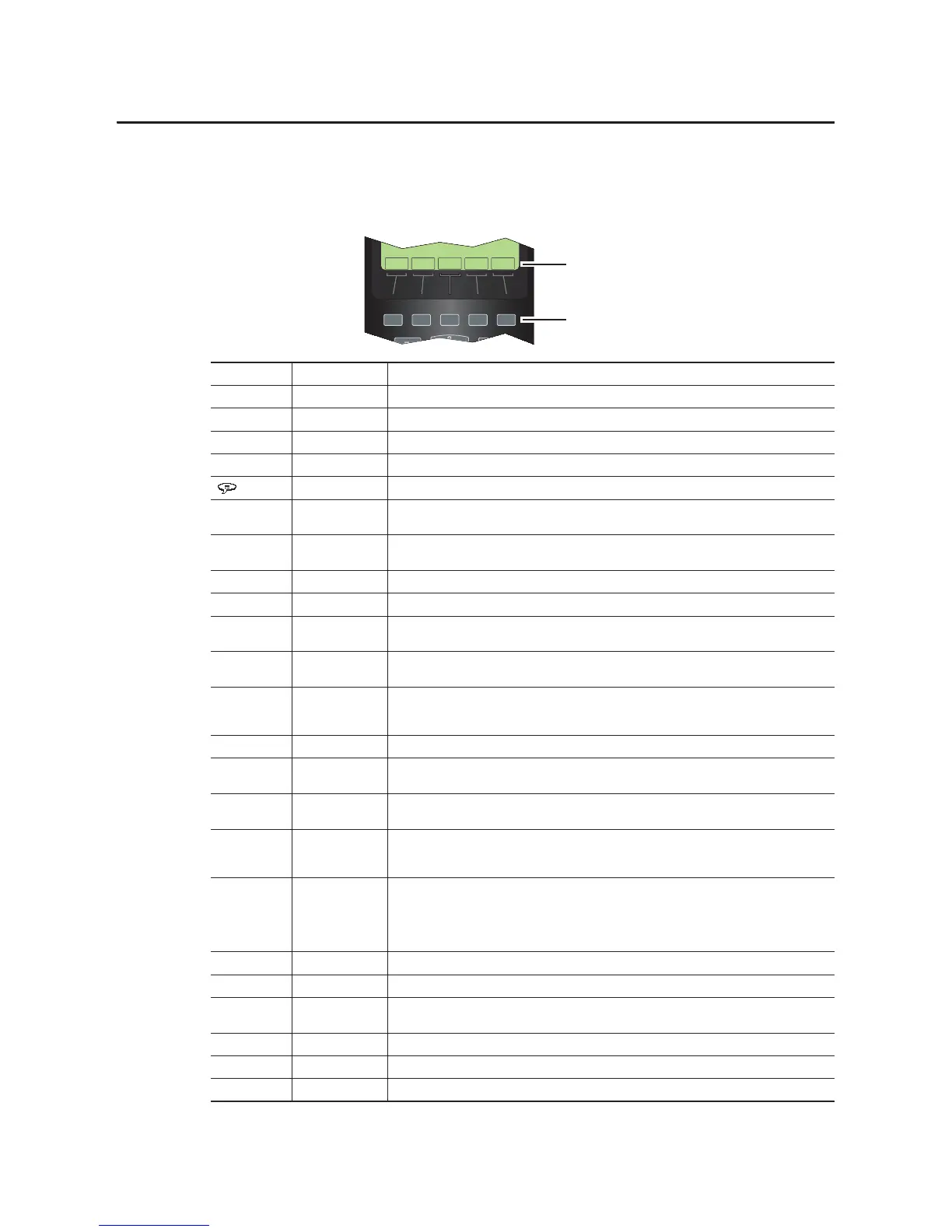

Soft Key Labels
The Soft Key Labels identify the present function of a corresponding Soft Key on
the Key Pad. Different screens may show different Soft Key Labels.
(6& 9,(: 5() 7(;73$5
Soft Keys
Soft Key Labels
Soft Key Label Name Function
Decimal Point Adds decimal point to the right-most position of a numeric value.
Backspace Deletes the character to the left of the cursor.
Sign Changes the sign of a parameter value.
Number Selects the Direct Numeric Entry Method to change PowerFlex 750-Series drive parameter associations.
Language Directly accesses the Select Language To Use screen.
Scroll Up • Scrolls up through display lines.
• Increases a value.
Scroll Down • Scrolls down through display lines.
• Decreases a value.
Scroll Left Scrolls left through display lines.
Scroll Right Scrolls right through display lines.
$&. Acknowledge Acknowledges the fault or alarm on the pop-up screen, stops the backlight from flashing, and keeps the pop-up
screen active.
$// All • Clears all faults, alarms or events when a pop-up box appears from a queue screen.
• Restores all Host or Port device parameters to factory defaults.
&/5 Clear • Deletes an entire text string.
• Displays the Select Action pop-up box used to clear the selected fault, alarm or event, or the entire fault,
alarm or event queue.
'(/ Delete Deletes a highlighted character.
(',7 Edit • Accesses a displayed parameter to edit.
• Accesses the Edit Process Display screen.
(1' End • Displays the end (least recent) fault, alarm or event in a queue
• Scrolls to the end line of data on the Device Version information screen.
(17(5 Enter • Displays the next level of a selected menu item.
• Enters new values.
• Performs the intended action.
(6& Escape • Cancels port verification conflict pop-up box during procedure to resolve a conflict.
• Cancels the existing screen and returns to the previous screen.
• Cancels an entry.
• Cancels pop-up Fault Display screen.
• Displays the time zone groups list screen (only when the Date/Time Set Edit Mode screen is shown).
(;3 Exponent Allows data entry using scientific notation for 32-bit REAL (floating point) values.
),; Fix Fixes ‘Changed’ or ‘Requires Configuration’ port verification conflicts upon power up.
,1)2 Information • Shows additional information about a selected port verification conflict upon power up.
• Shows additional information about Set Default actions.
,16 Insert Inserts a space to the left of a highlighted character.
/,1. Link Displays a Link Edit pop-up box to link parameters (only PowerFlex 7-Class drives).
/2:(5 L
o
wer Displays the lower 16 bits (bits 0…15) of a 32-bit Bit-type parameter.
