6 SLC 500™ Analog I/O Modules
Publication 1746-IN008A-US-P
with analog current and voltage input signals. The channels can be wired as
either single-ended or differential inputs. There are DIP switches on the circuit
board for selecting voltage or current input.

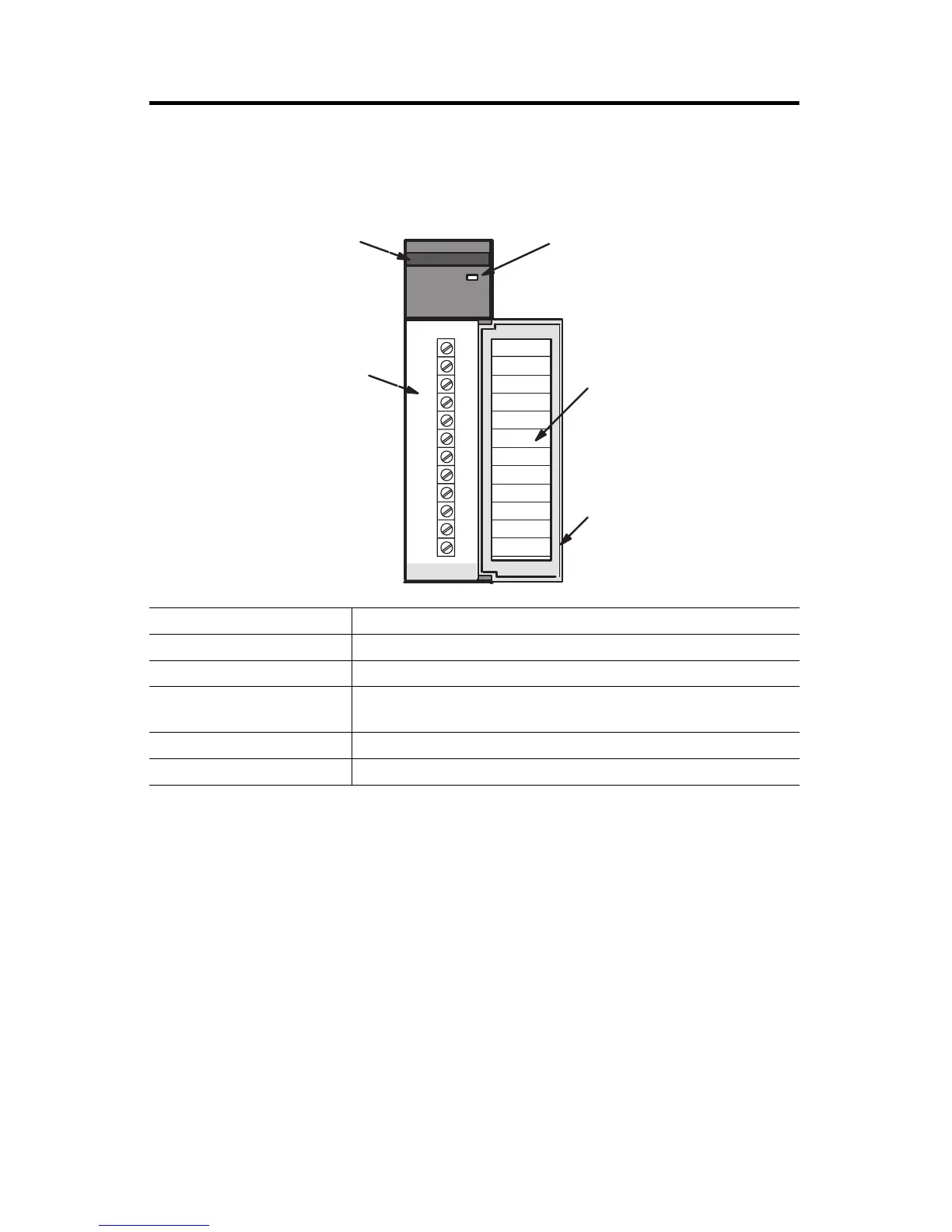

Hardware Feature Function
Function Label Indicates input, output, or both.
Power Status LED Indicates when backplane power is applied to the module.
Removable Terminal
Block
Provides physical connection to input devices.
Door Label Permits easy terminal identification.
Door Protects terminal connections and label.
(5) ANL COM
(6) NOT USED
(7) OUT 0
(8) ANL COM
(9) NOT USED
(10) OUT 1
(11)ANL COM
ANALOG
POWER
OUTPUT INPUT
(4) IN 1±
(3) IN 1+
(2) ANL COM
(1) IN 0±
(1) IN 0+
Power Status LED
Door Label
Door
Removable Terminal
Function Label
