FINAL ASSEMBLY INSTRUCTIONS
11
Lowes.com/allenandroth

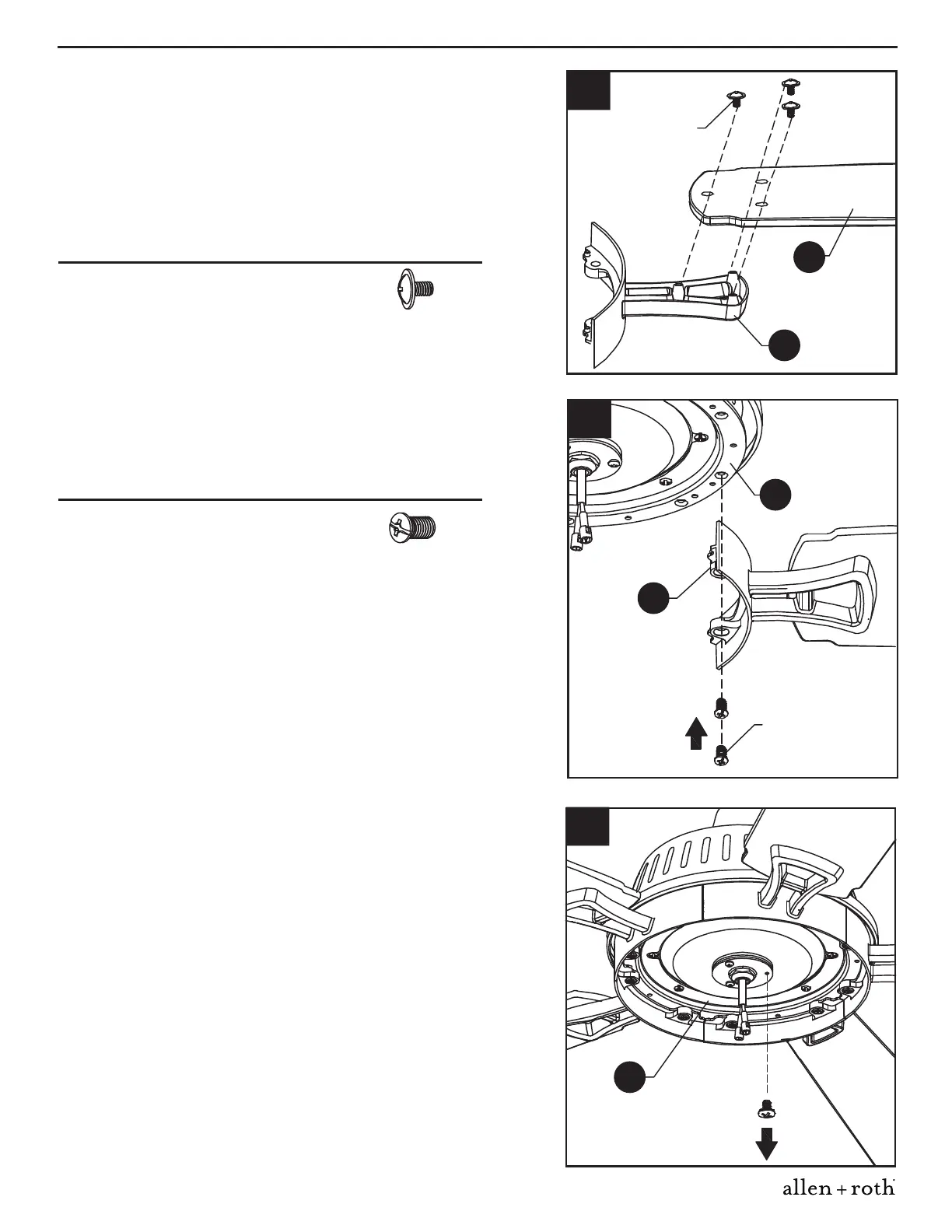

3. Attach blade iron (K) to blade (D) with blade screws.
Do not fully tighten blade screws until each screw
has been started. Then, tighten each blade screw
starting with the center screw. Repeat for remaining
blade irons (K) and blades (D).
3
K
D
4. Attach blade irons (K) to the underside of the motor
assembly (F) with the blade iron screws.
5.
Remove one of the preassembled mounting screw
from the motor assembly (F) and loosen but do not
remove the other two.
Blade Screw
K
F
4
Blade Iron
Screw
F
5
Hardware Used
x 15Blade Screw
Hardware Used
x 10Blade Iron Screw
