ASSEMBLY INSTRUCTIONS

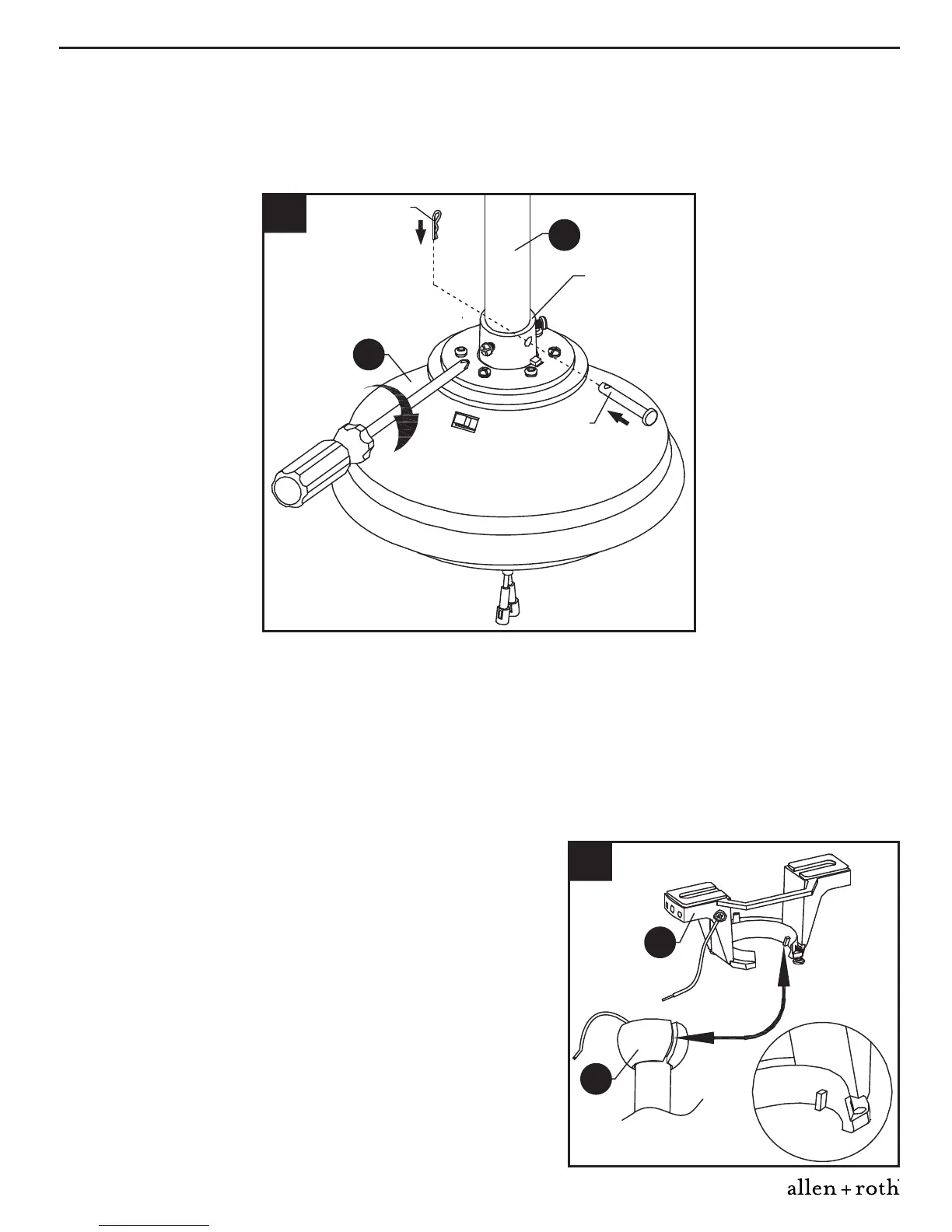

7. Carefully lift the fan and seat the downrod (B)/hanger
ball assembly on the hanger bracket (A). Be sure the
groove in the ball is lined up with the tab on the
hanger bracket (A).
6. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then
secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).
B
A
7
Lowes.com/allenandroth
Hair Pin
Clevis Pin
Coupling
B
F
6
DOWN ROD ASSEMBLY ONLY
DOWN ROD ASSEMBLY ONLY
