Allen + Roth A102002103 - Page 16

16
ASSEMBLY INSTRUCTIONS

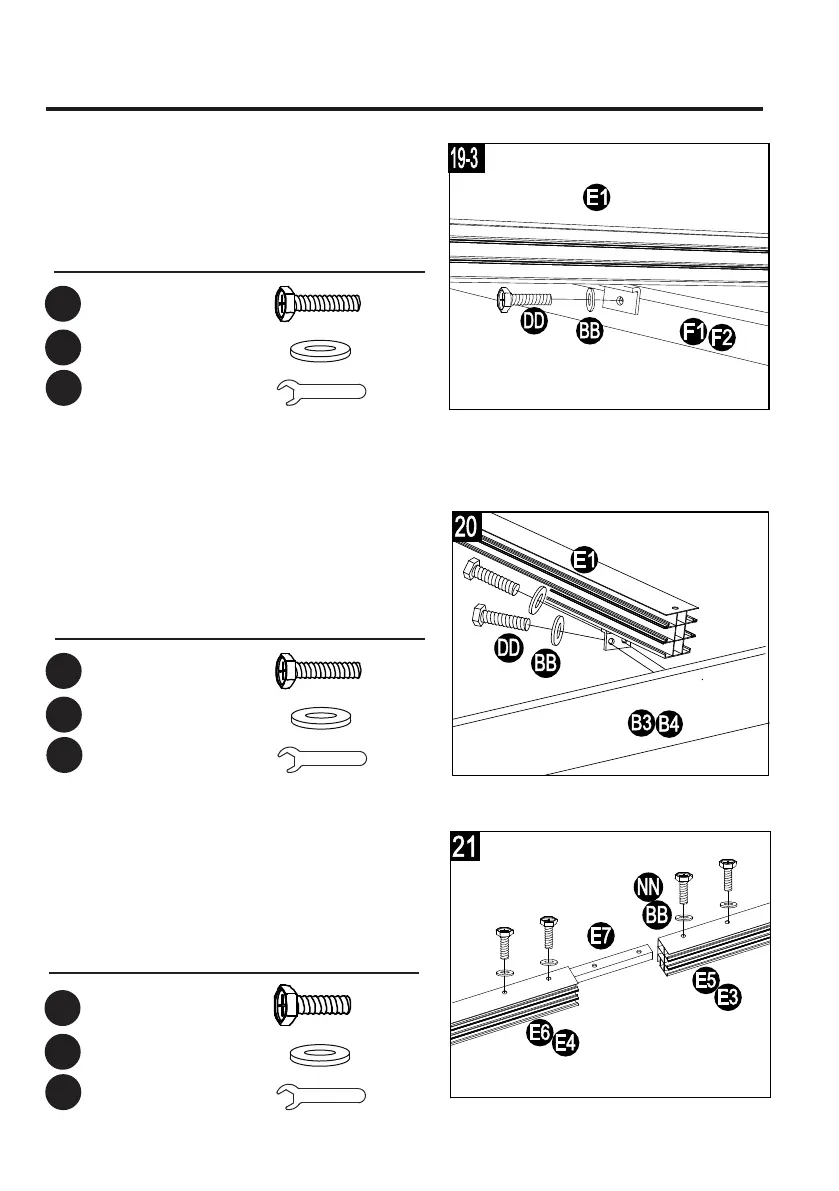

Connect top side beams (E4/E6) to rear
beam top side beams (E3/E5) with beam
connector (E7), using bolts (NN) and flat
washers (BB). Tighten with wrench (Z2).
21.
Hardware Used
x 8
NN
BB
x 8
Z2
x 1
M6 x 15 Bolt
M6 Flat Washer
M6 Wrench
20. Attach top beam (E1) to front beam
(B3/B4) using bolts (DD) and flat
washers (BB). Tighten with wrench
(Z2).
Hardware Used
x 6
DD
BB
x 6
Z2
x 1
M6 x 20 Bolt
M6 Flat Washer
M6 Wrench
19-3.
Attach top beam (E1) to support
beams (F1/F2) using bolts (DD)
and flat washers (BB). Tighten with
wrench (Z2).
Hardware Used
x 2
DD
BB
x2
Z2
x 1
M6 x 20 Bolt
M6 Flat Washer
M6 Wrench
