Allen + Roth A102002103 - Ground Securing; Moving Options for Top PC Panels; Moving Option 1; Moving Option 2

24

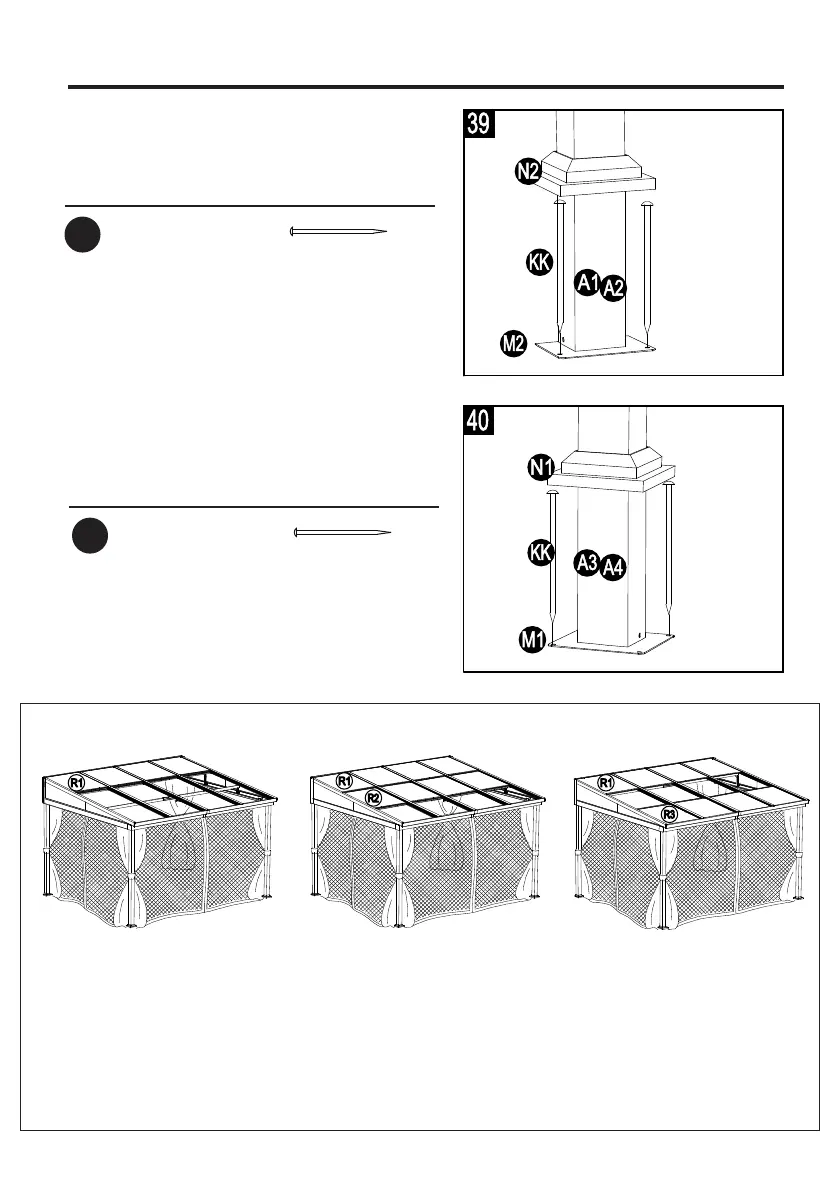

ASSEMBLY INSTRUCTIONS
40.
Secure the gazebo to the ground using
stakes (KK).
Hardware Used
x 4
KK
Φ8*180 Stake
39.
Secure the gazebo to the ground using
stakes (KK).
Hardware Used
x 4
KK
Φ8*180 Stake
Moving option 1: move R3 to
top, under R1 or R2
Moving option 2: move both
R2 and R3 to top, but should
move them separately, they
can’t be moved together
Moving option 3: move R2 to
top, under R1
Moving options for top PC panels
