Allen + Roth A102002103 - Page 8

8

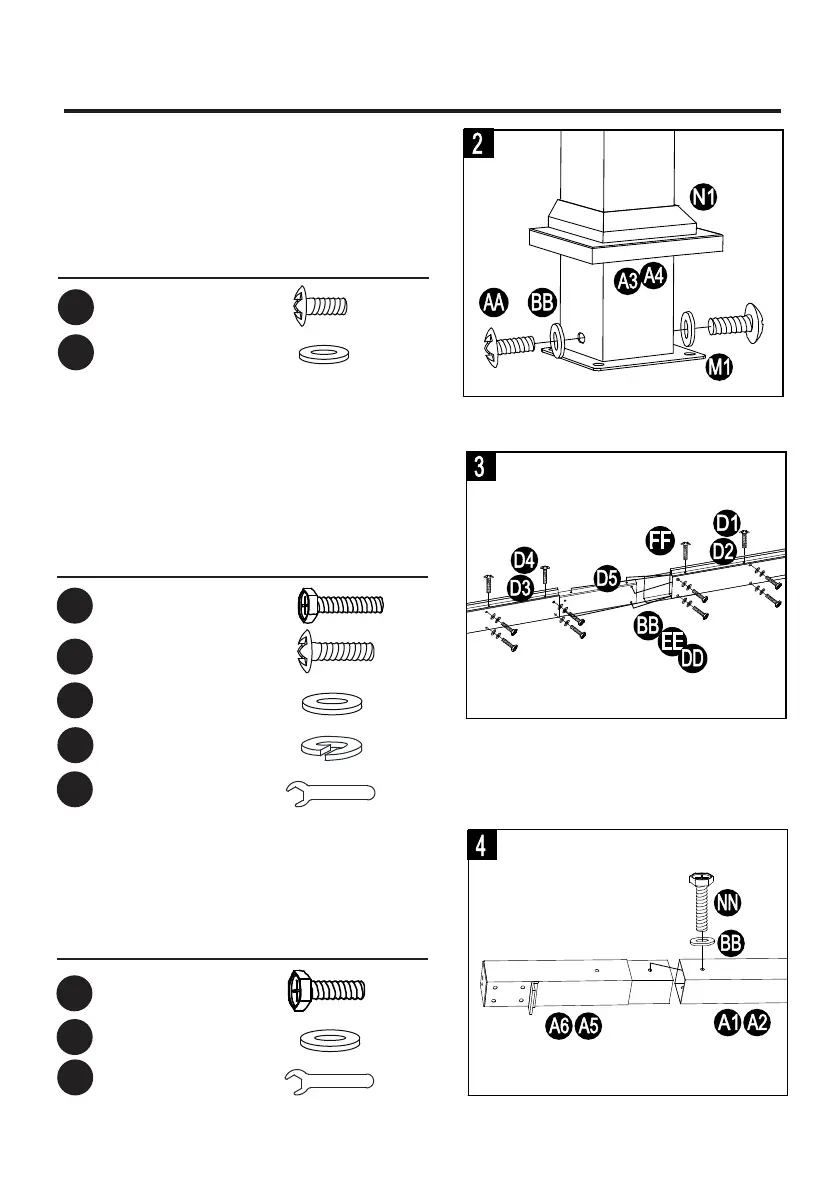

ASSEMBLY INSTRUCTIONS
2. Insert the posts (A
3
/A
4) into the base
cover (N
1), and then install the base
(M1) to the bottoms of posts (A3/A4)
using bolts (AA) and washers (BB).
Hardware Used
x
4
x
4
AA
M6 x 15 Bolt
BB
BB
M6 Flat Washer
4. Insert the posts (A5/A6) into posts (A1/
A2
), using bolts (NN), washers (BB).
Tighten with wrench (Z2).
3. Connect the side beams (D1/D2/
D3/D4) with beam connector (D5) using
bolts (DD/FF), washers (BB) and spring
washers (EE). Tighten with wrench (Z2).
Hardware Used
DD
x
16
x
8
BB
x
16
x
16
EE
FF
Z2
M6 x 20 Bolt
M6 x 20 Bolt
M6 Flat Washer
M6 Spring Washer
M6 Wrench
x 1
Hardware Used
x 2
NN
BB
x 2
Z
2
x 1
M6 x 15 Bolt
M6 Flat Washer
M6 Wrench
