Allen + Roth TPPER2401A - Page 12

12
ASSEMBLY INSTRUCTIONS
AA
AA
II
II
FF
FF
D2
D2
D2
D1
D2
D1
A
A
A
D1
D1
D1

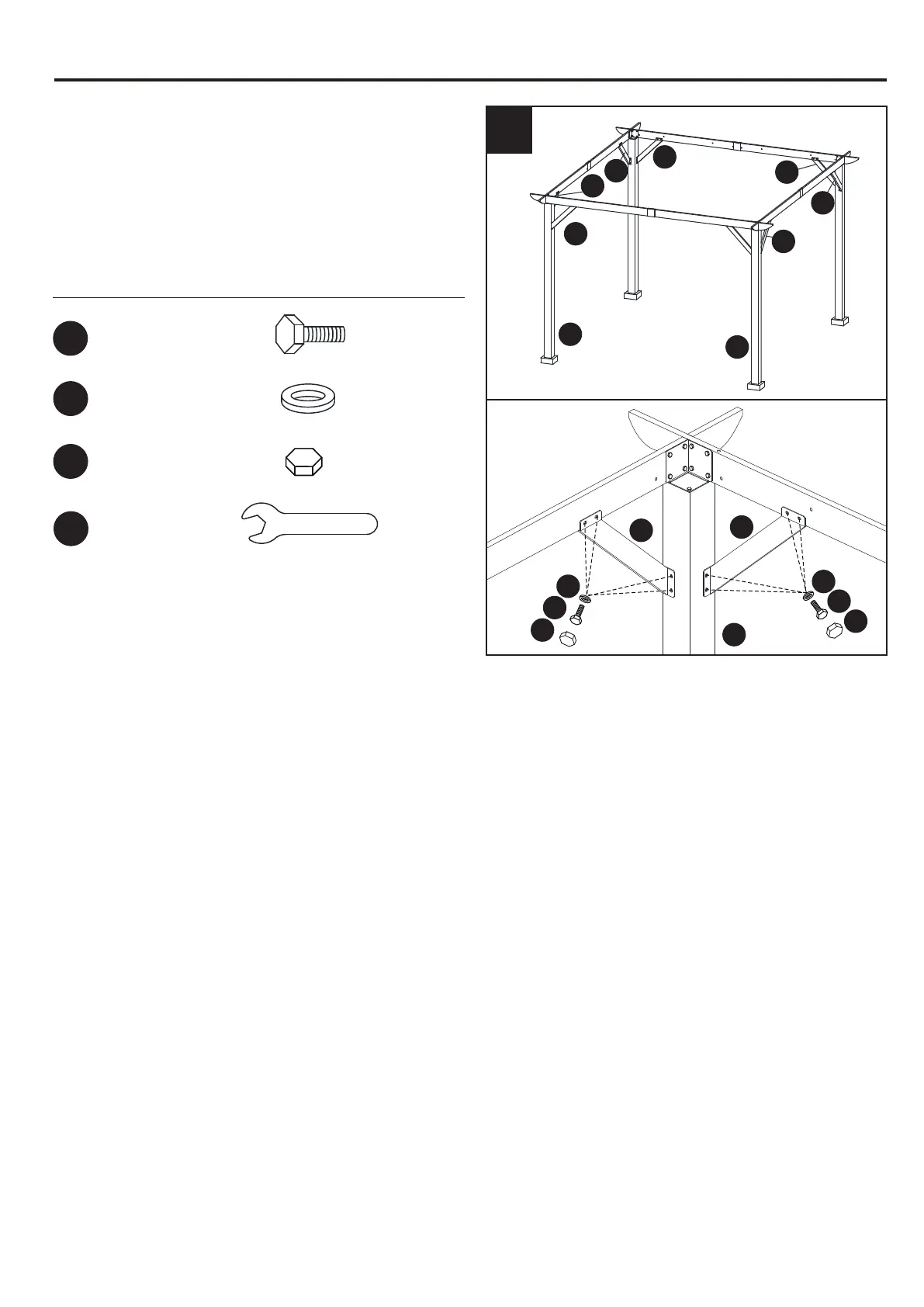

11. Connect the Left Inclined Strut (D1) and Right
Inclined Strut (D2) to the Crossbeam (B1/B2/B3/B4
/C1/C2) and the Post (A) with Bolt (AA) and Flat
Washer (FF). Tighten together with the
Wrench (NN). Place
Cap (II) on the Bolt (AA).
Hardware Used
11
M6 × 15 mm Bolt
X32
X32
X32
Cap
Washer
AA
FF
II
X1
Wrench
NN
