ASSEMBLY INSTRUCTIONS
AA
II
FF
AA
II
FF
H
H
H
H
H
B4
B4
B3
B2
B1
B3
B4

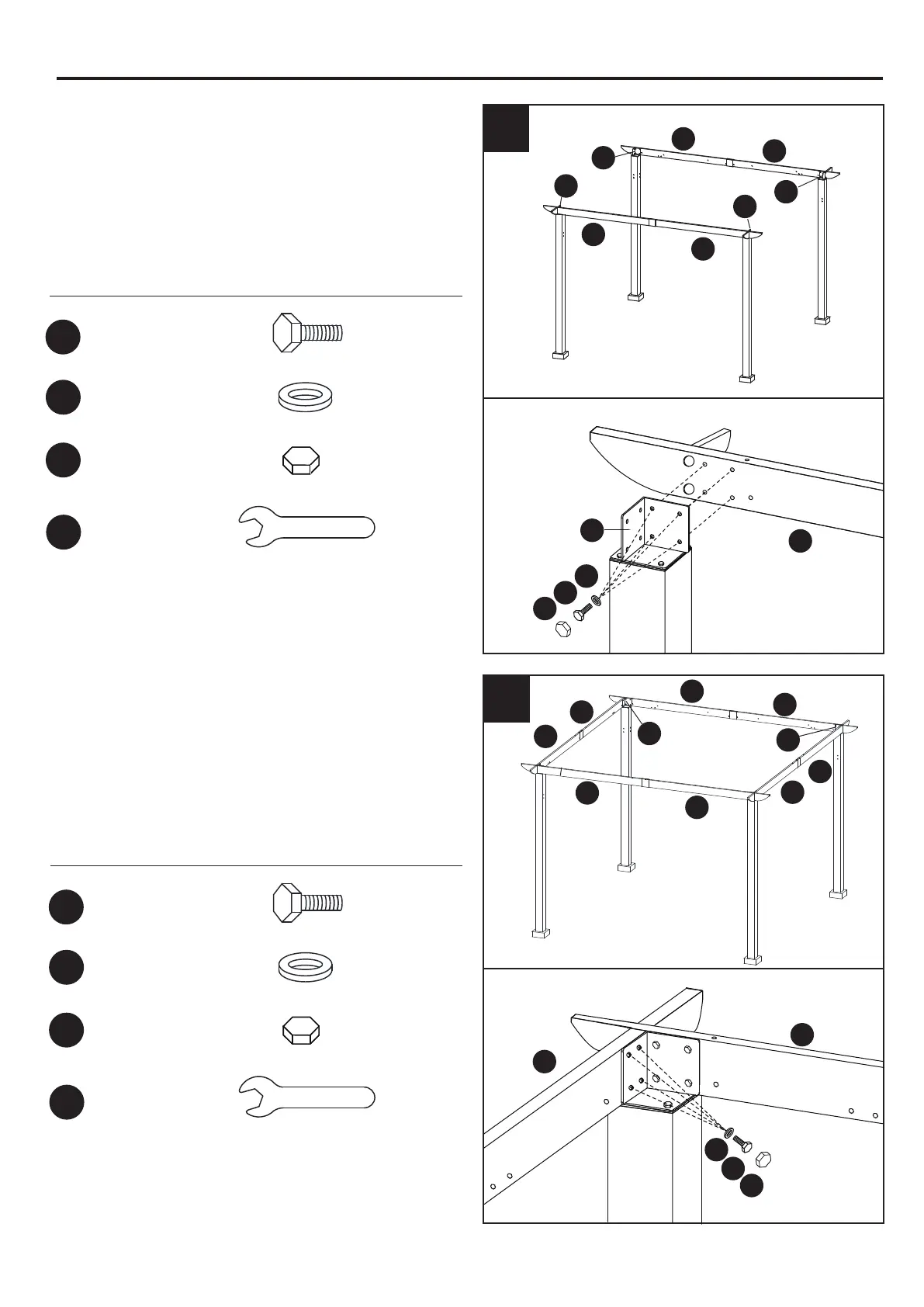

9. Connect the Post Corner (H) to the Crossbeam
(B1/B2/B3/B4) with Bolt (AA) and Flat Washer (FF).
Tighten together with the Wrench (NN). Place
Cap
(II) on the Bolt (AA).
Hardware Used
9
M6 × 15 mm Bolt
X16
X16
X16
Cap
Washer
AA
FF
II
X1
Wrench
NN
H
H
B2
B4
B4
B3
C1
C2
C1
C1
C2
B1
B3
10. Connect the Post Corner (H) to the Crossbeam
(C1/C2) with Bolt (AA) and Flat Washer (FF).
Tighten together with the Wrench (NN). Place Bolt
Cover (II) on the Bolt (AA).
Hardware Used
10
M6 × 15 mm Bolt
X16
X16
X16
Cap
Washer
AA
FF
II
X1
Wrench
NN
