10
ASSEMBLY INSTRUCTIONS
C1
C1
AA
FF
II
AA
II
FF
G1 N2 C2
C1 C2
G1 N2 C2

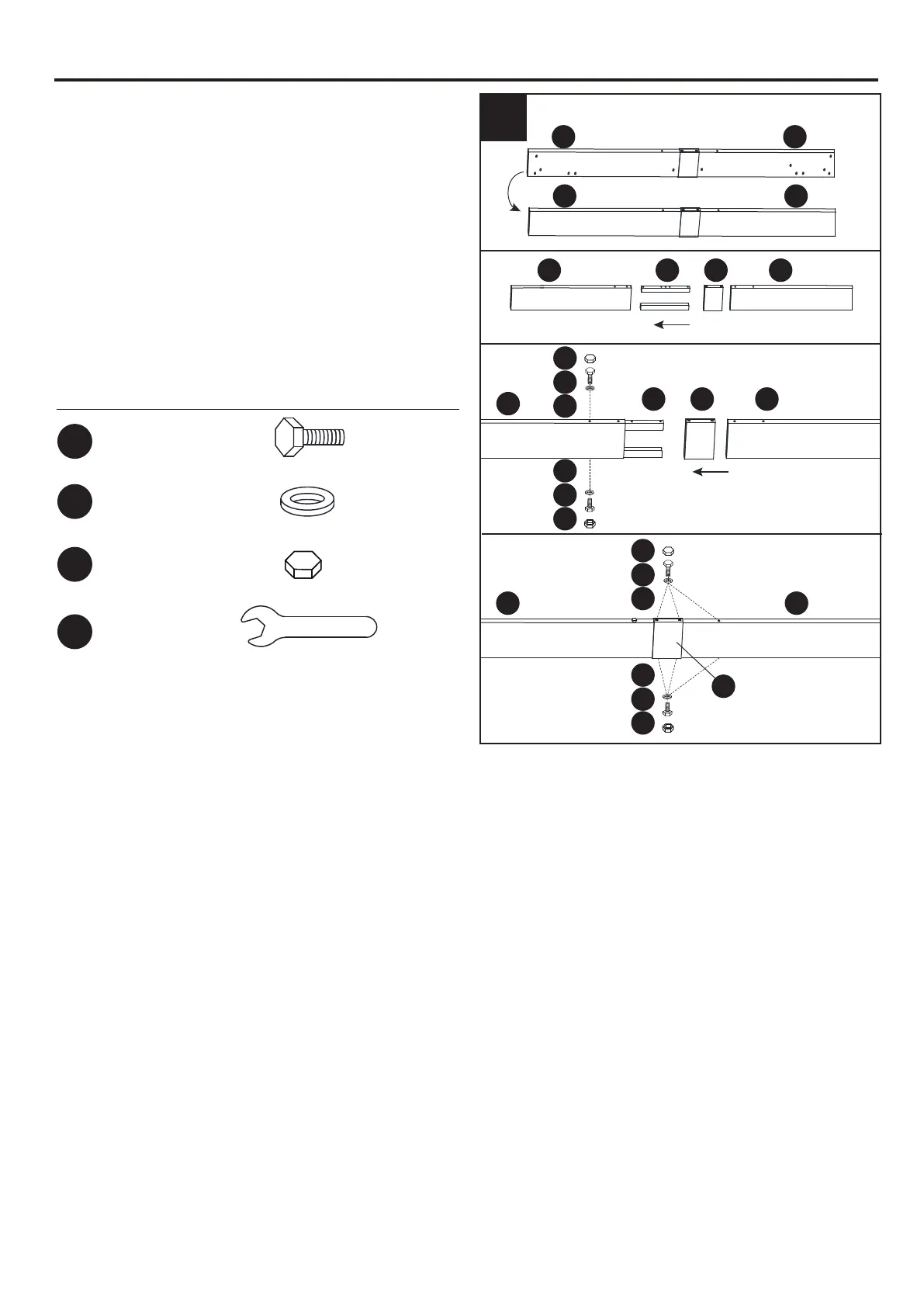

8. Insert the two Crossbeam Connector (G1) into
the Crossbeam Left (C1) and connect them with
Bolt (AA) and Flat
Washer
(FF). Insert the Top
Crossbeam Shield (N2) into the Crossbeam Left
(C1). Connect the Crossbeam Right (C2) / Top
Crossbeam Shield (N2) to the Crossbeam
Connector (G1) with Bolt (AA) and Flat
Washer
(FF). Tighten together with the wrench (NN). Place
Cap (II) on the bolt (AA).
Hardware Used
M6 × 15 mm Bolt
X16
X16
X16
Cap
Washer
AA
FF
II
X1
Wrench
NN
AA
FF
II
8
AA
II
FF
C1 C2
N2
C2 C1
To Next Page
