Allen + Roth TPPER9137 - Assembly Step 1: Base and Posts; Attach Bases and Connectors to Posts

A1
H
I
AA
HH
AA
HH
EE
EE
A2
1 Hardware Used

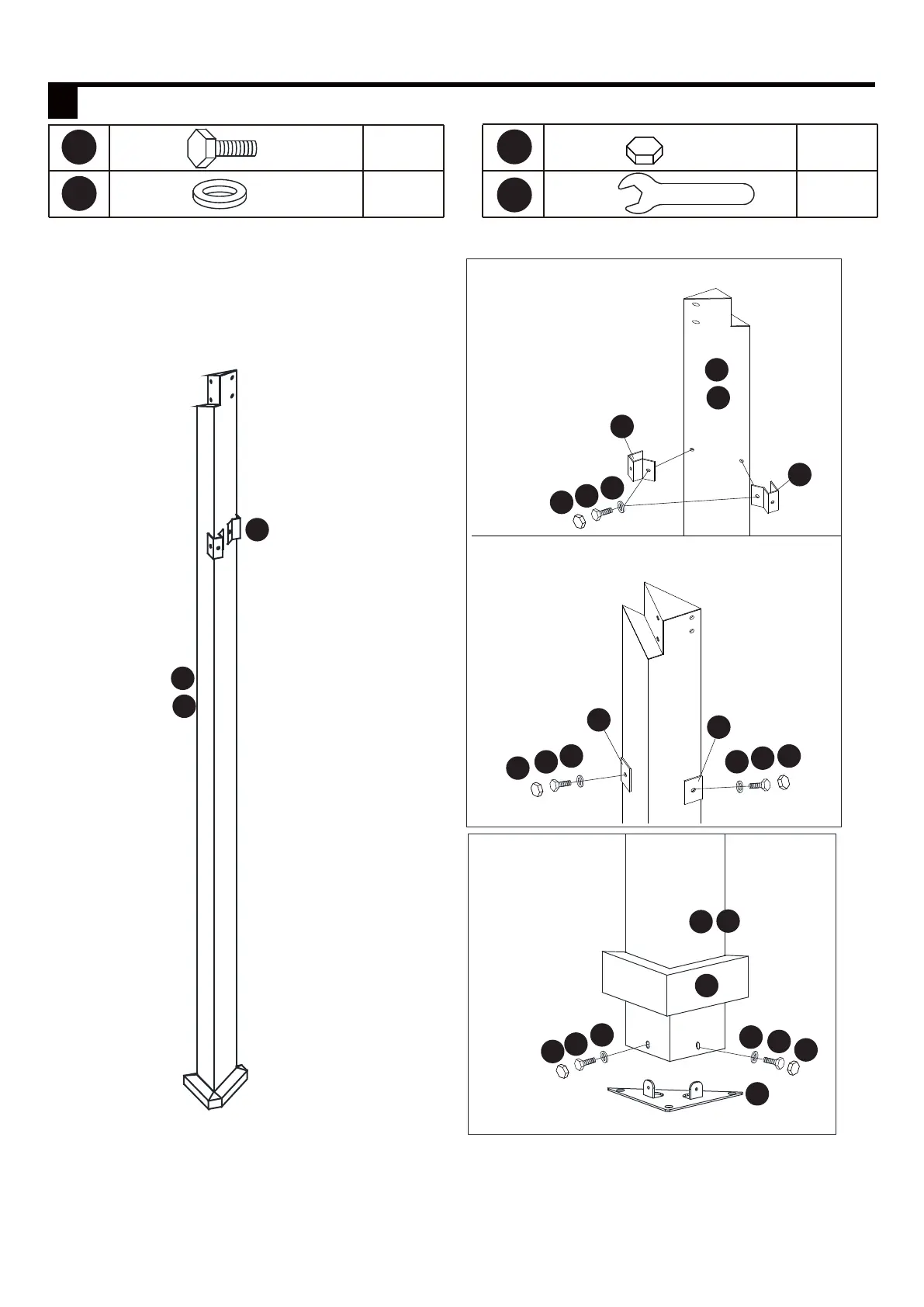

1.1. Insert the posts (A1/A2) into the base cover (H), then attach the bases (I) to the posts (A1/A2)
using bolts (AA) and washers (EE). Tighten with wrench (JJ). Place cap (HH) on the bolt heads.
1.2. Attach the connector (N) to the posts (A1/A2) by using the bolts (AA).
