Allen + Roth TPPER9137 - Assembly Step 4: Arc Beam Assembly; Connect Arc Beams and Ferrules

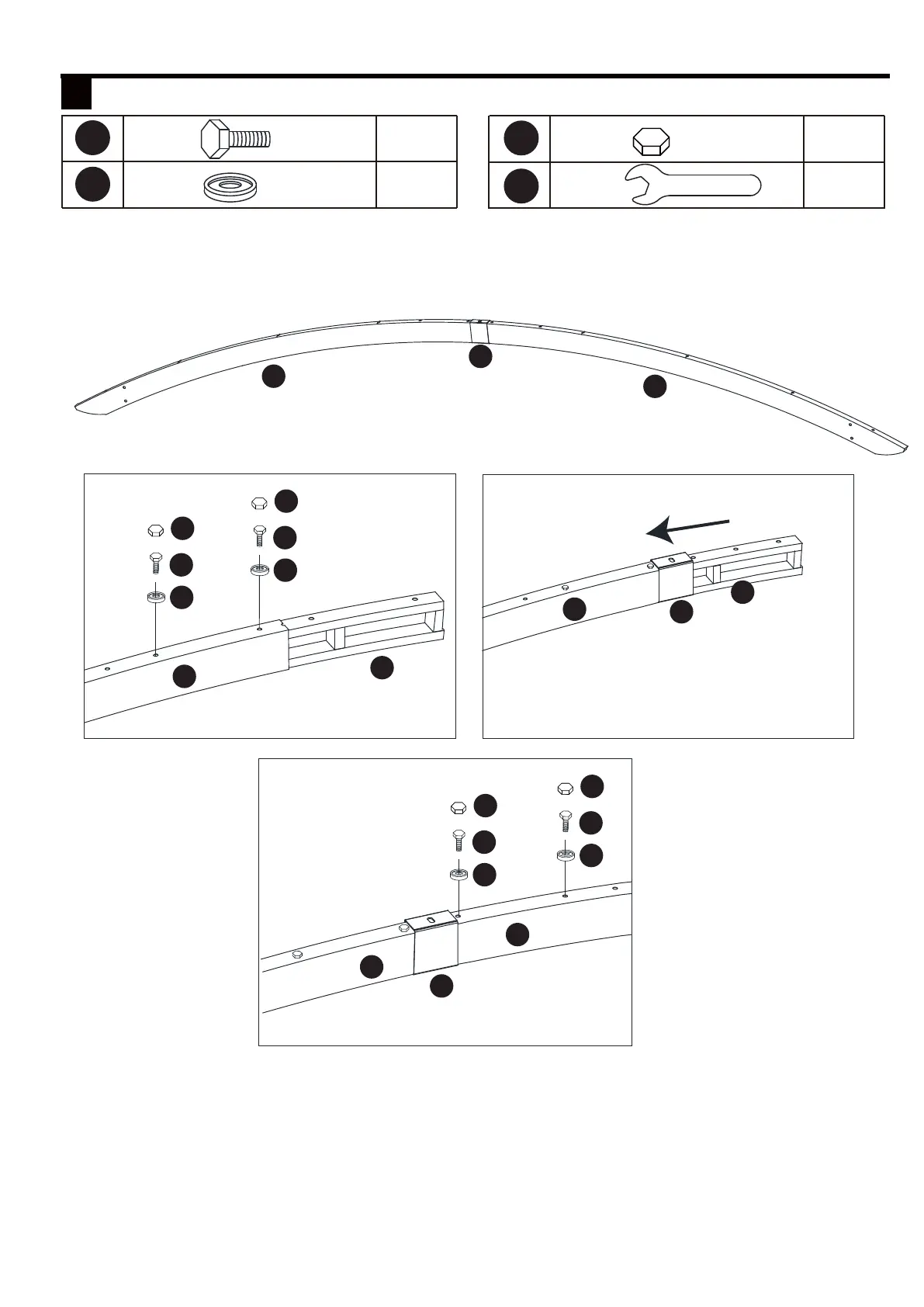

4.1. Insert arc connectors (E2) to the arc beams (B1), secure with bolts (AA) and plastic washers (FF),
tighten with wrench (JJ). Place cap (HH) on the bolt heads.
4.2. Attach the ferrule (F1) to the beam assemblies (B1/E2).
4.3. Attach the arc beams (B2) to the arc beam assemblies (B1/E2/F1) and secure with bolts (AA)
and plastic washers (FF), tighten with wrench (JJ). Place cap (HH) on the bolt heads.
B1
B1
E2
E2
F1
F1
B1
AA
FF
HH
AA
FF
HH
F1
B1
B2
B2
AA
FF
HH
AA
FF
HH
ASSEMBLY INSTRUCTIONS
4 Hardware Used
x8
x8
AA
FF
x1
JJ
x8
HH
