Troubleshooting – B-Control Coin Models
The Display Shows “CANt/LOC” or “SHUT/DOOR”: Flowchart 2 (cont.)

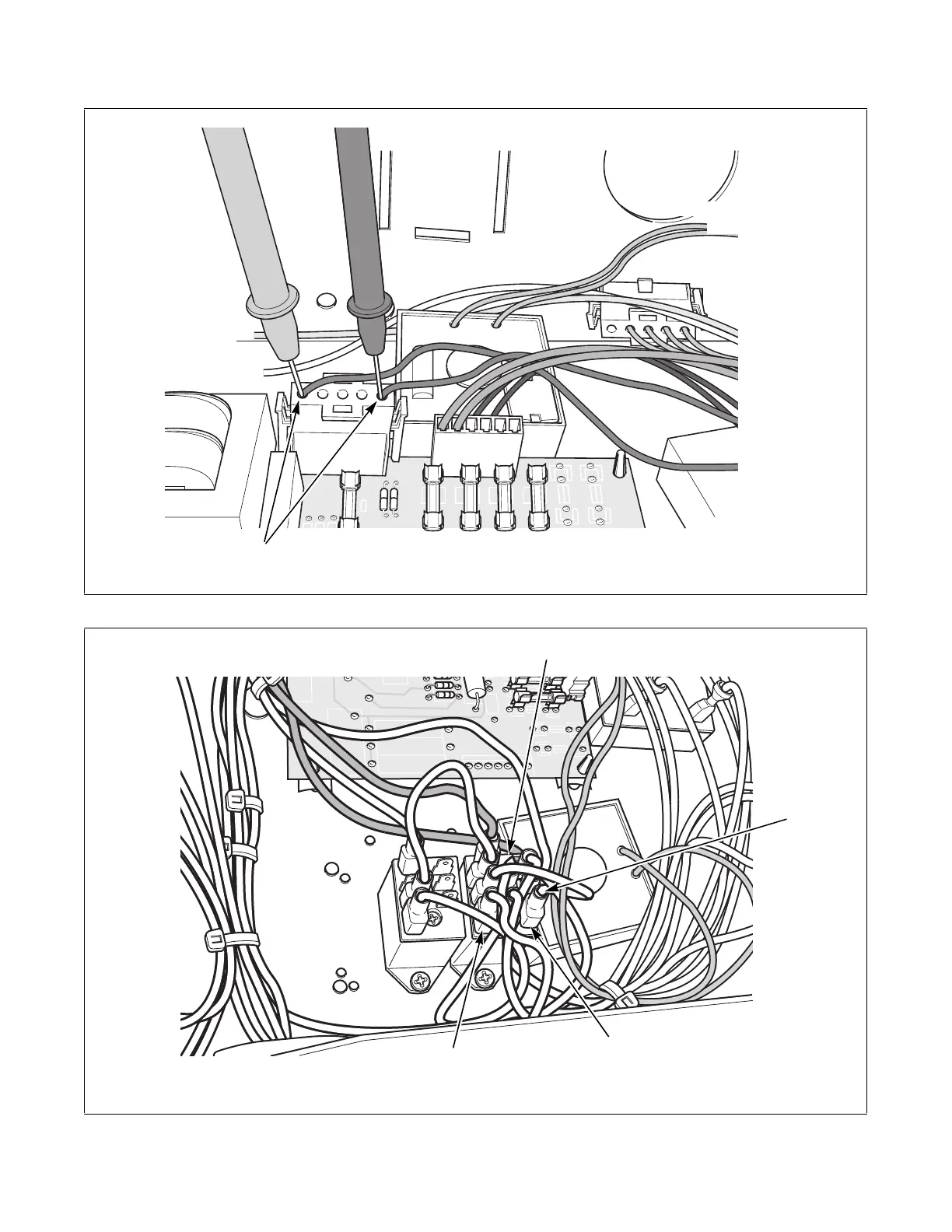

Figure 13 CHM447S
Figure 14 CHM317S
CHM447S
Input and Output
Terminals
CHM317S
Tab 4
Tab 6
Tab 8
Tab 7
