Page 14 | AlliedWare™ OS How To Note: EPSR
Example 2: A Double Ring
Example 2: A Double Ring

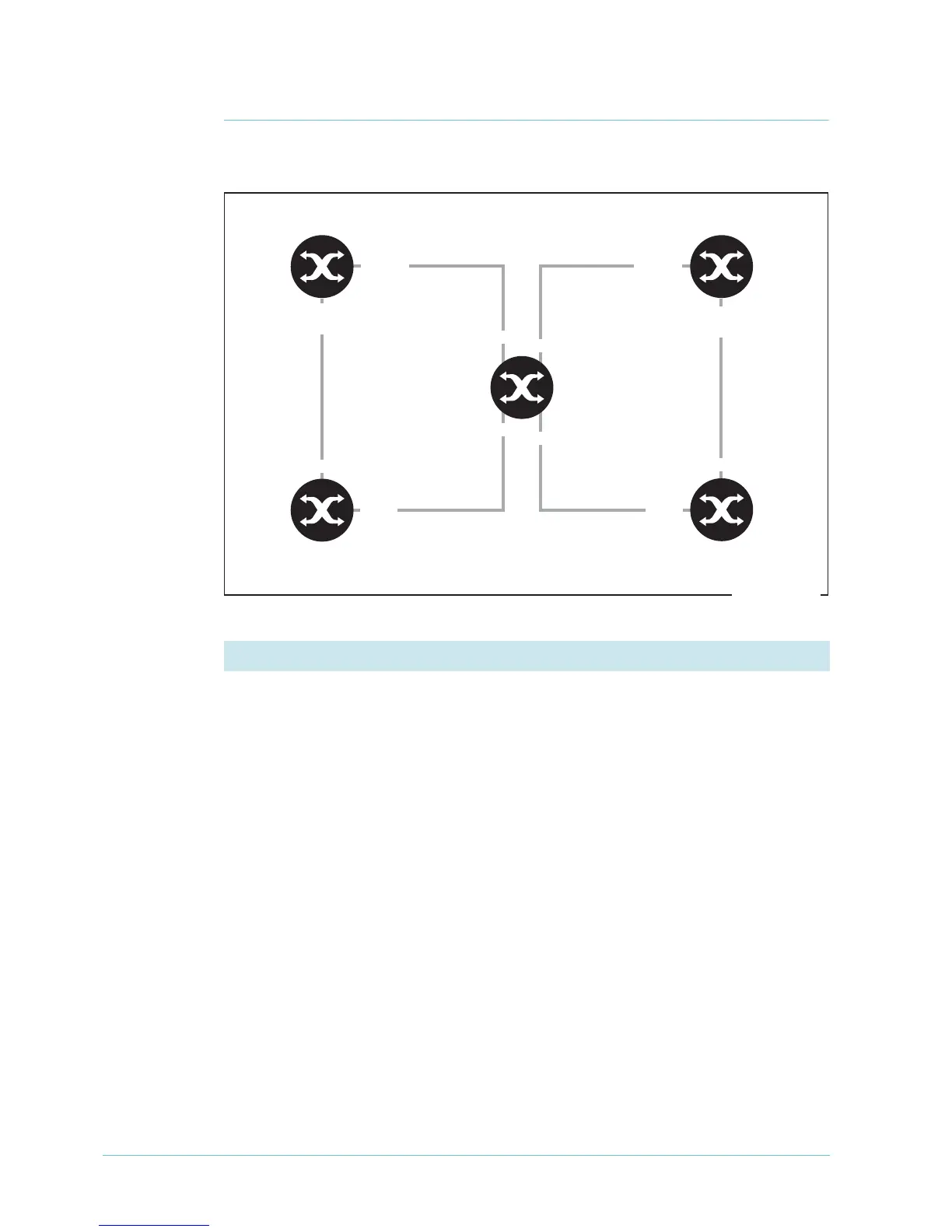

This example adds to the previous ring by making two domains, as shown in the following
diagram.
The master node for domain 1 is the same as in the previous example (except that the
domain has been renamed).
create vlan=vlan1000 vid=1000
add vlan=1000 port=1-2 frame=tagged
create vlan=vlan2 vid=2
add vlan=2 port=1-2 frame=tagged
delete vlan=1 port=1-2
create epsr=domain1 mode=master controlvlan=vlan1000 primaryport=1
add epsr=domain1 datavlan=vlan2
enable epsr=domain1
1. Configure the master node (switch A) for domain 1
Master
Node
(A)
Transit
Node
(D)
Transit
Node
(B)
epsr-example-double-ring
port 2:
secondary
Master
Node
(C)
port 1
Domain 1
control VLAN: 1000
data VLAN: 2
Domain 2
control VLAN: 40
data VLAN: 50
port 2
port 1
port 2
port 1:
primary
port 5:
secondary
port 4:
primary
port 4
port 5
port 4
port 5
Transit
Node
(E)
