Allied 4SCU16LE - 4 SCU16 LE Technical Specifications; Model Number Guide; Physical and Electrical Data

508219-01Issue 2132Page 2 of 43

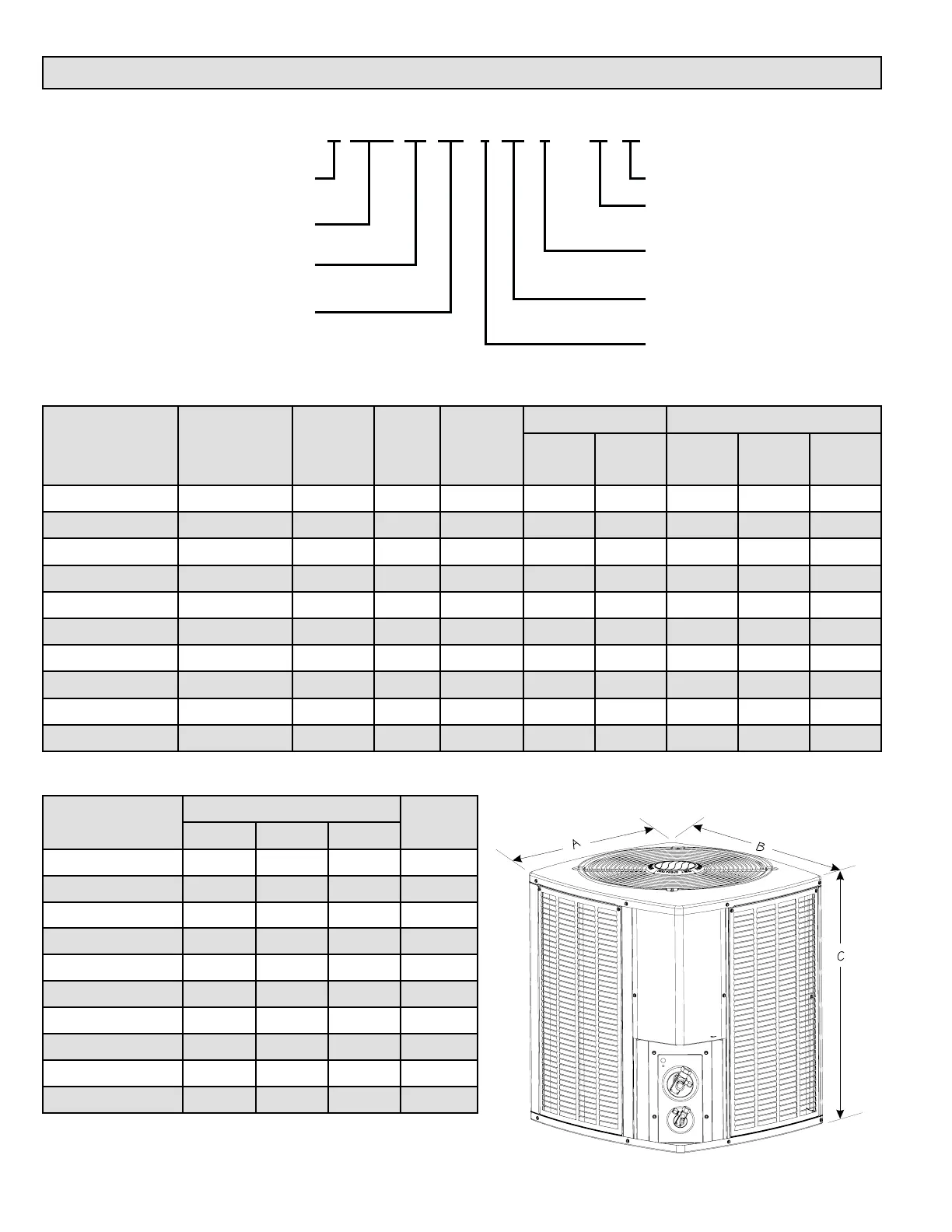

Technical Specications - 4SCU16LE
MODEL NUMBER GUIDE
PHYSICAL AND ELECTRICAL DATA
Model Voltage/Hz/Phase
Voltage
Range
Min.
Circuit
Amp.
Max. Over
Current
Device
(amps)
Compressor Fan Motor
Rated
Load
(amps)
Locked
Rotor
(amps)
Rated
Load
(amps)
Rated HP
Nom.
RPM
4SCU16LE118P-50 208-230/60/1 197-253 11.9 20 9.0 48 0.7 1/10 1075
4SCU16LE124P-50 208-230/60/1 197-253 14.6 25 10.9 52 1.0 1/6 825
4SCU16LE130P-50 208-230/60/1 197-253 17.0 25 12.8 63 1.0 1/6 825
4SCU16LE136P-50 208-230/60/1 197-253 18.0 30 13.6 79 1.0 1/6 825
4SCU16LE141P-50 208-230/60/1 197-253 19.3 30 14.7 75 1.0 1/6 825
4SCU16LE142P-50 208-230/60/1 197-253 23.4 40 17.9 112 1.0 1/6 825
4SCU16LE147P-50 208-230/60/1 197-253 22.9 35 16.9 94 1.8 1/3 825
4SCU16LE148P-50 208-230/60/1 197-253 24.2 40 18.0 94 1.7 1/4 825
4SCU16LE159P-50 208-230/60/1 197-253 28.8 45 20.8 127 2.8 1/3 V Spd
4SCU16LE160P-50 208-230/60/1 197-253 29.6 50 22.2 128 1.8 1/3 825
UNIT DIMENSIONS (IN.)
Model No.
Dimensions
Shipping
Weight
(lbs.)
A - width B - depth C - Height
4SCU16LE118P-50 24.75 26.75 29.75 155
4SCU16LE124P-50 29.38 31.25 29.75 171
4SCU16LE130P-50 29.38 31.25 37.75 187
4SCU16LE136P-50 29.38 31.25 29.75 205
4SCU16LE141P-50 29.38 31.25 37.75 227
4SCU16LE142P-50 29.38 31.25 37.75 234
4SCU16LE147P-50 35.75 37.75 33.75 272
4SCU16LE148P-50 29.38 31.25 37.75 255
4SCU16LE159P-50 35.75 37.75 43.75 284
4SCU16LE160P-50 35.75 37.75 43.75 284
Note:
Weights listed are unit weights with packaging
Dimensions listed are unit sizes w/o packaging
Minor Revision Code
Major Revision Code
50 = Omniguard
®
Electrical
P - 208 - 230v/60hz/1Ph
Tonnage
18, 24, 30, 36, 41, 42, 47, 48, 59, 60
Region Restriction
1 = all Regions
Refrigerant
4 = R410A
SCU
Split Air Conditioner
SEER
16
Tier
LE = Louvered Enhanced
4 SCU 16 LE 1 24 P - 50 A
