Allied 795 - Assembly

36
Assembly
Assembly - 795 Loader

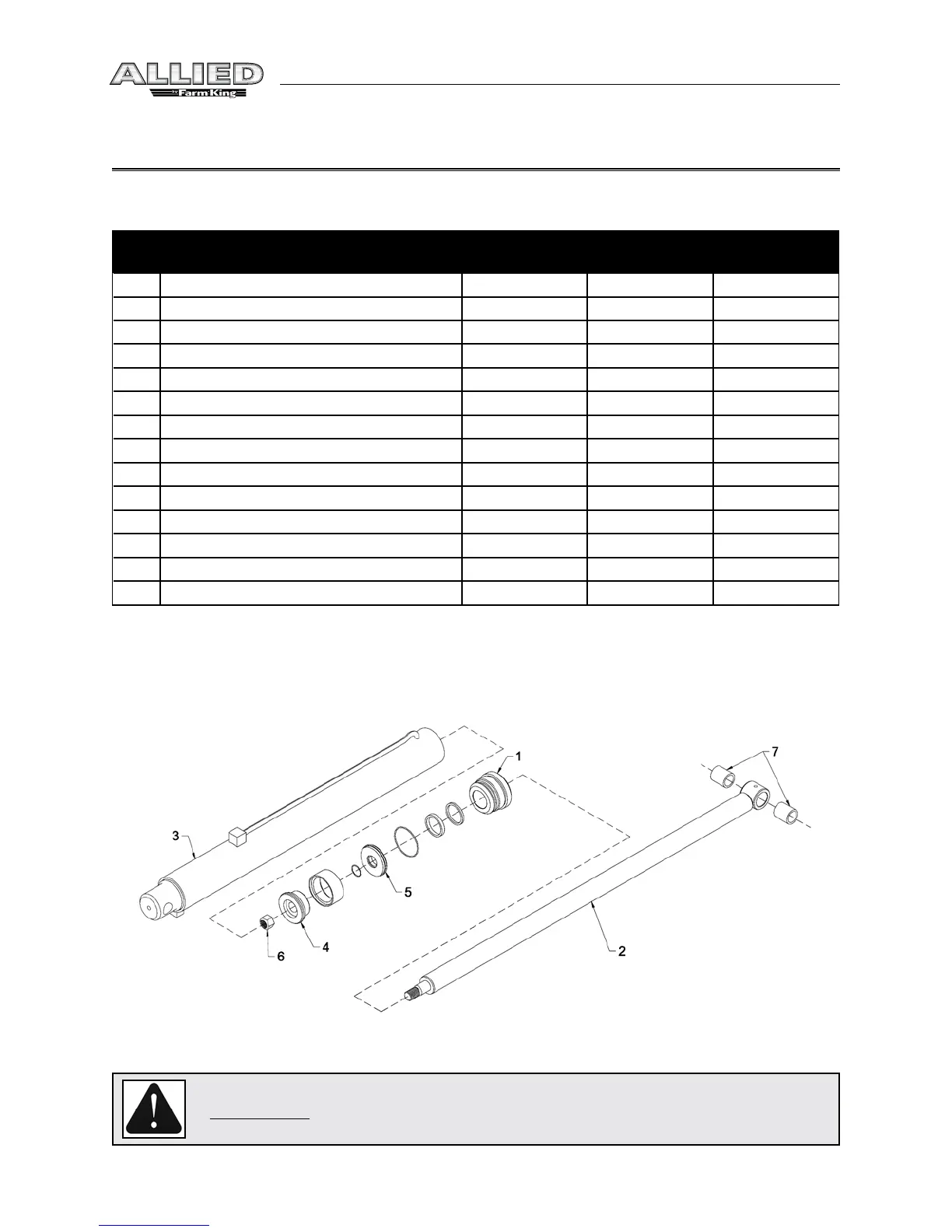

Hydraulic Cylinder Assembly
Item Description
Bucket
Cylinders
TSL Bucket
Cylinders
Lift
Cylinders
Diameter 3.00" 3.00" 3.00"
Length of Stroke 20.50" 22.00" 30.00"
Retracted Length 35.38" 51.75" 41.50"
Extended Length 55.88" 73.75" 71.50"
Cylinder Assembly 24309 24708 24314
Seal Kit X1656 X1424 X1424
Shaft Diameter 1.50" 1.75" 1.75"
1 Head Plate 24656 24606 24606
2 Shaft Weldment 112865 113928 112873
3 Cylinder Tube Weld't 24409 24713 24313
4 Piston Half (wide) 112862 112862 112862
5 Piston Half (narrow) 112863 112863 112863
6 Self-Locking Nut 810457 810457 810457
7 Shaft Bushing 113766 113578 113766
1. Bucket cylinder shown.
2. All cylinder seals are contained in corresponding seal kit.
CAUTION
Maximum pressure - 2750 psi
