* Blower on time will be 30 seconds after flame is sensed. Blower off time will depend on “OFF TIME” setting.

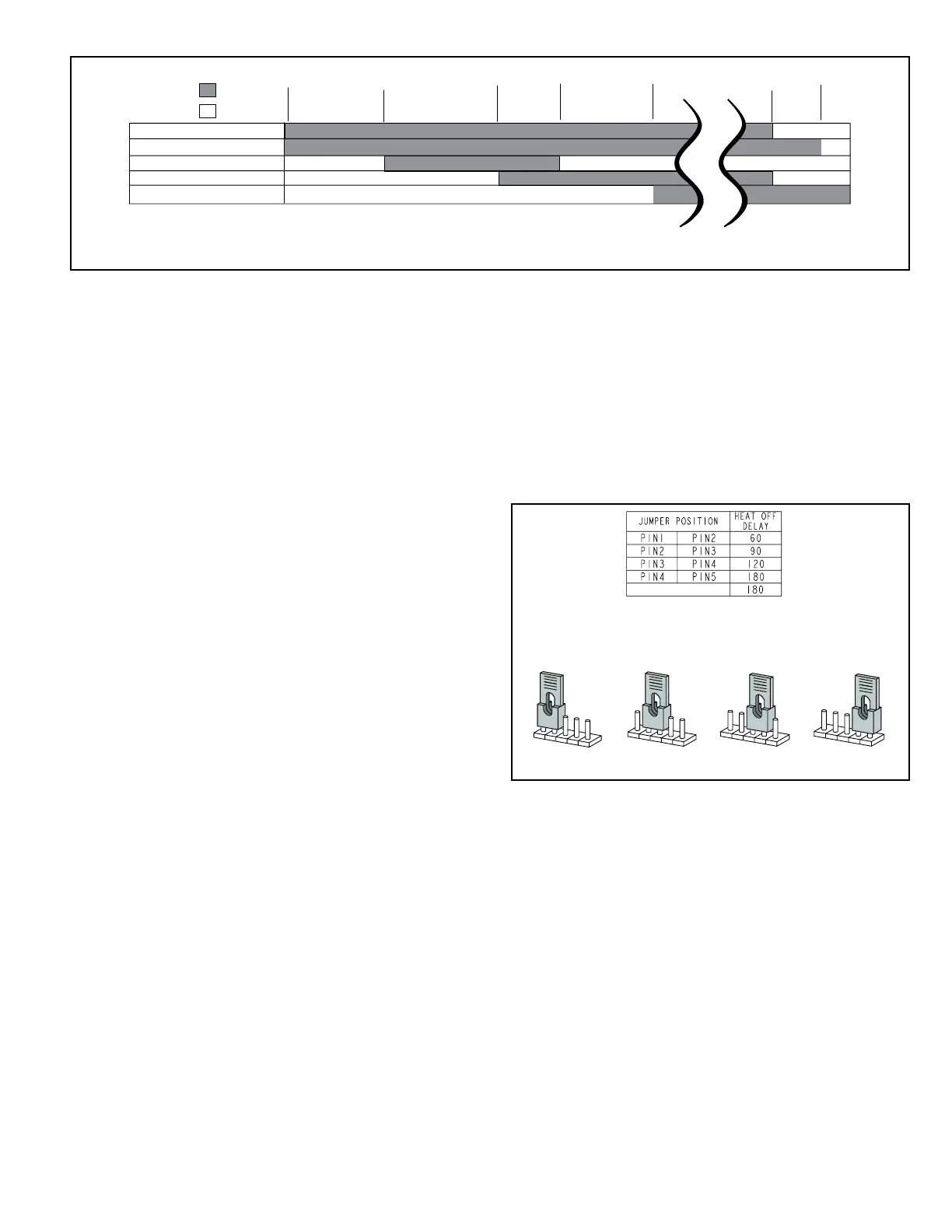

Figure 4. Electronic Ignition
Fan Time Control
Heating Fan On Time
The fan on time of 30 seconds is not adjustable.
Heating Fan O Time
Fan o󰀨 time (time that the blower operates after the heat
demand has been satised) can be adjusted by moving
the jumper to a di󰀨erent setting. The unit is shipped with
a factory fan o󰀨 setting of 90 seconds. For customized
comfort, monitor the supply air temperature once the heat
demand is satised. Note the supply air temperature at the
instant the blower is de-energized.
Adjust the fan-o󰀨 delay to achieve a supply air temperature
between 90° - 110° at the instant the blower is de-energized.
(Longer delay times allow for lower air temperature, shorter
delay times allow for higher air temperature). See Figure 5.
Cooling Fan On Time
The fan on time is 2 seconds and is not adjustable.
Cooling Fan O Time
The control has a 45 second fan o󰀨 delay after cooling
demand has been met. This delay is factory set and not
adjustable.
To adjust fan-off timing, reposition jumper across pins to
achieve desired setting.
NO JUMPER
60 90
120
180
60 90
120
180
60 90
120
180
60 90
120
180
60 Second
off Time
90 Second
off Time
120 Second
off Time
180 Second
off Time
Figure 5. Heat Fan O󰀨 Time in Seconds
