507270-03 Page 35 of 60Issue 1621
Do not use copper tubing or existing copper condensate
lines for drain line.
CAUTION
Condensate line must slope downward away from the trap
to drain. If drain level is above condensate trap, condensate
pump must be used. Condensate drain line should be routed
within the conditioned space to avoid freezing of condensate
and blockage of drain line. If this is not possible, a heat
cable kit may be used on the condensate trap and line.
Heating cable kit is available in various lengths; 6 ft. (1.8
m) - kit no. 26K68; 24 ft. (7.3 m) - kit no. 26K69; and 50 ft.
(15.2 m) - kit no. 26K70.

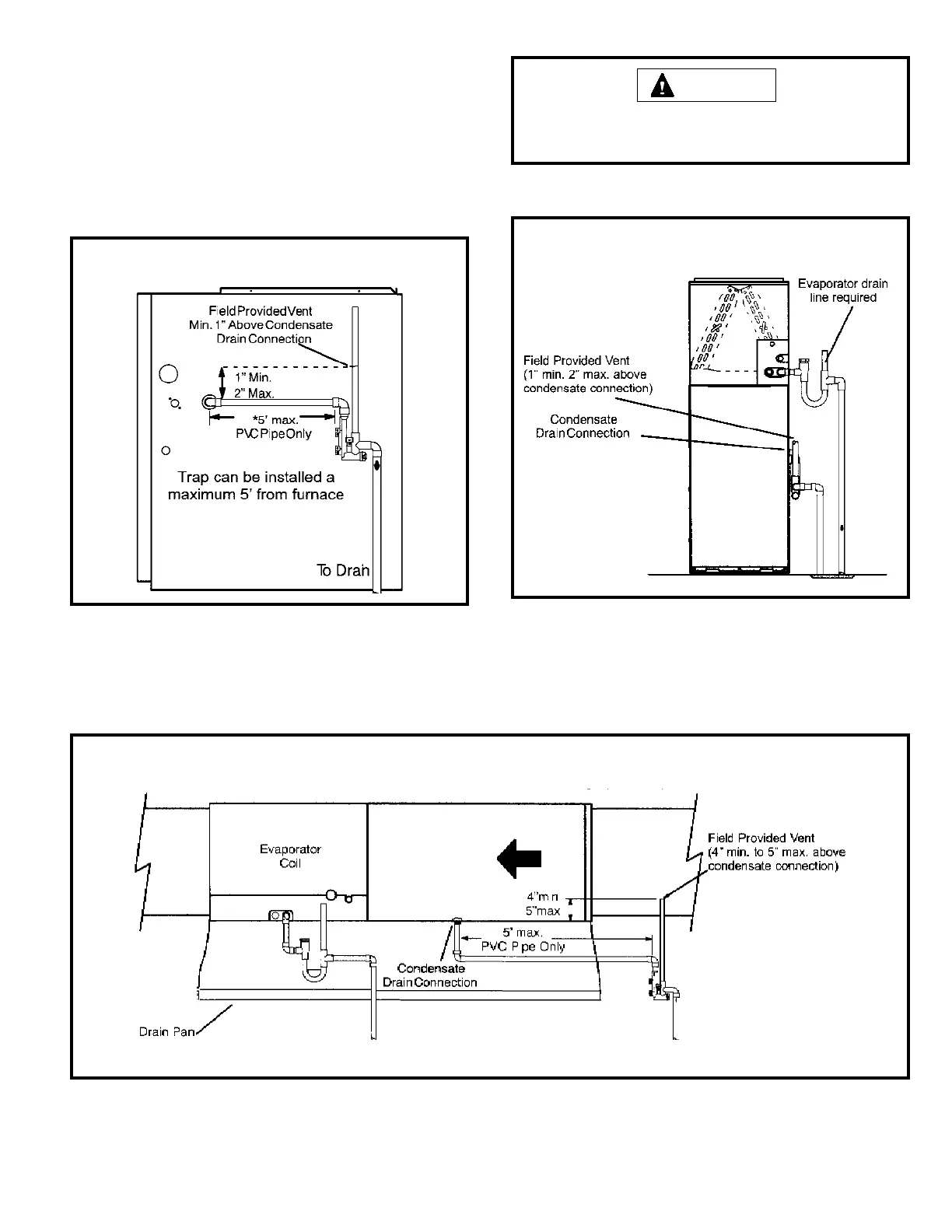

Figure 50
Unit with Cooling Coil
Figure 49
Condensate Trap Locations
(Unit shown in upow position with remote trap)
Figure 51
Condensate Trap Locations
(Unit shown in horizontal right-hand discharge position)
* Piping from furnace must slope down a minimum of 1/4” per ft. toward trap.
