Allied A96UH1E - Condensate Drain Configurations; Figure 55. Condensate Trap Locations; Figure 56. Unit with Cooling Coil Using Separate Drain; Figure 57. Evaporator Coil Using a Common Drain

508297-01Page 36 of 57 Issue 2219

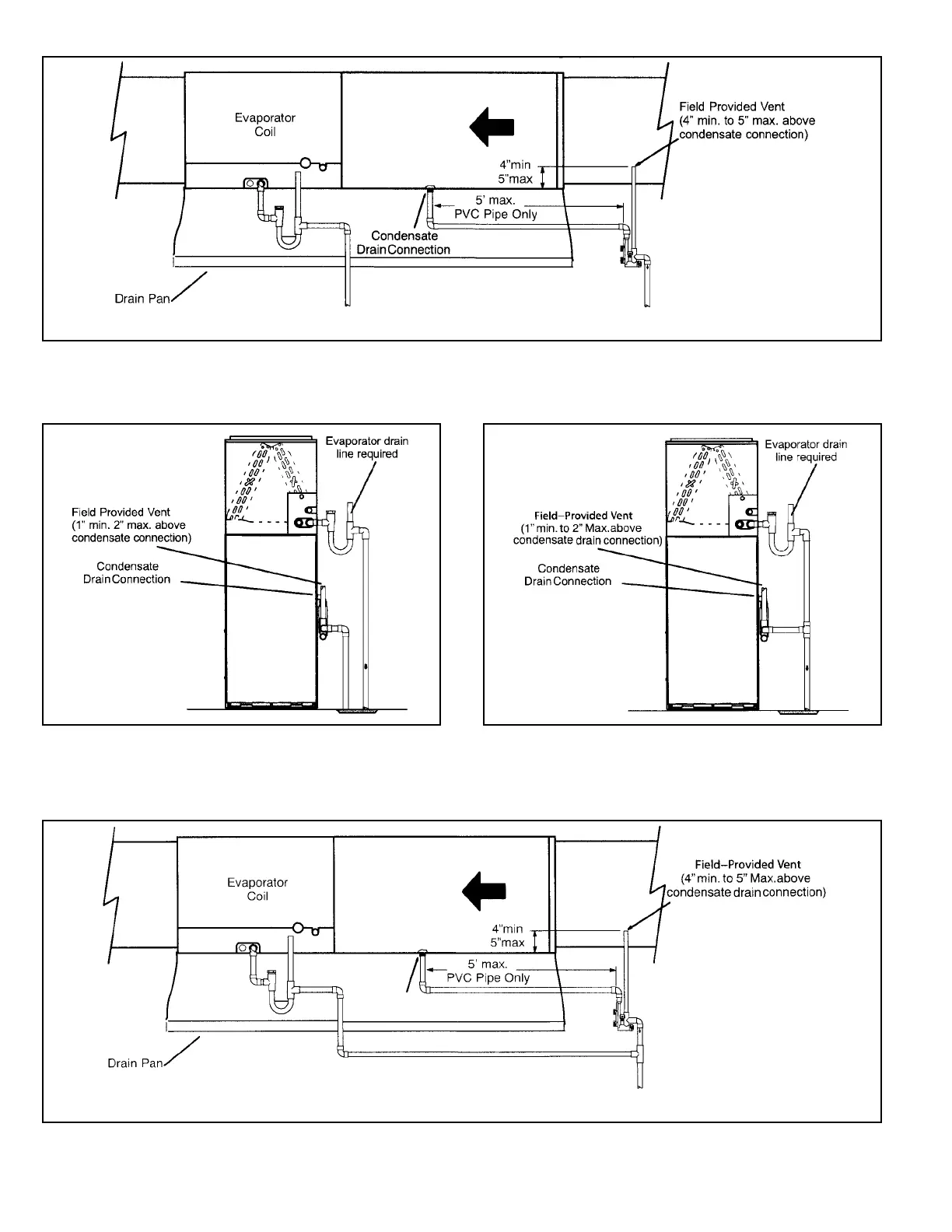

Figure 55. Condensate Trap Locations
* Piping from furnace must slope down a minimum of 1/4” per ft. toward trap.
Figure 56. Unit with Cooling Coil Using Separate
Drain
Figure 57. Evaporator Coil Using a Common Drain
Figure 58. Evaporator Coil Using a Common Drain
Piping from furnace and evaporator coil must slope down a minimum 1/4” per ft. toward trap.
