42
14.0 Technical Information –[cont’d]
Table 14.2
AR110C AR120B
A
inch 88.8 97.4
[mm] [2256] [2473]
B
inch 62.3 72.2
[mm] [1583] [1835]
C
inch 14.2 16.14
[mm] [360] [410]
D
inch 20.1 20.1
[mm] [510] [510]
E
inch 22.4 22.4
[mm] [570] [570]
F
inch 15.7 18.11
[mm] [400] [460]
G
inch 4.33 4.72
[mm] [110] [120]
Mounting
Family
MR MR

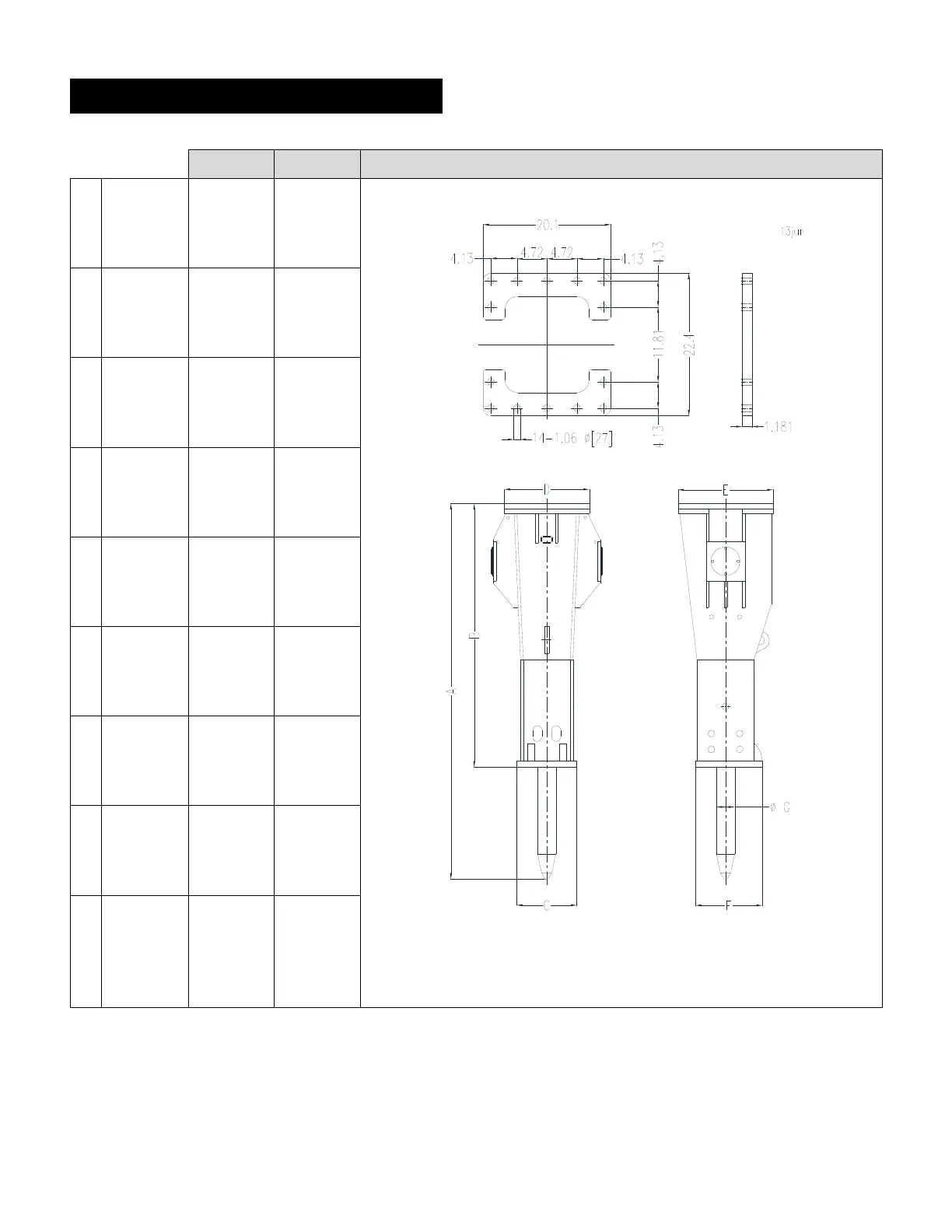

Figure 14-2: Standard Dimensions – Model AR110C and AR120B
