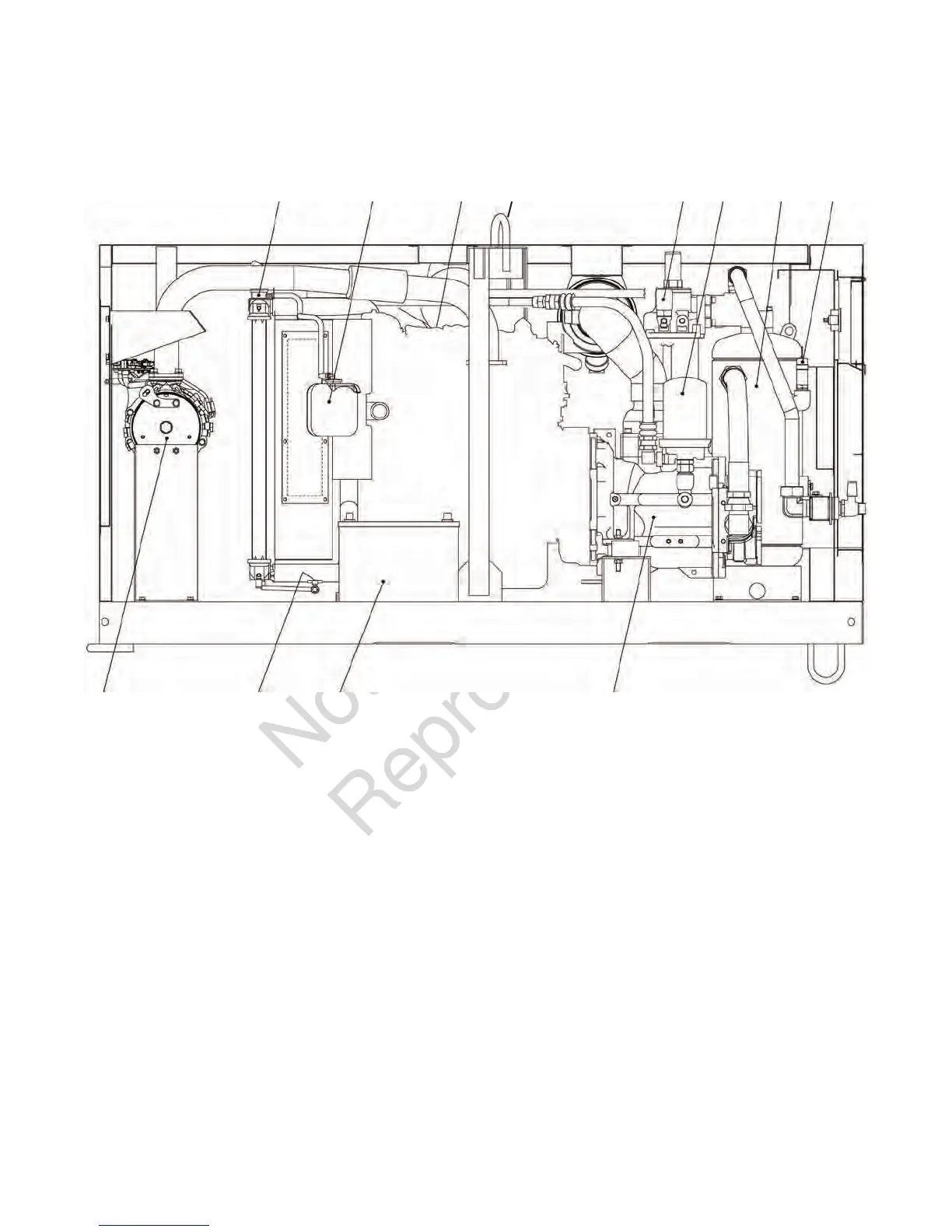

A - Radiator — Cools engine.
B - Reserve Tank — Collects engine coolant
overflow.
C - Engine — Powers compressor.
D - Lifting Bail — For lifting unit.
E - Solenoid Valve — Reduces load at start-up.
F - Compressor Oil Filter — Filters impurities from
compressor oil.
G - Separator receiver tank — Filters impurities in
fuel oil and separates water from fuel.
H - Safety Valve — Releases compressed air to
atmosphere when rated pressure is exceeded.
I - Compressor air-end — Compresses air.
J - Battery — Supplies power to start engine.
K - Radiator Drain Valve — Drains engine coolant.
L - DPF (Diesel Particulate Filter) — Removes
harmful components contained in exhaust gas.
