SeeTransportingandOperationfor detailed information on
each feature / control.

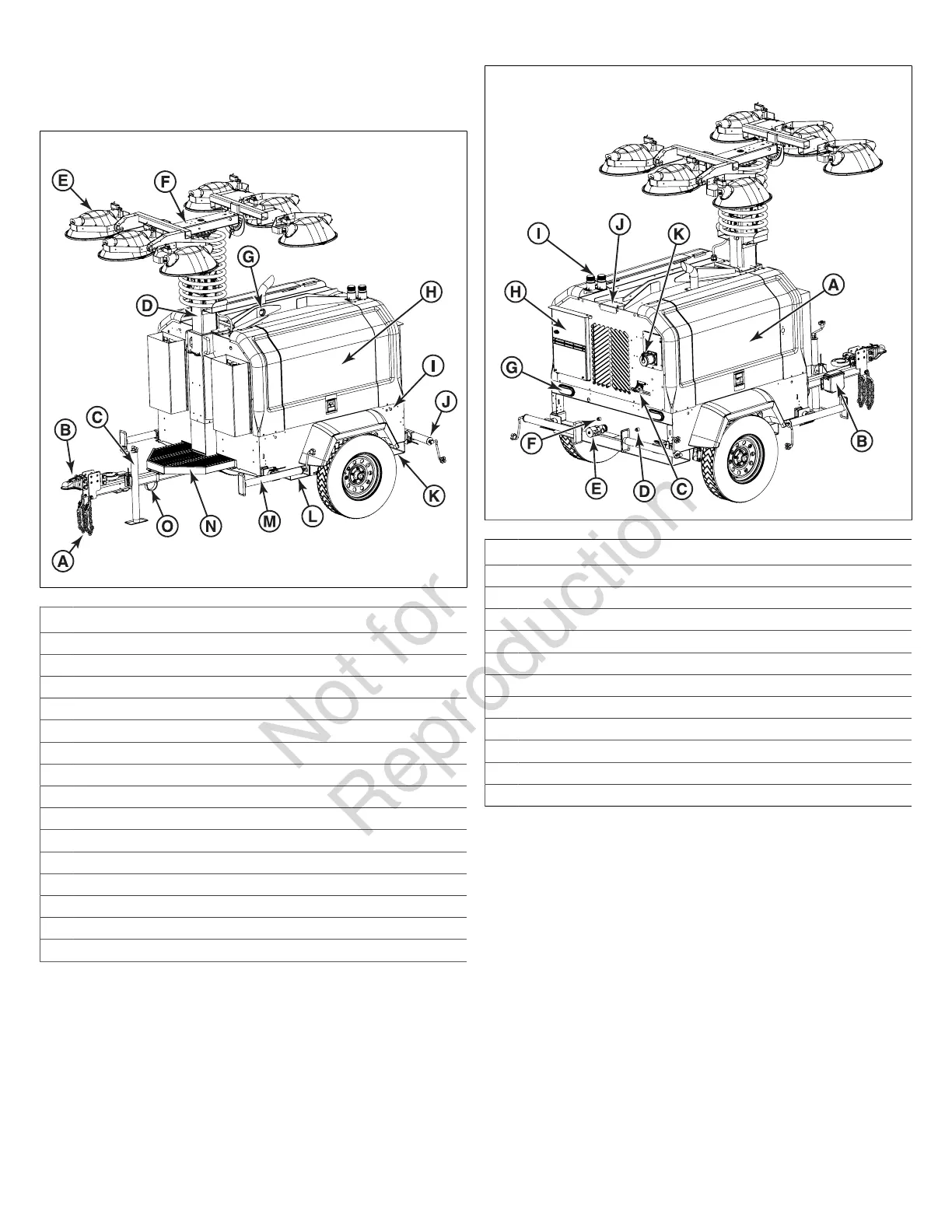

Front
1
Ref Description
A Safety Chains (2)
B Trailer Coupler / Lunette Ring
C Tongue Jack
D Hydraulic Light Tower
E Light Assembly (4 or 6, depending on model)
F Light Bar
G Lifting Eye
H Engine Compartment Access Door
I Ground Lug
J Rear Outrigger & Stabilizer Jack (each side)
K Rear Forklift Pocket / Tie Down Point (each side)
L Front Forklift Pocket (each side)
M Front Outrigger & Stabilizer Jack (each side)
N Step Plate
O Front Tie Down Loop
Rear
2
Ref Description
A Engine Compartment Access Door
B Breakaway Kit
C License Bracket / Marker Light
D Engine Oil Drain
E Fluid Containment Drain
F Engine Coolant Drain
G Tail Light (2)
H Control Panel Access Door
I Low Fuel Strobe Light (Select models only)
J Radiator Access Door
K RV Outlet (optional)
Control Panel
