6-1622245 rev.3 23/12/2016
Compatible from firmware version BIOS1BRT01
5. Remote control learning
5.1 Learning of one transmitter
A transmitter is memorized a key at a time: The 1
st
memorized key performs the OPEN function, the 2
nd
key performs CLOSE function, the 3
rd
key
performs the STEP by STEP function (opening and closing of the gate) and the 4
th
key performs the partial opening.
The control unit exits from the learning phase if no new key or transmitter command is given in 10 seconds.
The learning procedure is the following:

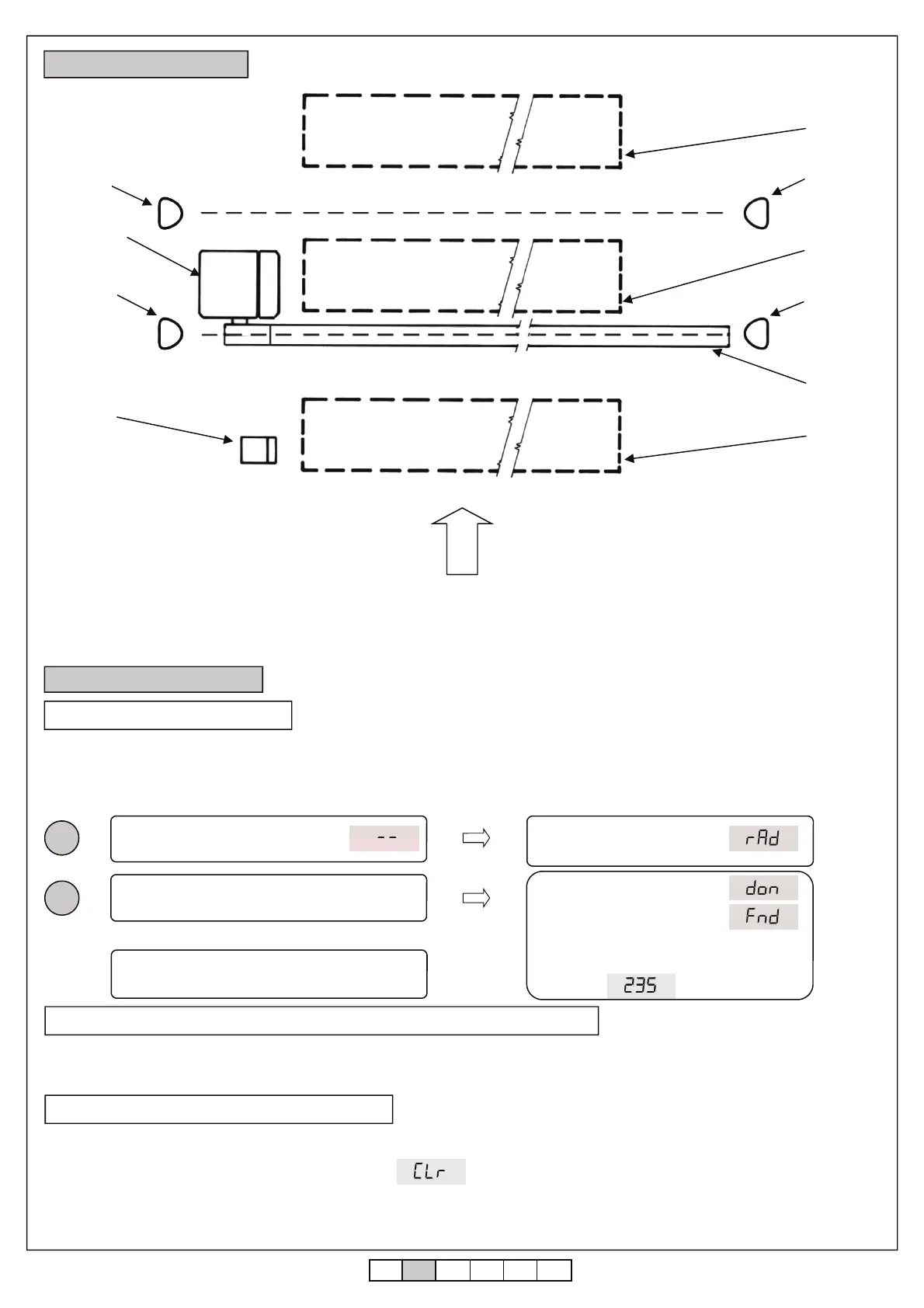

4. Installation sample
Photocell
Photocell
Barrier BRT
Command
device
Photocell
Photocell
Opening
loop
Zone loop
Closing
loop
Safety edge
Press one key of the transmitter
On the display will appear
and the flashing light lights on
Make sure that the board is out of any
menus, press the button UP[+]
On the display will appear .
If the transmitter was already
memorized will appear .
After 2 seconds the display will show the
memory location of the memorized transmitter,
for example
If you want to memorize another key or a new
transmitter repeat the procedure
4.2 Learning with the hidden key of an already memorized transmitter
With the hidden key of a transmitter it is possible to enter the learning phase in order to memorize new keys or new transmitters.
With the automation still, with the aid of a clip press the hidden button of an already memorized transmitter, the flashing light lights on, now it is
possible to memorize new keys or transmitters.
4.3 Cancellation of one transmitter
1
2
Enter the learning phase with the UP[+] button or with the hidden key of a memorized transmitter (see 5.1 or 5.2).
Press in the same time the hidden key and 1
st
key of the transmitter that you want to cancel.
The flashing light bilnks 4 times and on the display will appear
