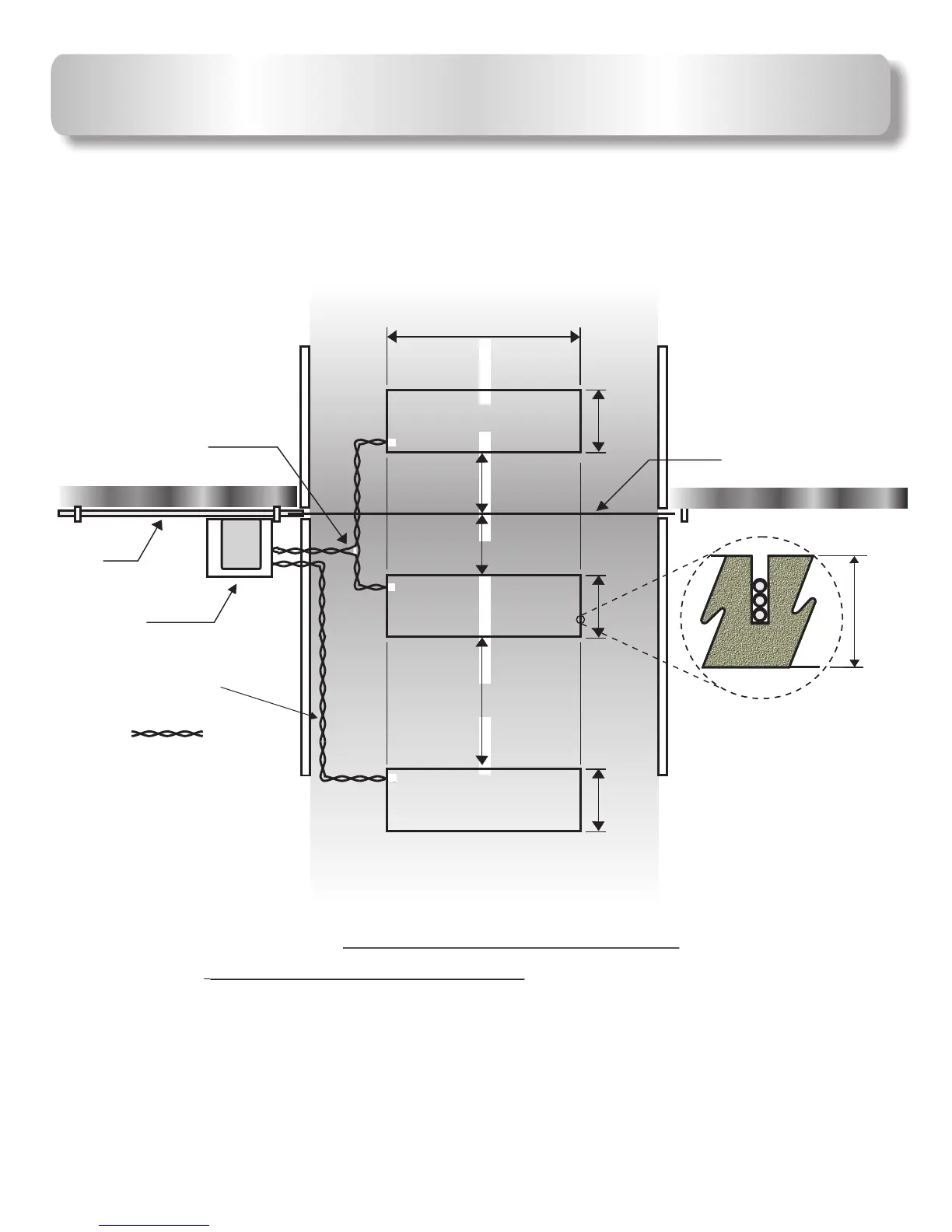

ALLOMATIC SL-90DC - TYPICAL LOOP LAYOUT

1/4 IN1/4 IN
1 1/2 IN
SAFETY LOOP
WHEN USED
EXIT LOOP
4 FT 4 FT
8 FT
8 FT
4 FT4 FT
4 FT
GATE OPERATOR
GATE
GATE TRACK
TWISTED 6 TURNS
PER FOOT
WIRED IN SERIES
This is a normal loop layout. Remember when connecting to an All-O-Matic
circuit board you use the normally closed contacts for your safety loop
detector and normally open contacts from the exit loop. You must twist
your wires from your exit point of the saw cut all the way to the circuit
board, no exceptions.
OUT
SAFETY LOOP
TYPICAL LOOP LAYOUT
10
