Allstar LP1000 - Leader Exploded View & Parts List

23
ITEM
#
PART
#
DESCRIPTION QTY
18 106430 Bolt, 5/8-18 x 4L 2 EA
19 104395 Pulley, Idler, UHMW, 3.5 OD 2 EA
20 010172 1/2 HP Motor 1 EA
21 010213 Motor Pulley 1 EA
22 006030 Screw, HHCS, 5/16-18 x 1, ZI 2 EA
23 010444 Handy Box, 4 x 4 1 EA
24a 111885 Box Cover, 4 x 4, Duplex, Raised 1 EA
25 111244 Frame, Leader 1 EA
26 110103 Control Box Cover 1 EA
27 110001 Motor Control Board (Not Shown) 1 EA
28 110101 Control Box Assembly, Leader 1 EA
not shown
110132 Power Switch/Outlet Combo 1 EA
not shown
005244 Transformer,115-24V,40 VA 1 EA
not shown
102776 Cover Lock (Not Shown) 1 EA
not shown
103647 Sign, Gate, Warning/OSHA 1 EA
not shown
103671 Sign, Gate, Warning/OSHA/Clear 2 EA
not shown
110136 Installation & Owner’s Manual 1 EA
24b 111886 Box Cover, 4 x 2, Duplex, Raised 1 EA

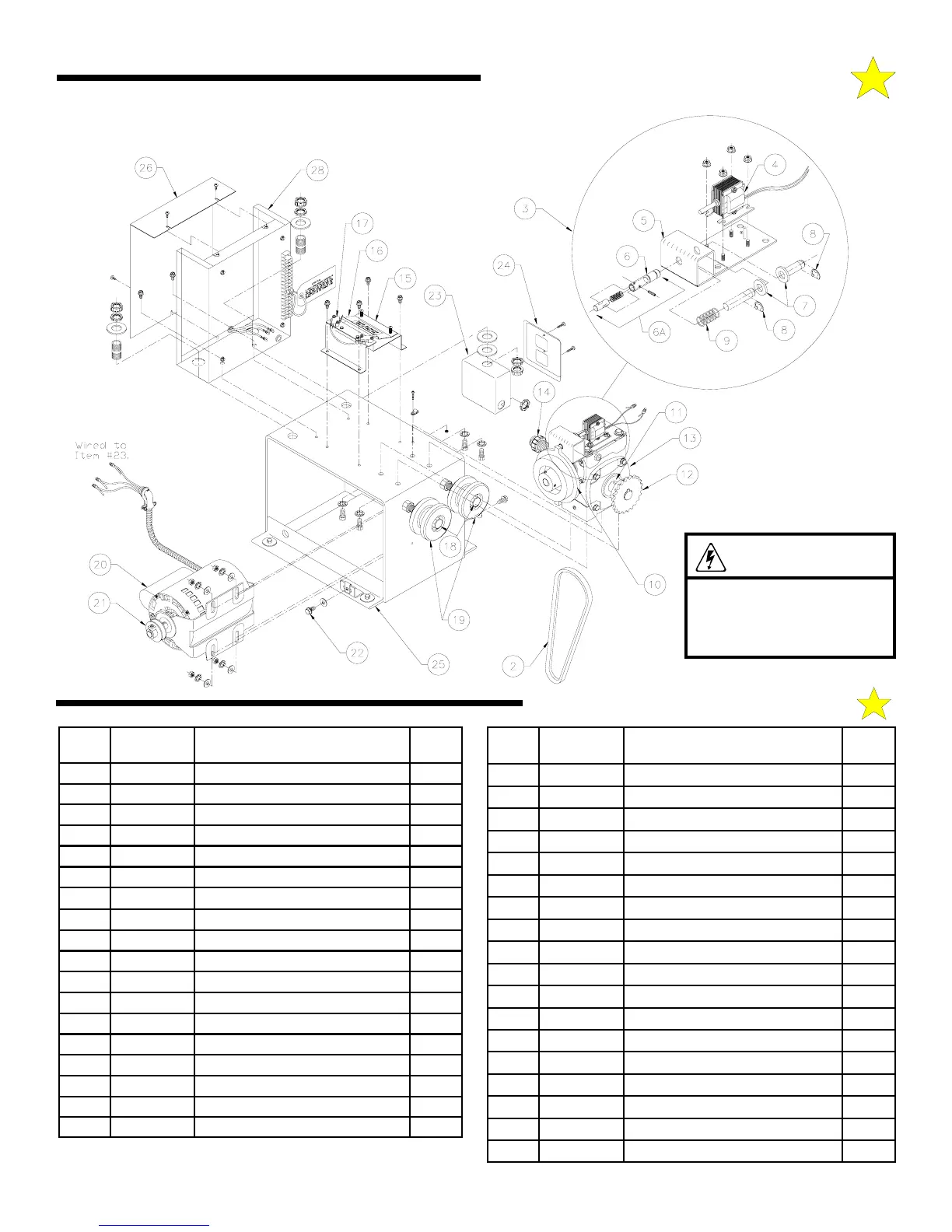

OPERATOR EXPLODED VIEW
110153
OPERATOR PARTS LIST
RISK OF ELECTROCUTION
TURN OFF THE MAIN POWER
SWITCH BEFORE ATTEMPTING
SERVICE OR ADJUSTMENTS.
WARNING!
ITEM PART DESCRIPTION QTY
1 010432 Cover, Leader Plus (Not Shown) 1 EA
2 111814 V-Belt, 4L310 1 EA
3 102076 Lock Assembly 1 EA
4 102551 Lock Solenoid 1 EA
5 010418 Lock Pin Bracket 1 EA
6 102093 Lock Pin 1 EA
6A 103572 Lock Pin ASSY,CMPLT, Leader + 1 EA
7 010423 Rubber Grommet 2 EA
8 010422 Retaining Ring 2 EA
9 102075 Lock Spring 1 EA
10 102077 Pulley, Lock Plate 1 EA
11 010025 Set Screw 2 EA
12 110131 18 Tooth Sprocket 1 EA
13 102771 Speed Reducer Assembly, Leader 1 EA
14 010606 Limit Nut 2 EA
15 103829 Limit Switch Assembly, Leader 1 EA
16 104444 Limit Detent Plate 1 EA
17 005063 Limit Switch 2 EA
