3 Description
3.1 Layout
NOTE
This section essentially names the
components relevant for fullling the tasks
described in this operating manual.

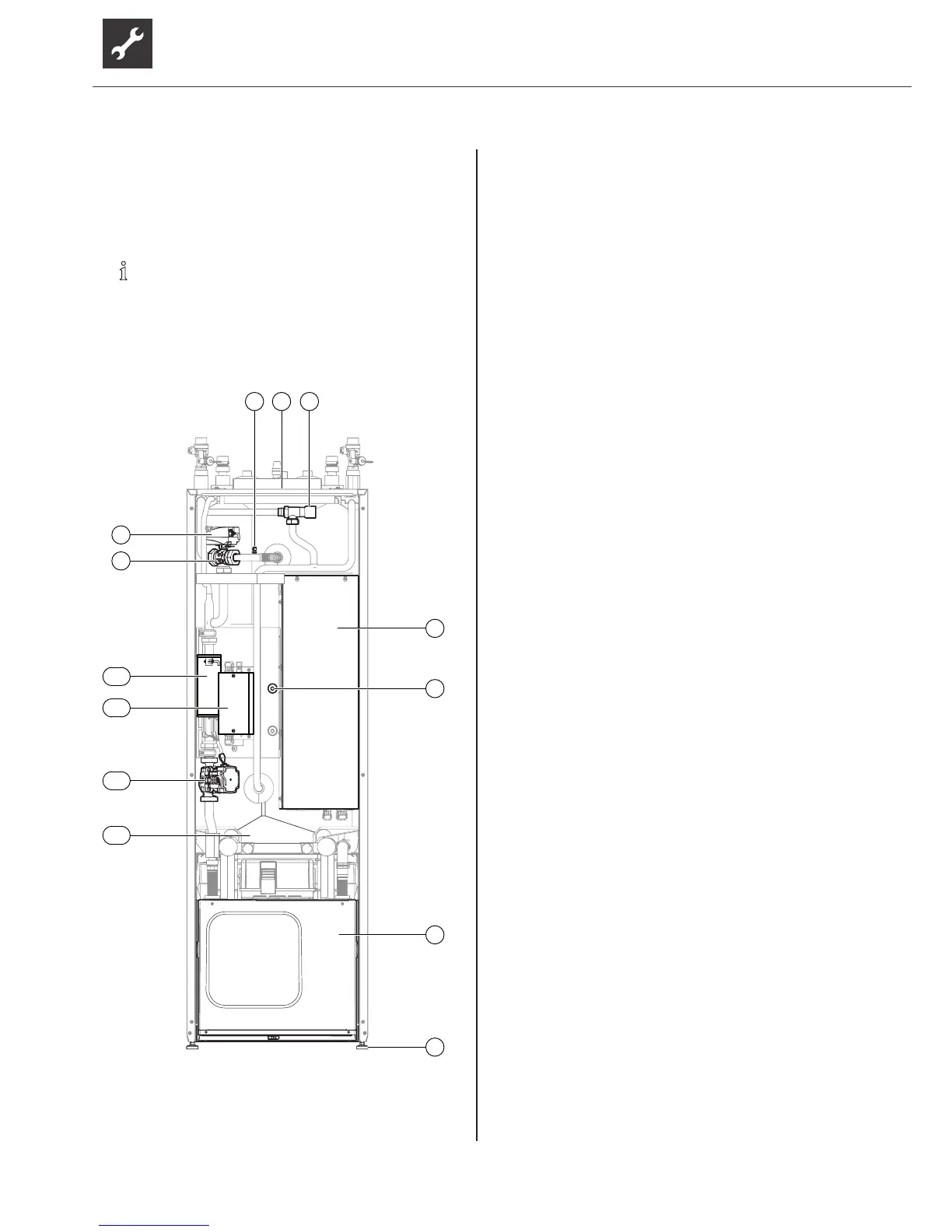

Heat station
1 3-way changeover valve, heating
circuit/domestic hot water
2 Valve motor
3 Venter
4 Position of rating plate
5 Overowvalve
6 Electrical switch cabinet
7 Domestichotwatertanksensor
8 Module box
9 Height-adjustable foot (4x)
10 Domestichotwatertank
11 Heating circuit/hot water circulation pump
12 Manual output control heating
element (MLRH), accessories
13 Heating element
Rating plate
One rating plate is attached at the top of the heating
station, a second one on the left on the module box.
The rating plate contains the following information at
the top:
● Unit type, product number
● Serial number, unit index
The rating plate also contains an overview of the most
important technical data.
1
8
9
