ALPHA TECHNICS PRECISION TEMPERATURE
4600 SERIES THERMOMETER
ALPHA TECHNICS PRECISION TEMPERATURE
4600 SERIES THERMOMETER
5
- O P E R A T I N G I N S T R U C T I O N S -
5. KEY PAD OPERATION:
All functions can be accessed through the
MODE and FUNCTION (F1 & F2) keys. The
user can assign any of the aforementioned
functions to either the F1 or F2 keys by scrolling
through the functions using the MODE key,
then pressing either F1 or F2.

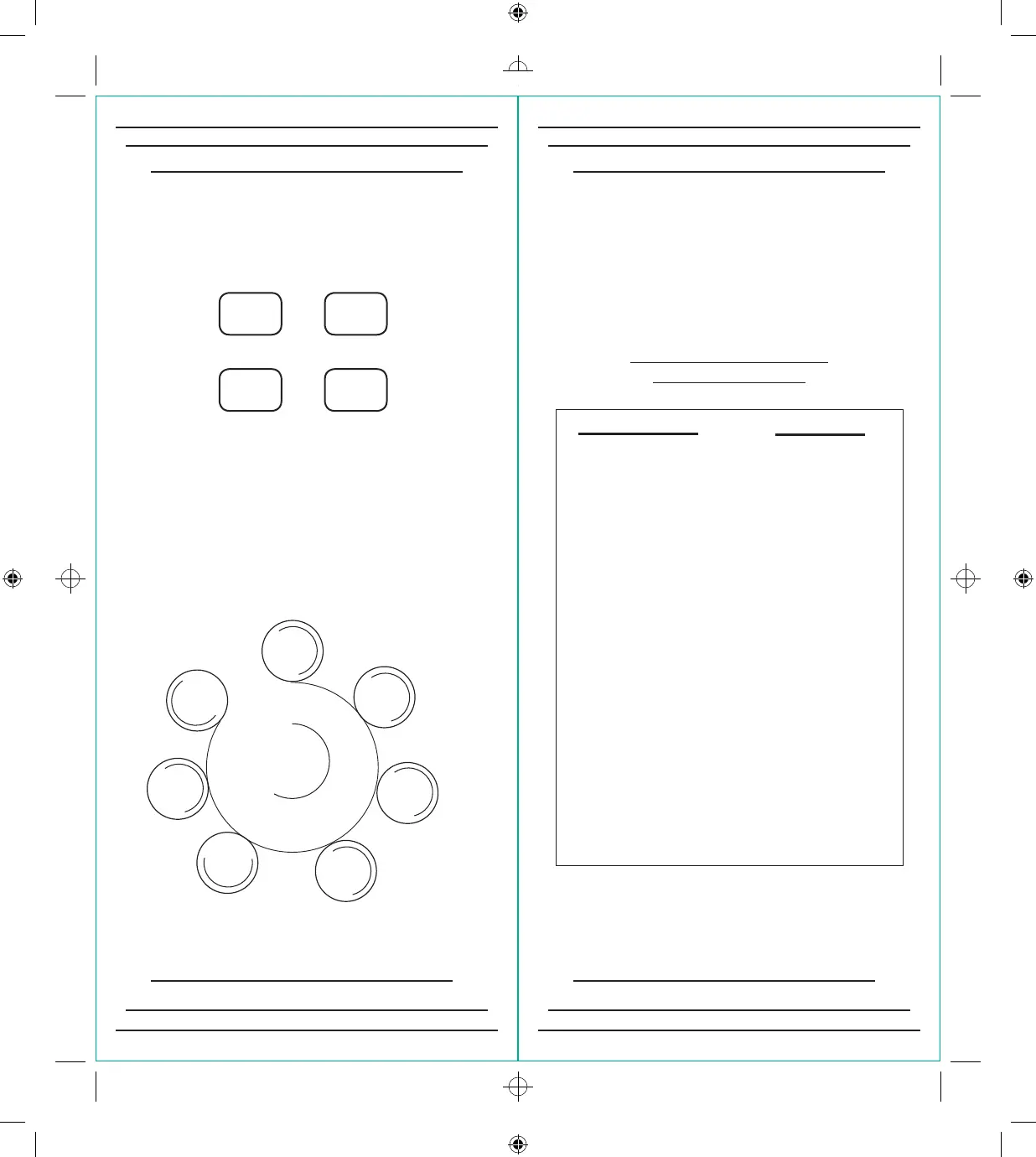

Key Pad
Key pad functional flow chart
MODE ON/OFF
F1
MIN/MAX
HOLD
LCD returns
to “normal”
Shows Max
temperature
Store the
present
temperature
•
•
•
The LCD
is “frozen”
Shows
Min
temp.
MODE
Flashing
present
temp.
Present temp.
minus the
“STOREd”
temp.
Shows STOREd temp.
STORE
•

DELTA T




•
•
•
•
CAL
•

•
Cal
point 2
Cal
point 3
•
Cal
point 4
•
Cal
point 1
F or C
•
C/F
C or F

•
CHK CAL
•

•
Check Cal
point 1
Check Cal
point 2
•
Check Cal
point 3
•
Check Cal
point 4
F2
22
- SPECIFICATIONS -
MODEL 4600-2 SPECIFICATIONS:
INSTRUMENT ACCURACY
VS. TEMPERATURE**
(Not including probe error)
TEMPERATURE
(°C) (°F)
-40 (-40)
-30 (-22)
-20 (-4)
-10 (14)
0 (32)
10 (50)
20 (68)
30 (86)
40 (104)
50 (122)
60 (140)
70 (158)
80 (176)
90 (194)
100 (212)
110 (230)
120 (248)
130 (266)
140 (284)
150 (302)
ACCURACY
(°C) (°F)
0.100 (0.180)
0.060 (0.108)
0.035 (0.063)
0.025 (0.045)
0.020 (0.036)
0.015 (0.027)
0.015 (0.027)
0.015 (0.027)
0.017 (0.031)
0.019 (0.034)
0.020 (0.036)
0.020 (0.036)
0.025 (0.045)
0.030 (0.054)
0.035 (0.063)
0.040 (0.072)
0.050 (0.090)
0.060 (0.108)
0.080 (0.144)
0.100 (0.180)
**Ambient temperature: 18 to 28°C (64 to 82°F)
