A ALPHA BNWAS
6
2 ALPHA BNWAS HARDWARE
The basic hardware of the ALPHA BNWAS
consists of the control unit. The
characteristics of this control unit are:
 Dimensions 144x72x135 mm (DIN);
 Power supply: 18-33 Vdc;
 Current: 145 mA max;
 4x potential free output;
 Autopilot input;
 Reset input.

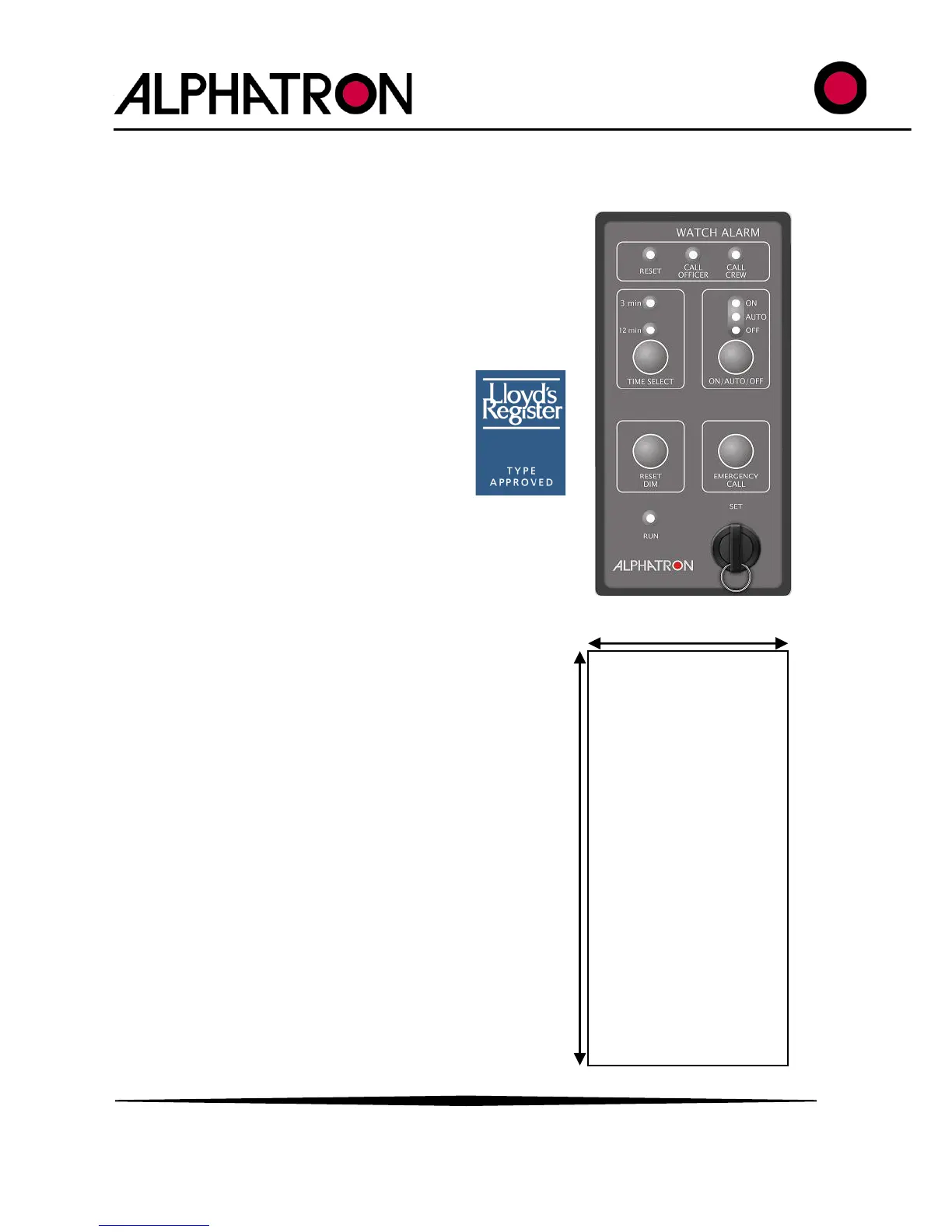

The mounting details are as following:
CUT OUT
139 mm
67 mm
