5953

5953

|

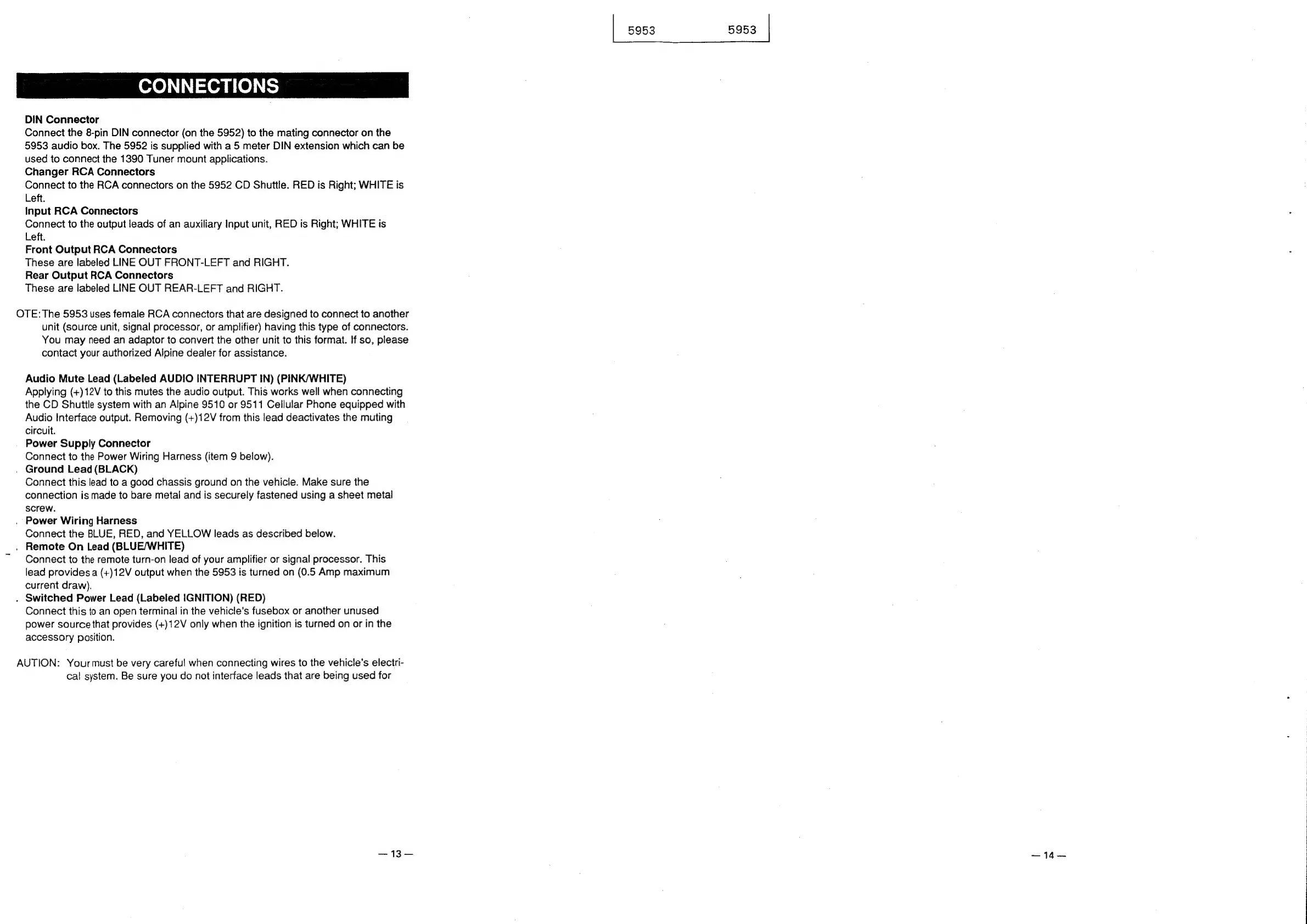

CONNECTIONS

DIN

Connector

Connect

the

8-pin

DIN

connector

(on

the

5952)

to

the

mating

connector

on

the

5953

audio

box.

The

5952

is

supplied

with

a

5

meter

DIN

extension

which

can

be

used

to

connect

the

1390

Tuner

mount

applications.

Changer

RCA

Connectors

Connect

to

the

RCA

connectors

on

the

5952

CD

Shuttle.

RED

is

Right;

WHITE

is

Left.

Input

RCA

Connectors

Connect

to

the

output

leads

of

an

auxiliary

Input

unit,

RED

is

Right;

WHITE

is

Left.

Front

Output

RCA

Connectors

These

are

labeled

LINE

OUT

FRONT-LEFT

and

RIGHT.

Rear

Output

RCA

Connectors

These

are

labeled

LINE

OUT

REAR-LEFT

and

RIGHT.

OTE:

The

5953

uses

female

RCA

connectors

that

are

designed

to

connect

to

another

unit

(Source

unit,

signal

processor,

or

amplifier)

having

this

type

of

connectors.

You

may

need

an

adaptor

to

convert

the

other

unit

to

this

format.

If

so,

please

contact

your

authorized

Alpine

dealer

for

assistance.

Audio

Mute

Lead

(Labeled

AUDIO

INTERRUPT

IN)

(PINK/WHITE)

Applying

(+)12V

to

this

mutes

the

audio

output.

This

works

well

when

connecting

the

CD

Shuttle

system

with

an

Alpine

9510

or

9511

Cellular

Phone

equipped

with

Audio

Interface

output.

Removing

(+)12V

from

this

lead

deactivates

the

muting

circuit.

Power

Supply

Connector

Connect

to

the

Power

Wiring

Harness

(item

9

below).

.

Ground

Lead

(BLACK)

Connect

this

lead

to

a

good

chassis

ground

on

the

vehicle.

Make

sure

the

connection

is

made

to

bare

metal

and

is

securely

fastened

using

a

sheet

metal

screw.

,

Power

Wiring

Harness

Connect

the

BLUE,

RED,

and

YELLOW

leads

as

described

below.

.

Remote

On

Lead

(BLUE/WHITE)

Connect

to

the

remote

turn-on

lead

of

your

amplifier

or

signal

processor.

This

lead

provides

a

(+)12V

output

when

the

5953

is

turned

on

(0.5

Amp

maximum

current

draw).

.

Switched

Power

Lead

(Labeled

IGNITION)

(RED)

Connect

this

to

an

open

terminal

in

the

vehicle’s

fusebox

or

another

unused

power

source

that

provides

(+)12V

only

when

the

ignition

is

turned

on

or

in

the

accessory

position.

AUTION:

Your

must

be

very

careful

when

connecting

wires

to

the

vehicle's

electri-

cal

system.

Be

sure

you

do

not

interface

leads

that

are

being

used

for

—

13

—

—14—
