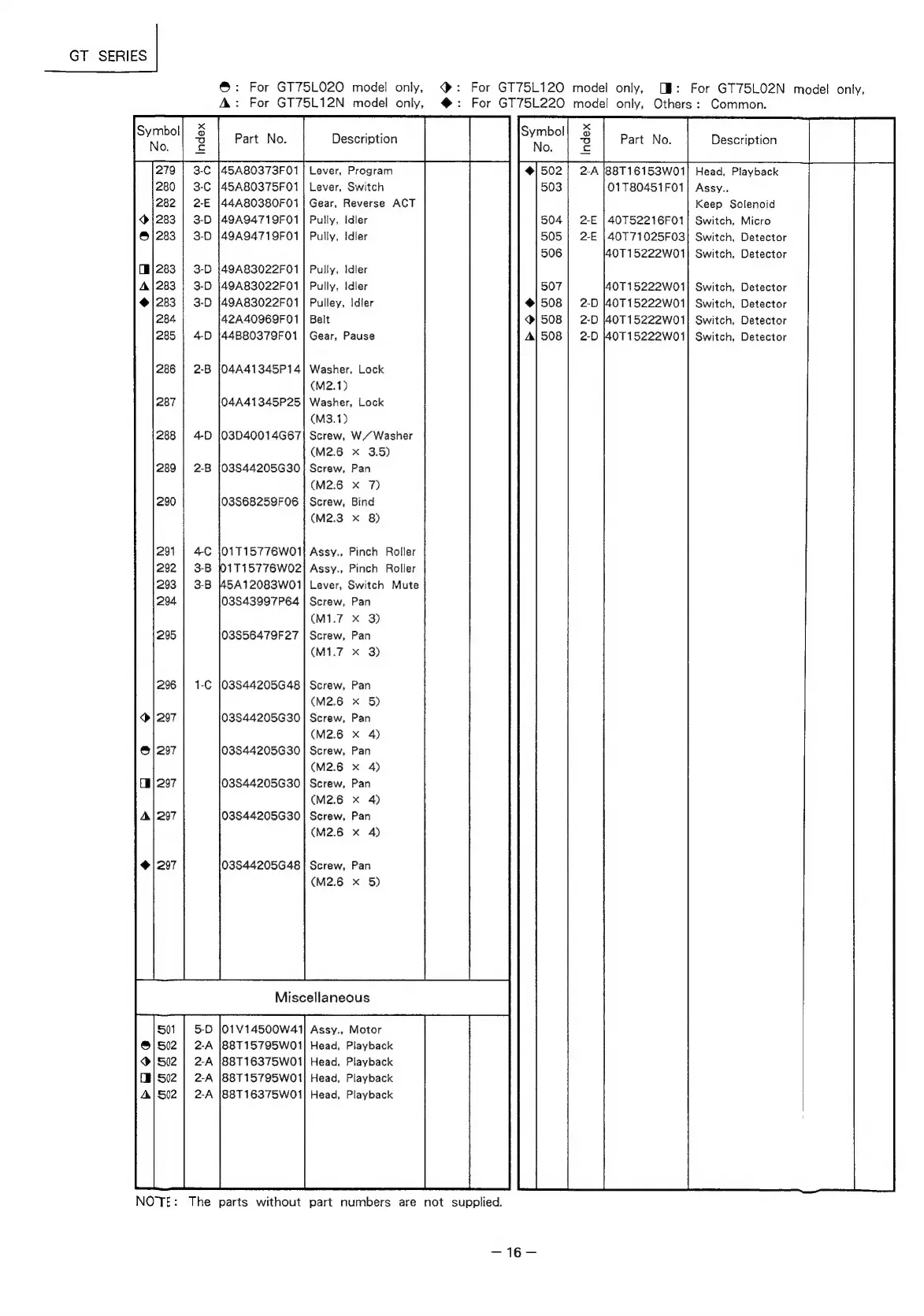

Alpine 7190M - Page 48

GT SERIES
oa For GT75L020 model only, oe: For GT75L120 model only, OB: For GT75LO2N model only,
For GT75L12N model only, @: For GT75L220 model only, Others: Common.
x
{il | oem |]
45A80373F01 | Lever, Program
45A80375F01 | Lever, Switch
44A80380F01 | Gear, Reverse ACT
49A94719F01 | Pully, Idler
49A94719F01 | Pully, Idler
49A83022F01 | Pully, Idler
49A83022F01 | Pully, Idler
49A83022F01 | Pulley, Idler
42A40969F01 | Belt
44B80379F01 | Gear, Pause
04A41345P14| Washer, Lock
(M2.1)
04A41345P25| Washer, Lock
(M3.1)
03D40014G67| Screw, W/Washer
(M2.6 x 3.5)
03844205630} Screw, Pan
(M2.6 x 7)
03S68259F06 | Screw, Bind
(M2.3 x 8)
01T15776W01j Assy., Pinch Roller
01T15776W02] Assy., Pinch Roller
45A12083W01] Lever, Switch Mute
Screw, Pan
(M1.7 x 3)
Screw, Pan
(M1.7 x 3)
Screw, Pan
(M2.6 x 5)
Screw, Pan
(M2.6 x 4)
Screw, Pan
(M2.6 x 4)
Screw, Pan
(M2.6 x 4)
Screw, Pan
(M2.6 x 4)
Screw, Pan
(M2.6 x 5)
2-A |88T16153W01| Head, Playback
01T80451F01| Assy.,
Keep Solenoid
2-E |40T52216F01| Switch, Micro
2-E |40T71025F03} Switch, Detector
40T15222W01| Switch, Detector
40T15222W01] Switch, Detector
2-D }40T15222W01| Switch, Detector
2-D }40T15222W01| Switch, Detector
40T15222W01) Switch, Detector
| Miscellaneous
5-D |01V14500W41 .. Motor
2-A |88T15795W01 , Playback
2-A |88T16375W01 » Playback
2-A |88T15795W01 , Playback
2-A |88T16375W01 , Playback
NOTE: The parts without part numbers are not supplied.
