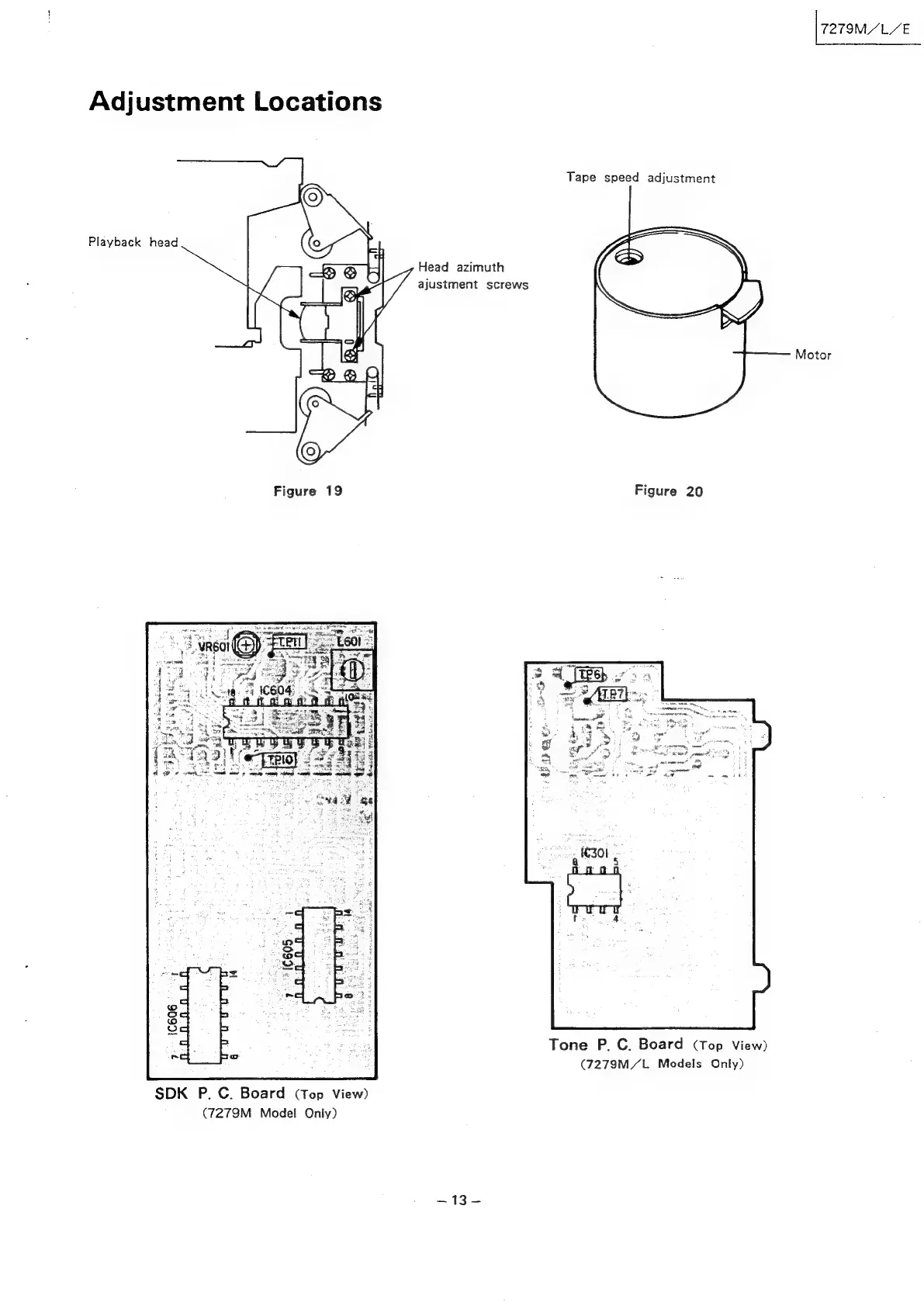

Alpine 7279M - Page 13

Adjustment Locations
Playback head
Head azimuth
ajustment screws
Figure 19
SDK P. C. Board (Top View)
(7279M Model Only)
—~13-
Tape speed adjustment
Figure 20
Tone P. C. Board (Top View)
(7279M/L Models Only)
7T278M/L/E
Motor
