| 7279M/LZE

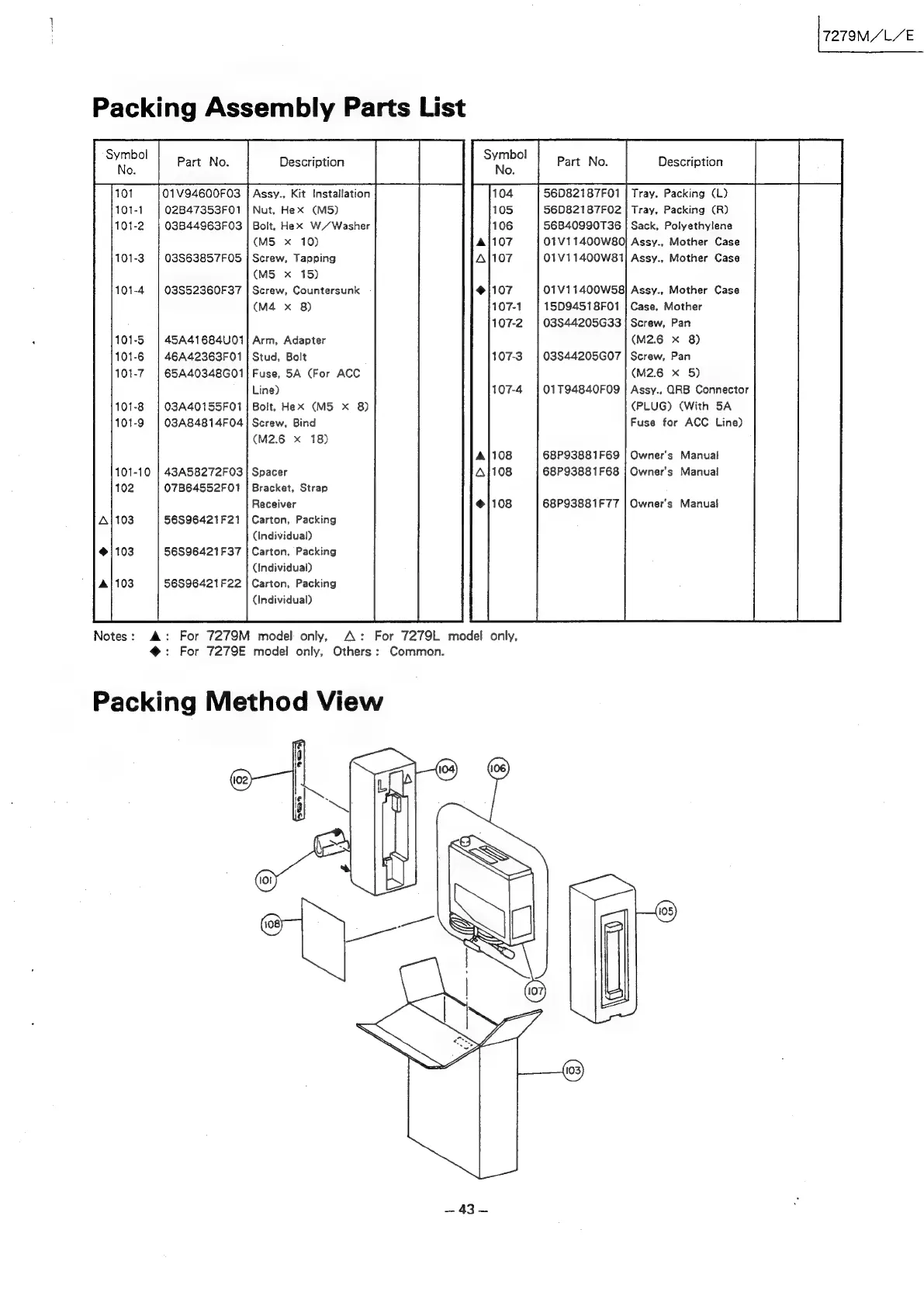

Packing Assembly Parts List
Symbol _— Symbol oe
01V94600F03 | Assy., Kit Installation 56D82187F01 | Tray, Packing (L)
02B47353F01 | Nut, Hex (M5) 56D82187F02 | Tray, Packing (R)
03B44963F03 | Bolt, Hex W/Washer 56B40990T36 | Sack, Polyethylene
(MS x 10) 01V11400W80; Assy., Mother Case
03S63857F05 | Screw, Tapping 01V11400W81j Assy., Mother Case
(M5 x 15)
03S52360F37 | Screw, Countersunk 01V11400WS8] Assy., Mother Case
(M4 x 8) 15D94518F01 | Case, Mother
03844205633 | Screw, Pan
45A41684U01} Arm, Adapter (M2.6 x 8)
46A42363F01 | Stud, Bolt 03844205G07 | Screw, Pan
65A40348G01} Fuse, 5A (For ACC (M2.6 x 5)
Line) 01T94840F09 | Assy.. QRB Connector
03A40155F01 | Bolt, Hex (M5 x 8) (PLUG) (With 5A
03A84814F04 | Screw, Bind Fuse for ACC Line)
(M2.6 x 18)
68P93881F69 | Owner's Manual
43A58272F03 | Spacer 68P93881F68 | Owner's Manual
07B64552F01 | Bracket, Strap
Receiver 68P93881F77 | Owner’s Manual
56S96421F21 | Carton, Packing
(Individual)
56S96421F37 | Carton, Packing
(Individual)
56S96421F22 | Carton, Packing
(Individual)
Notes: A: For 7279M model only, A: For 7279L model only,
@: For 7279E model only, Others : Common.
Packing Method View
—43—
