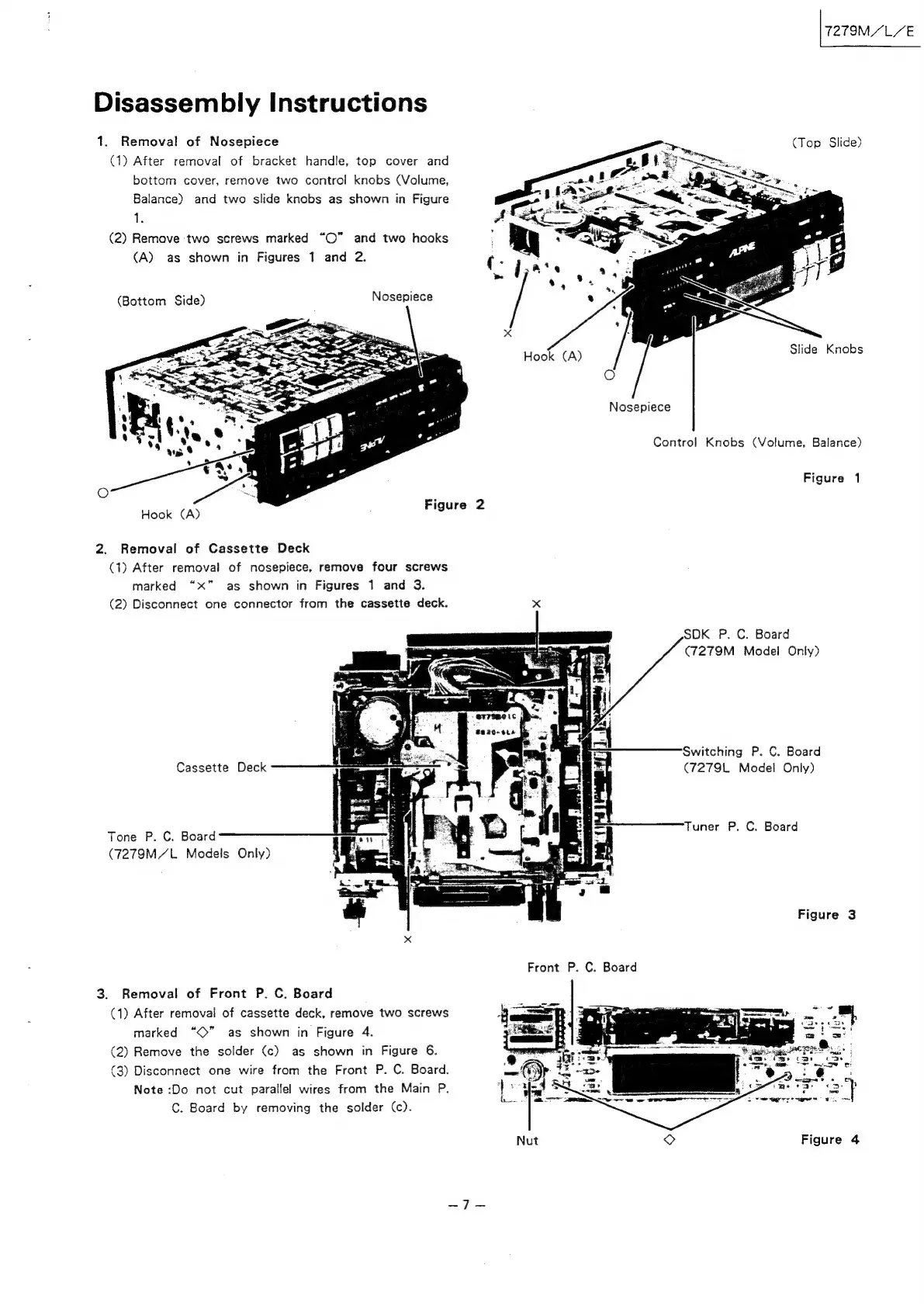

Disassembly
Instructions
1.
Removal
of
Nosepiece
(1)
After
removal
of
bracket
handle,
top
cover
and
bottom
cover,
remove
two
control
knobs
(Volume,
(Top
Slide)
Balance)
and
two
slide
knobs
as
shown
in
Figure
1.
(2)
Remove
two
screws
marked
“O”
and
two
hooks
(A)
as
shown
in
Figures
1
and
2.
(Bottom
Side)
Nosepiece
Slide
Knobs
Nosepiece
Control
Knobs
(Volume,
Balance)
Figure
1
Figure
2
Hook
(A)
2.
Removal
of
Cassette
Deck
(1)
After
removal
of
nosepiece,
remove
four
screws
marked
“xX”
as
shown
in
Figures
1
and
3.
(2)
Disconnect
one
connector
from
the
cassette
deck.
x
SDK
P.
C.
Board
(7279M
Model
Only)
Switching
P.
C.
Board
Cassette
Deck
(7279L
Model
Only)
T
aoGs
Tone
P.
C.
Board
uner
P.
C.
Board
(7278M/L
Models
Only)
Figure
3
3.
Removal
of
Front
P.
C.
Board
(1)
After
removal
of
cassette
deck,
remove
two
screws
marked
“O”
as
shown
in
Figure
4.
(2)
Remove
the
solder
(c)
as
shown
in
Figure
6.
(3)
Disconnect
one
wire
from
the
Front
P. C.
Board.
Note
:Do
not
cut
parallel
wires
from
the
Main
P.
C.
Board
by
removing
the
solder
(c).
Nut
©
Figure
4
