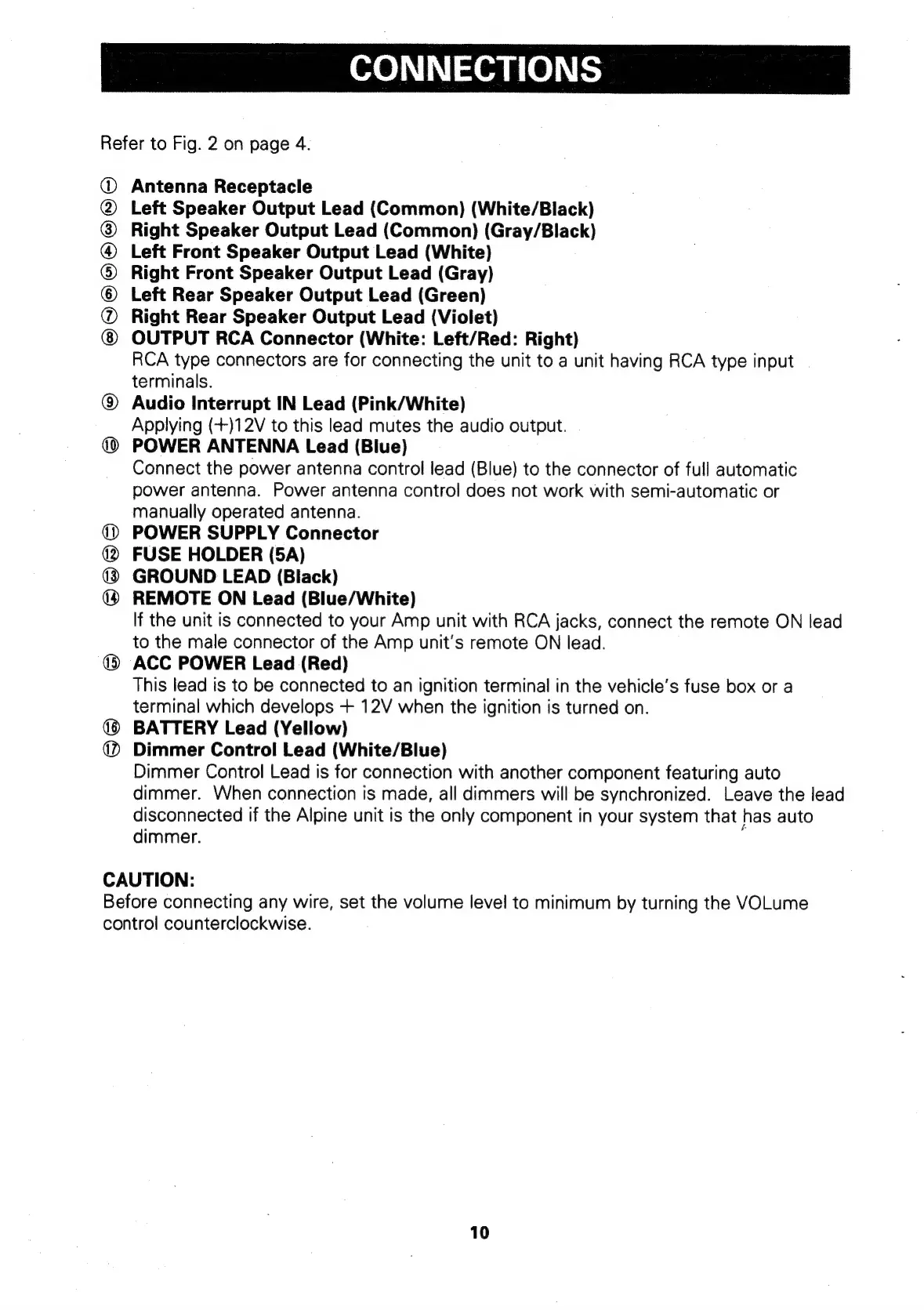

CONNECTIONS
Refer
to
Fig.
2
on
page
4.
Antenna
Receptacle
Left
Speaker
Output
Lead
(Common)
(White/Black)
Right
Speaker
Output
Lead
(Common)
(Gray/Black)
Left
Front
Speaker
Output
Lead
(White)
Right
Front
Speaker
Output
Lead
(Gray)
Left
Rear
Speaker
Output
Lead
(Green)
Right
Rear
Speaker
Output
Lead
(Violet)
OUTPUT
RCA
Connector
(White:
Left/Red:
Right)
RCA
type
connectors
are
for
connecting
the
unit
to
a
unit
having
RCA
type
input
terminals.
Audio
Interrupt
IN
Lead
(Pink/White)
Applying
(+)12V
to
this
lead
mutes
the
audio
output.
POWER
ANTENNA
Lead
(Blue)
Connect
the
power
antenna
control
lead
(Blue)
to
the
connector
of
full
automatic
power
antenna.
Power
antenna
control
does
not
work
with
semi-automatic
or
Manually
operated
antenna.
POWER
SUPPLY
Connector
FUSE
HOLDER
(5A)
GROUND
LEAD
(Black)
REMOTE
ON
Lead
(Blue/White)
If
the
unit
is
connected
to
your
Amp
unit
with
RCA
jacks,
connect
the
remote
ON
lead
to
the
male
connector
of
the
Amp
unit’s
remote
ON
lead.
ACC
POWER
Lead
(Red)
This
lead
is
to
be
connected
to
an
ignition
terminal
in
the
vehicle’s
fuse
box
or
a
terminal
which
develops
+
12V
when
the
ignition
is
turned
on.
BATTERY
Lead
(Yellow)
Dimmer
Control
Lead
(White/Blue)
Dimmer
Control
Lead
is
for
connection
with
another
component
featuring
auto
dimmer.
When
connection
is
made,
all
dimmers
will
be
synchronized.
Leave
the
lead
disconnected
if
the
Alpine
unit
is
the
only
component
in
your
system
that
has
auto
dimmer.
OQAQOHLHO
eo
©
Qeeo
@
ee
CAUTION:
Before
connecting
any
wire,
set
the
volume
level
to
minimum
by
turning
the
VOLume
control
counterclockwise.
