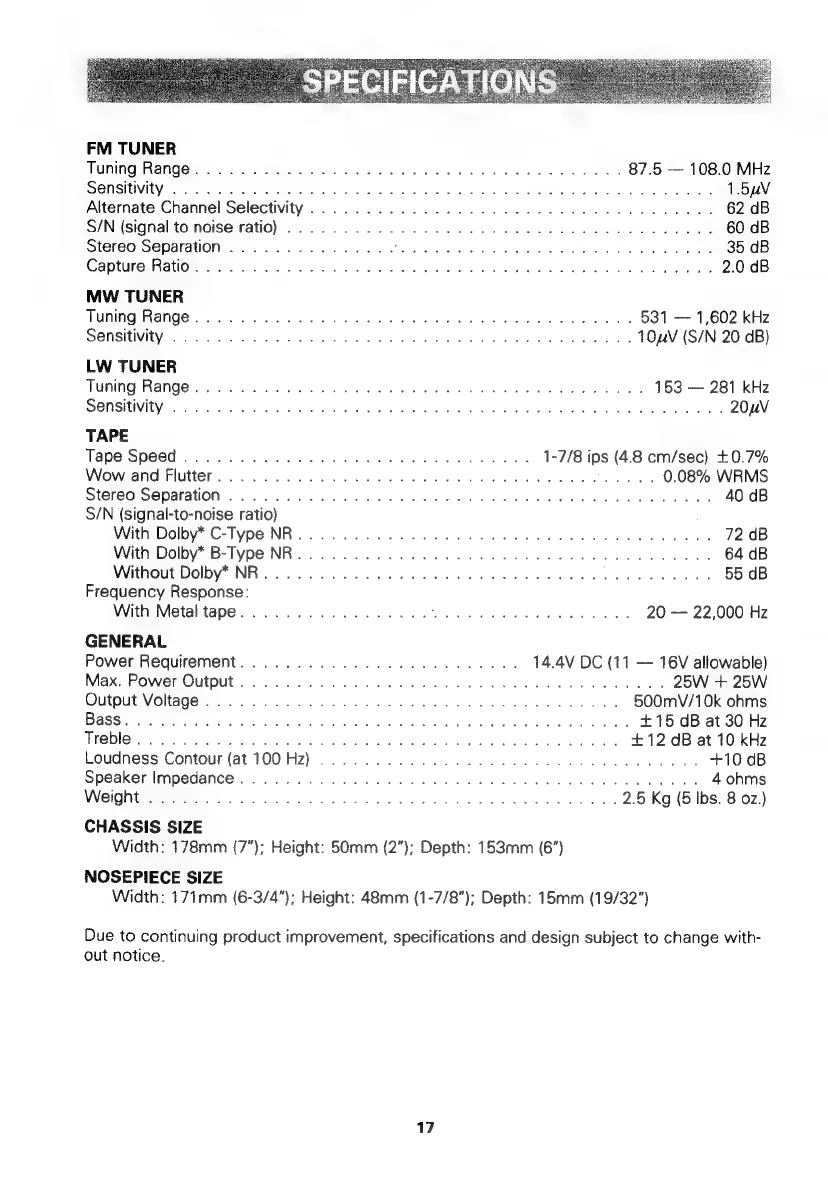

FM TUNER
TURING Ranges. 2.50% enccleass aren ewid nal Soe rene a de ee eee 87.5 — 108.0 MHz
SONSIUVILY 3s ise ae See oe die oes Mae Be a etn dee 1.5uV
Alternate Channel Selectivity... .....0.0000000. 00000000. 62 dB
S/N (signal to noise ratio)... ee 60 dB
Stereo Separation ............... He gre eSSe, teat te gi Beh ANON Bags uattan'd 35 dB
Capture: Ratio’: 5.2.5 ot siege hd eof d, oe wie a ead Bee shew tts hd Gane 2.0 dB
MW TUNER
Tuning Range... 2... ee 531 — 1,602 kHz
SONSIIVITY e203 SS eanine sk Sun Sek we ae ws od Cw le BR Boca Gees 10uV (S/N 20 dB)
LW TUNER
Tuning Range... 2... eee 153 — 281 kHz
SONSIVItYiescs $4 Sys Boek ahe whter love Wy Ince Bap ny bee are ey GER S54 -o6d 20KV
TAPE
Tape:Speed.. ho Sa eee ee te Mo i a 1-7/8 ips (4.8 cm/sec) £0.7%
Wow and sPlutter?. c-c2i 0 sik is cack dees i dy ee ote ad tod win eed 0.08% WRMS
Stereo Separation... 0... ee eee 40 dB
S/N (signal-to-noise ratio)
With Dolby* C-Type NR... 6... ee eee 72 dB
With Dolby* B-Type NR... 6.0. eee 64 dB
Without Dolby* NR... ee 55 dB
Frequency Response:
With Metal tape............0.... BAe abr e Wap Btn dt OARS 20 — 22,000 Hz
GENERAL
Power Requirement. ...............0-.0 0005. 14.4V DC (11 — 16V allowable)
Max. Power Output. 2... ees 25W + 25W
OutputVoltages s.2cuhetevcads beatae pre Po 8 ene Dead owe 500mV/10k ohms
BOSS! As arsine nah s Yea saad och foes les oa hastinciedyp ot hy dada vi sea te atea? Sale Meee ats +15 dB at 30 Hz
URODIC 8. Sohn ane beth e Ree See ee RAS es ae a eins +12 dB at 10 kHz
Loudness Contour (at 100 Hz) 2.2. +10 dB
Speaker Impedance... 2.0... 4 ohms
WSIOM Cas, 5: eoniatictia wht Sisy Muse Seco fe PS A ea peta be eagle ht dean 2.5 Kg (5 lbs. 8 oz.)
CHASSIS SIZE
Width: 178mm (7"); Height: 50mm (2"); Depth: 153mm (6")
NOSEPIECE SIZE
Width: 171mm (6-3/4"); Height: 48mm (1-7/8"); Depth: 15mm (19/32”)
Due to continuing product improvement, specifications and design subject to change with-
out notice.
