Alpine 7619R - Page 45

7619R

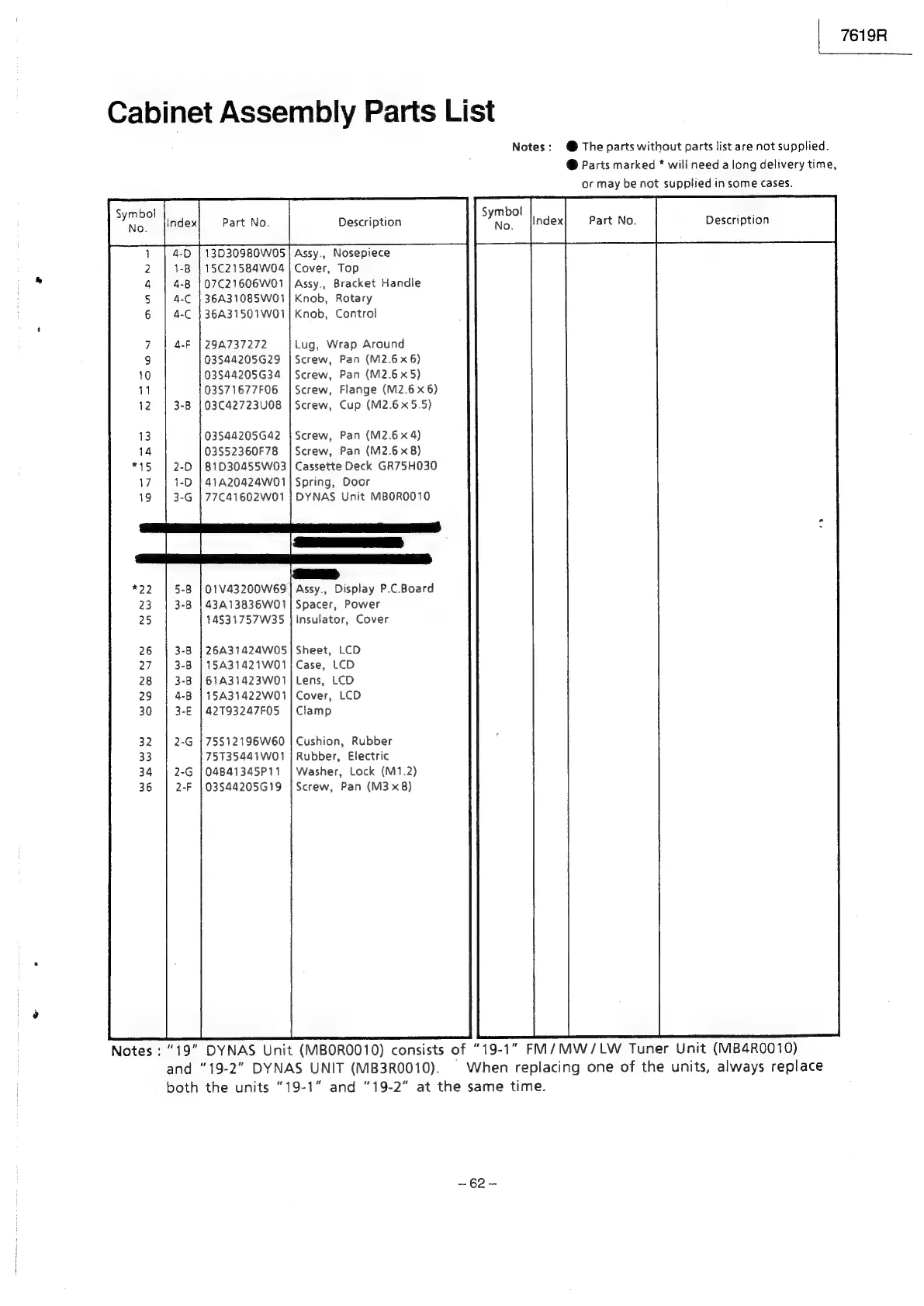

Cabinet Assembly Parts List
Symbol
13D30980W05 | Assy., Nosepiece
15C21584W04 | Cover, Top
07C€21606W01 | Assy., Bracket Handle
36A31085W01! Knob, Rotary
36A31501W01] Knob, Control
Notes: @ The parts without parts list are not supplied.
@ Parts marked * will need along delivery time,
or may be not supplied in some cases.
Symbol poate
No. |index Part No. Description
Notes : "19" DYNAS Unit (MBORO010) consists of "19-1" FM/MW/LW Tuner Unit (MB4R0010)
and
“19-2”
DYNAS
UNIT
(MB3R0010).
|
When
replacing
one
of
the
units,
always
replace
both the units "19-1" and “19-2” at the same time.
294737272
03$44205G29
03544205G34
03571677F06
03C42723U08
Lug, Wrap Around
Screw, Pan (M2.6x 6)
Screw, Pan (M2.6x5)
Screw, Flange (M2.6 x6)
Screw, Cup (M2.6x5.5)
03544205G42 |Screw, Pan (M2.6x 4)
03552360F78 |Screw, Pan (M2.6 x 8)
81030455W03 | Cassette Deck GR75H030
41A20424W01| Spring, Door
77C41602W01 | DYNAS Unit MBORO010
01V43200W69 | Assy., Display P.C.Board
43A13836W01| Spacer, Power
14831757W35 | Insulator, Cover
26A31424W05 | Sheet, LCD
15A31421W01} Case, LCD
61A31423W01]| Lens, LCD
15A31422W01| Cover, LCD
42793247F05 | Clamp
75812196W60 | Cushion, Rubber
75735441W01 | Rubber, Electric
04841345P11 | Washer, Lock (M1.2)
03544205G19 | Screw, Pan (M3 x8)
~62—
