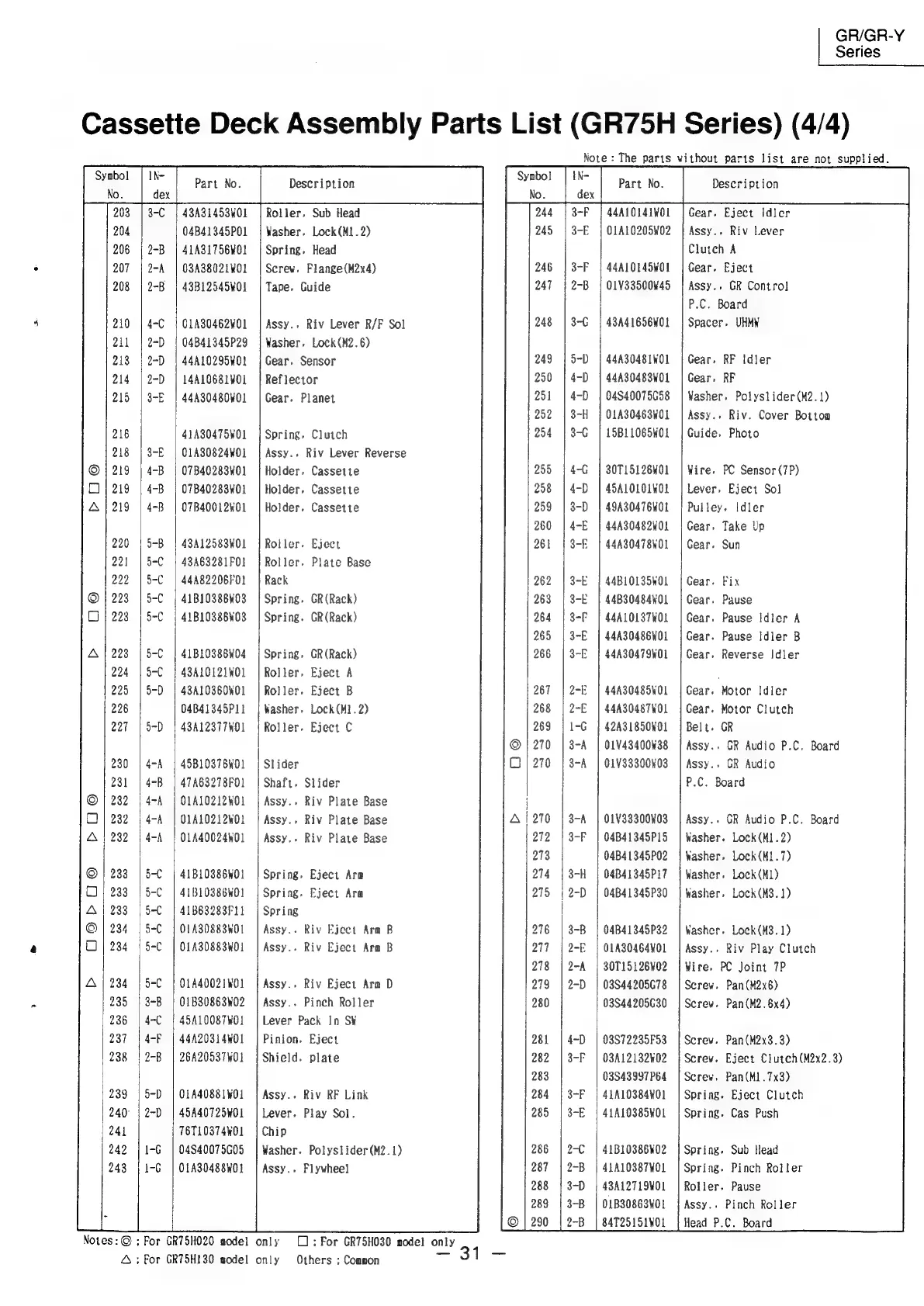

Cassette Deck Assembly Parts List (GR75H Series) (4/4)
Note: The parts without parts list are not supplied.
Symbol
No.
Description Description
44A10141¥01 | Gear. Eject Idler
OLAL0205W02 | Assy.. Riv Lever
Clutch A
44A10145WO1 | Gear. Eject
01V33500W45 | Assy.. GR Control
P.C. Board
43A41656W0l | Spacer. UHMW
43A31453W0L | Roller, Sub Head
04B41345P01 | Washer, Lock(H1.2)
41A31756WOL | Spring, Head
03A38021W01 | Screw. Flange(M2x4)
43B12545W01 | Tape. Guide
01A30462W01 | Assy.. Riv Lever R/F Sol
04B41345P29 | Washer. Lock (M2.6)
44A10295WO! | Gear. Sensor
14A10681WOL | Reflector
44A30480W01 | Gear. Planet
44A30481W01 | Gear, RF Idler
44A30483W¥01 | Cear, RF
04S40075C58 | Washer. Polyslider(M2. 1)
OLA30463W01 | Assy.. Riv. Cover Botton
41A30475W01 | Spring. Clutch 1SBLL065¥0L | Guide. Photo
01A30824WOl | Assy.. Riv Lever Reverse
07B40283W01 | Holder, Cassette
07B40283W01 | Holder. Cassette
07B40012W0l | Holder. Cassette
3071512601 | Wire. PC Sensor(7P)
45A10101W01 | Lever. Eject Sol
A9A30476W01 | Pulley. Idler
44A3048201 | Gear. Take Up
44A30478¥01 | Gear. Sun
43A12583W01 | Rotler. Eject
43A63281F01 | Roller. Plate Base
44A82206F01 | Rack 44B10135W0l | Gear. Fix
44B30484K01 | Gear. Pause
44A10137¥01 | Gear, Pause Idler A
44A30486W01 | Gear. Pause Idler B
44A30479W01 | Gear. Reverse Idler
41B10386W03 | Spring, GR(Rack)
41B10386W03 | Spring. GR(Rack)
41B10386W04 | Spring, GR(Rack)
43A10121W01 | Roller, Eject A
43A10360W01 | Roller. Eject B
04B41345P11 | Washer. Lock (M1. 2)
43A1L2377W01 | Roller. Eject C
44A30485¥01 | Gear. Motor Idler
44A30487W01 | Gear. Motor Clutch
42A31850W01 | Belt. GR
01V43400W38 | Assy.. GR Audio P.C. Board
01V33300K03 | Assy.. GR Audio
P.C. Board
45B10376W01 | Slider
47A63278F0] | Shaft. Slider
OLAL0212W01 | Assy.. Riv Plate Base
Q1AL0212W01 | Assy., Riv Plate Base
01A40024W01 | Assy.. Riv Plate Base
01V33300W03 | Assy.. GR Audio P.C. Board
04B41345P15 | Washer. Lock(M1.2)
04B41345P02 | Washer. Lock(Ml.7)
04B41345P17 | Washer. Lock (M1)
04B41345P30 | Washer. Lock (M3.1)
>OOoO
41B10386W01 | Spring. Eject Arm
41B10386WOl | Spring. Eject Ara
41B63283F11 | Spring
OLA30883WO1 | Assy.. Riv Eject Arm B
OLA30883W01 | Assy.. Riv Eject Aro B
04B41345P32 | Washer. Lock (M3.1)
OLA30464W01 | Assy.. Riv Play Clutch
30T15126W02 | Wire, PC Joint 7P
03S44205678 | Screw, Pan(M2x6)
03844205630 | Screw. Pan(M2.6x4)
O9rao
Db
01A40021WO1l | Assy.. Riv Eject Arm D
01B30863W02 | Assy.. Pinch Roller
45A10087W01 | Lever Pack In SW
44A20314WOl | Pinion. Eject
26A20537W0! | Shield. plate
03S72235F53 | Screw. Pan(M2x3.3)
O3A12132¥02 | Screw. Eject Clutch(M2x2.3)
03S43997P64 | Screw, Pan(M1.7x3)
41A10384W01 | Spring. Eject Clutch
41A10385W01 | Spring. Cas Push
OLA40881WO1 | Assy.. Riv RF Link
45A40725WOl | Lever, Play Sol.
76T10374W¥01 | Chip
04840075G05 | Washer. Polyslider(M2.1)
O1A30488W01 | Assy.. Flywheel
41B10386W02 | Spring, Sub Head
41A10387WOl | Spring. Pinch Roller
43A12719W0l | Roller. Pause
OLB3086301 | Assy.. Pinch Roller
84T25151W0l | Head P.C. Board
Notes: © ; For GR75H020 aodel only 1: For GR75H030 model only
4; For GR75H130 model only Others ; Common et Re
