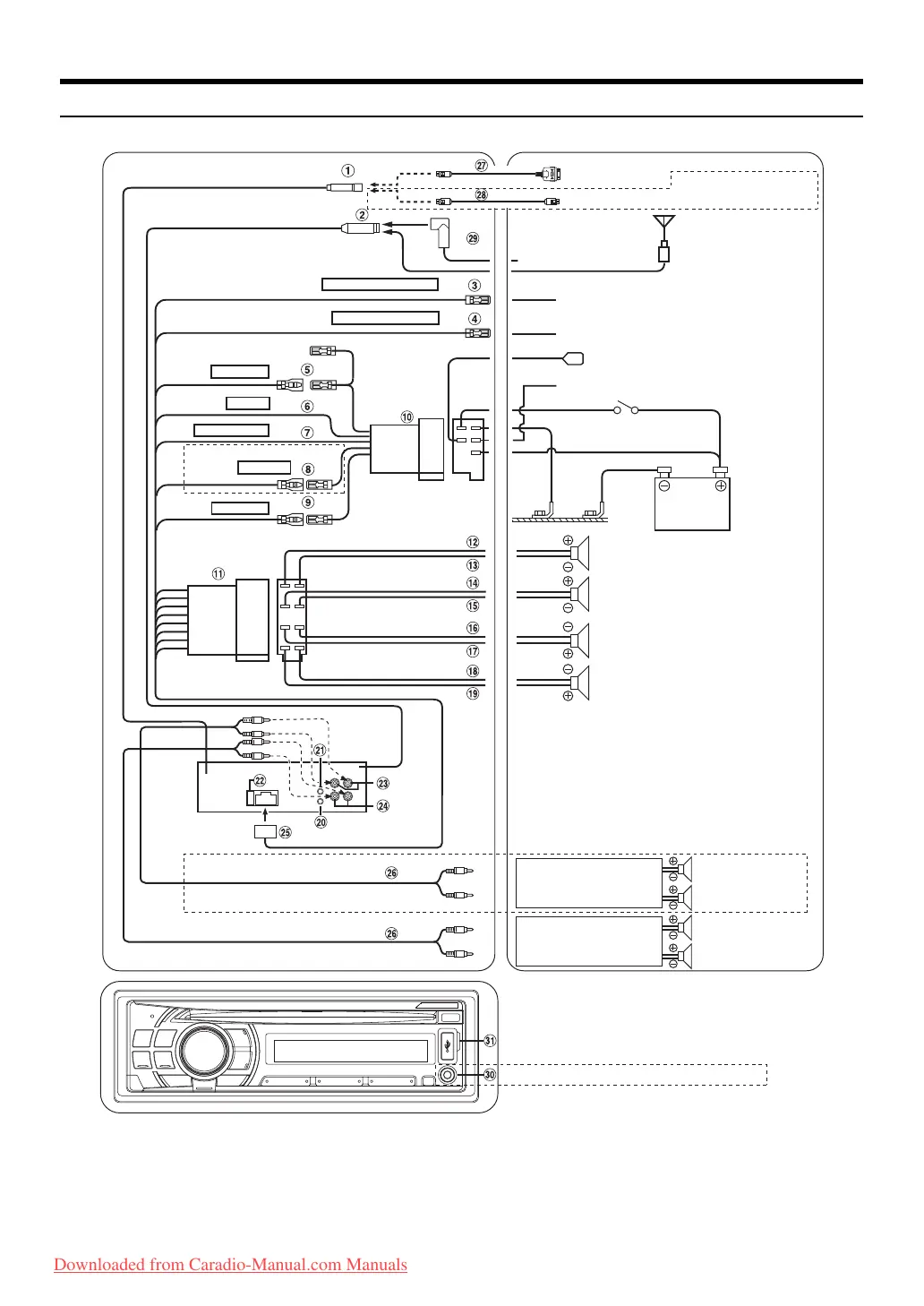

Connections
*1 When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
*2 When Subwoofer is OFF: Output is for Front speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Subwoofer On and Off” on page 17.
To amplier or equalizer
To iPhone/iPod
CDE-112Ri/CDE-111R/CDE-111RM only
or
To BLUETOOTH INTERFACE (KCE-400BT) (sold separately)
Antenna
ISO Antenna Plug
JASO Antenna Plug
To vehicle phone
To power antenna
To the instrument cluster illumination lead
Ignition Key
(Pink/Black)
AUDIO INTERRUPT IN
REMOTE TURN-ON
(Blue/White)
(Red)
IGNITION
(Black)
GND
(Blue)
POWER ANT
Amplier
Amplier
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Speakers
Front Left
Front Right
CDE-112Ri/CDE-113BT/
CDE-114BTi:
Rear or Subwoofers
*1
CDE-111R/CDE-111RM:
Front or Subwoofers
*2
CDE-112Ri/CDE-113BT/CDE-114BTi only
CDE-112Ri/CDE-113BT/
CDE-114BTi only
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
(Orange)
(Yellow)
DIMMER
BATTERY
CDE-112Ri/CDE-113BT/CDE-114BTi only
