28-EN

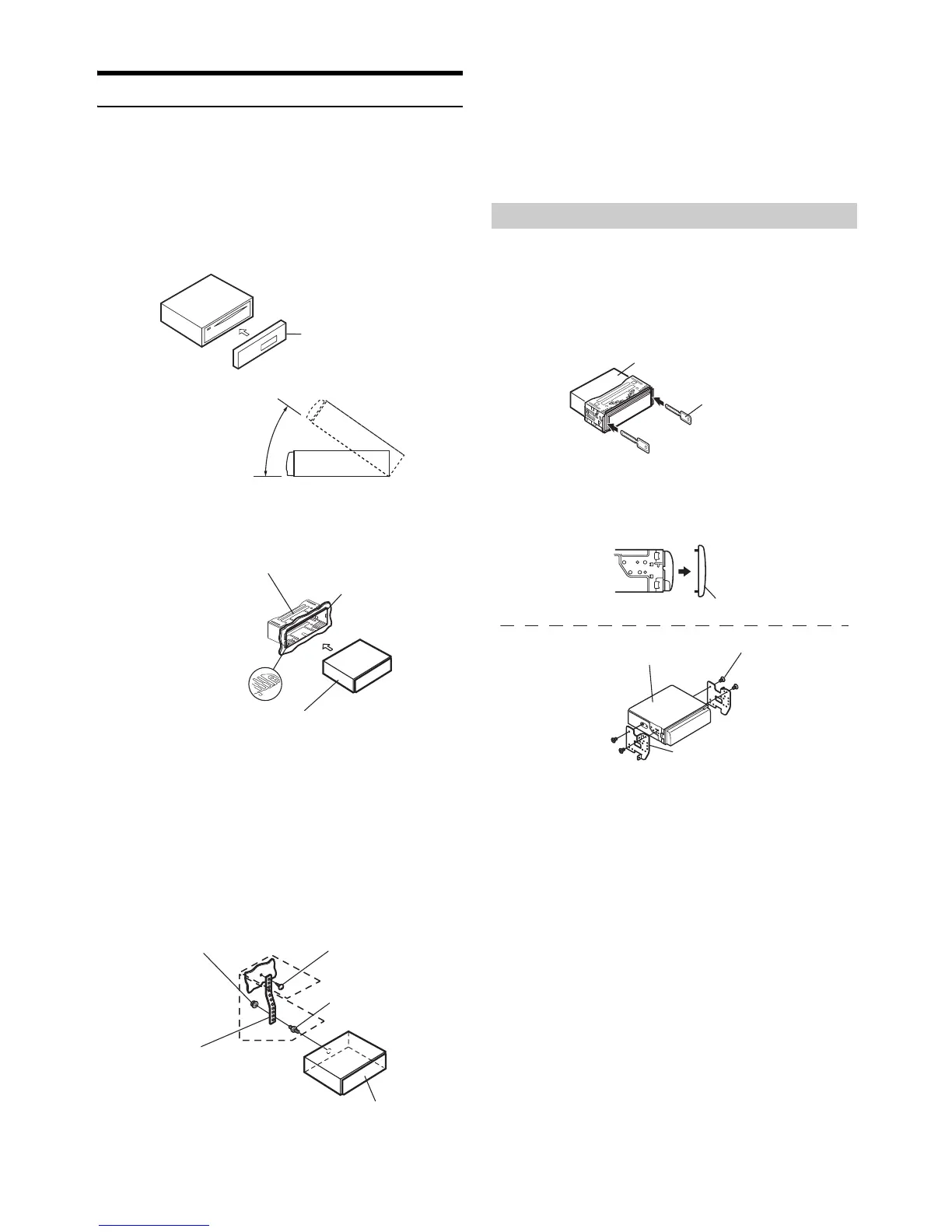

Installation
CAUTION
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
The main unit must be mounted within 35 degrees of the
horizontal plane, back to front.
1
Remove the mounting sleeve from the main unit (Refer to
“Removal” on page 28).
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2
Reinforce the head unit with the metal mounting strap
(not supplied). Secure the ground lead of the unit to a
clean metal spot.
Connect each input lead coming from an amplifier to the
corresponding output lead coming from the left rear of the
CDE-141/CDE-140. Connect all other leads of the CDE-141/
CDE-140 according to details described in the CONNECTIONS
section.
Note
• For the screw marked “
*
”, use an appropriate screw for the chosen
mounting location.
3
Slide the CDE-141/CDE-140 into the dashboard until it
clicks. This ensures that the unit is properly locked and will
not accidentally come out from the dashboard. Install the
detachable front panel.
1
Remove the detachable front panel.
2
Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
3
Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
To Next Page
