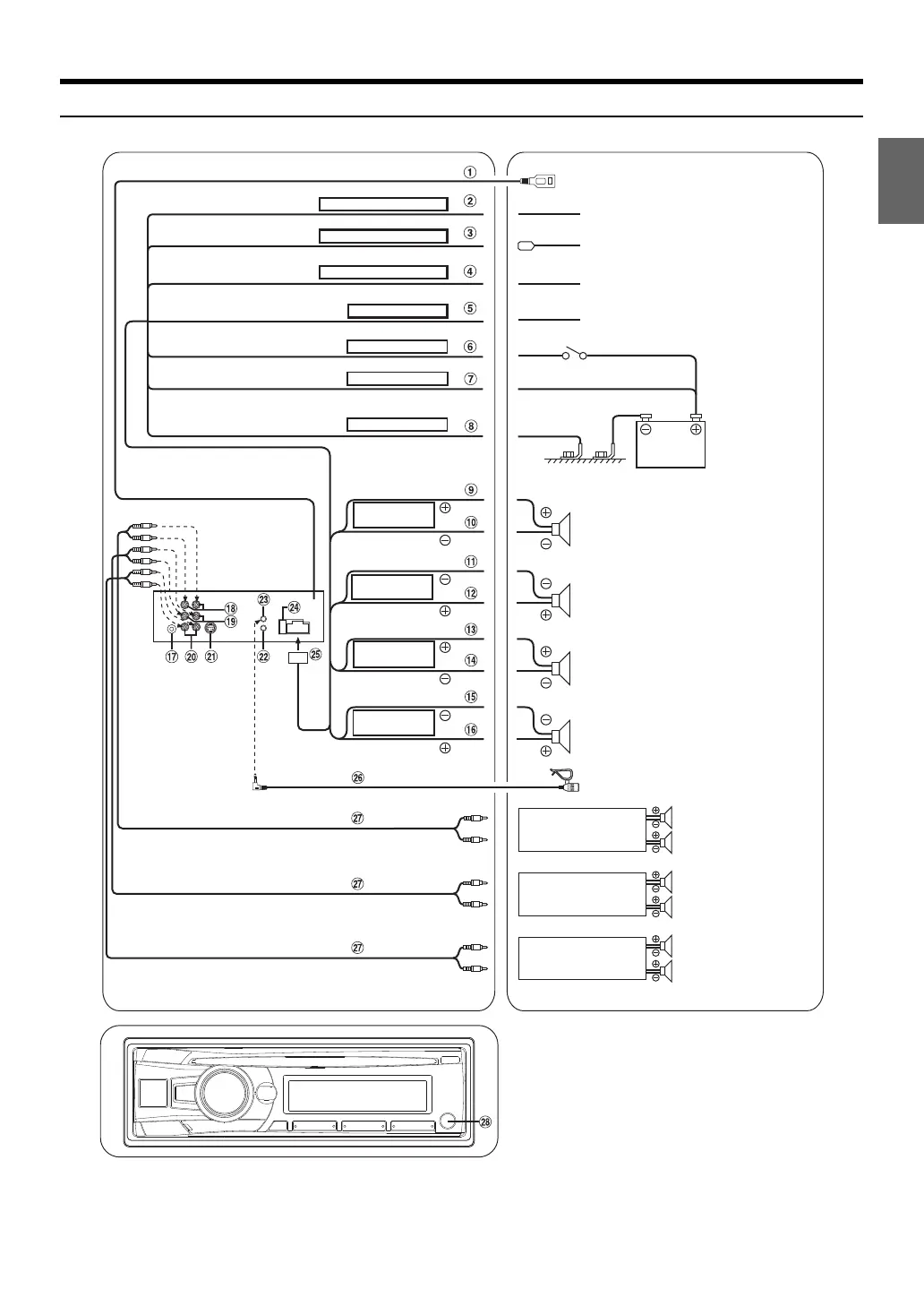

Alpine CDE-154BT - Wiring Connections Diagram; Power, Speaker, and Control Connections; External Device and Accessory Connections

49-EN
Connections
ILLUMINATION
REMOTE TURN-ON
IGNITION
GND
POWER ANT
AUDIO INTERRUPT IN
BATTERY
SPEAKER
RIGHT FRONT
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
Microphone
(Blue/White)
(Pink/Black)
To amplier
To the instrument cluster illumination lead
(Red)
To power antenna
To External Unit (AUX)
To Flash Memory or iPod/iPhone
(Black)
Ignition Key
(Blue)
(Orange)
(Yellow)
Battery
Speakers
(Green)
Rear Left
(Green/Black)
(White)
Front Left
(White/Black)
(Gray/Black)
Front Right
(Gray)
(Violet/Black)
Rear Right
(Violet)
Rear Left
Amplier
Rear Right
Front Left
Amplier
Front Right
Amplier
Subwoofers
