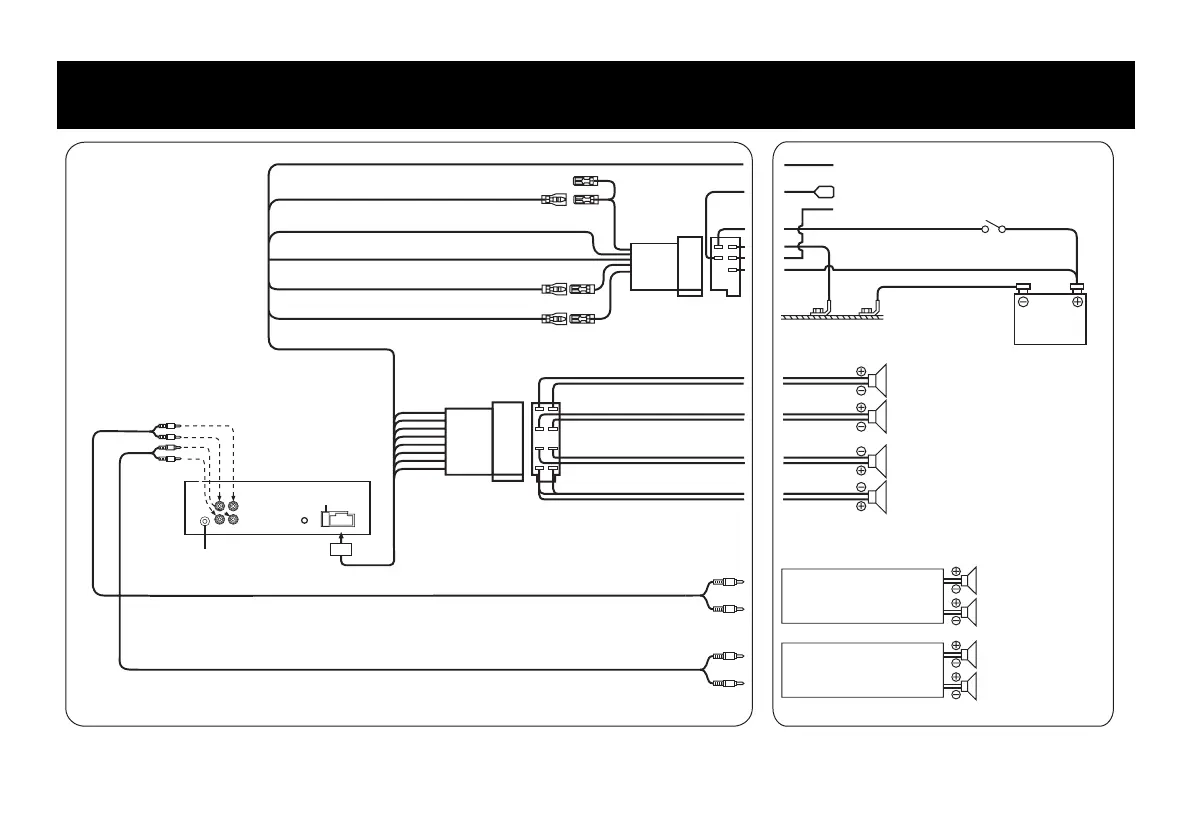

Connections / Anschlüsse / Raccordements
To amplifier/An den Verstärker/À l’amplificateur
To power antenna/An die Motorantenne/Vers l’antenne
électrique
To the instrument cluster illumination lead/An das Beleuchtungskabel
des Instrumentes/Vers le fil d’éclairage du combiné d’instruments
Ignition Key
(Black) / (Schwarz) / (Noire)
(Blue) / (Blau) / (Bleu)
(Yellow) / (Gelb) / (Jaune)
(Green/Black) / (Grün/Schwarz) / (Vert/Noir)
(White/Black) / (Weiß/Schwarz) / (Blanc/Noir)
(Violet/Black) / (Violett/Schwarz) / (Violet/Noir)
(Violet) / (Violett) / (Violet)
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Rear or Subwoofers
Speakers
(Green) / (Grün) / (Vert)
Amplifier
(Orange) / (Orange) / (Orange)
GND
(Blue/White) / (Blau/Weiß) / (Bleu/Blanc)
(Red) / (Rot) / (Rouge)
IGNITION
POWER ANT
DIMMER
BATTERY
(White) / (Weiß) / (Blanc)
(Grey) / (Grau) / (Gris)
REMOTE TURN-ON
FUSE 10A
Amplifier
Front
( Grey /Black) / (Grau/Schwarz) / (Gris/Noir)
Antenna Receptacle
