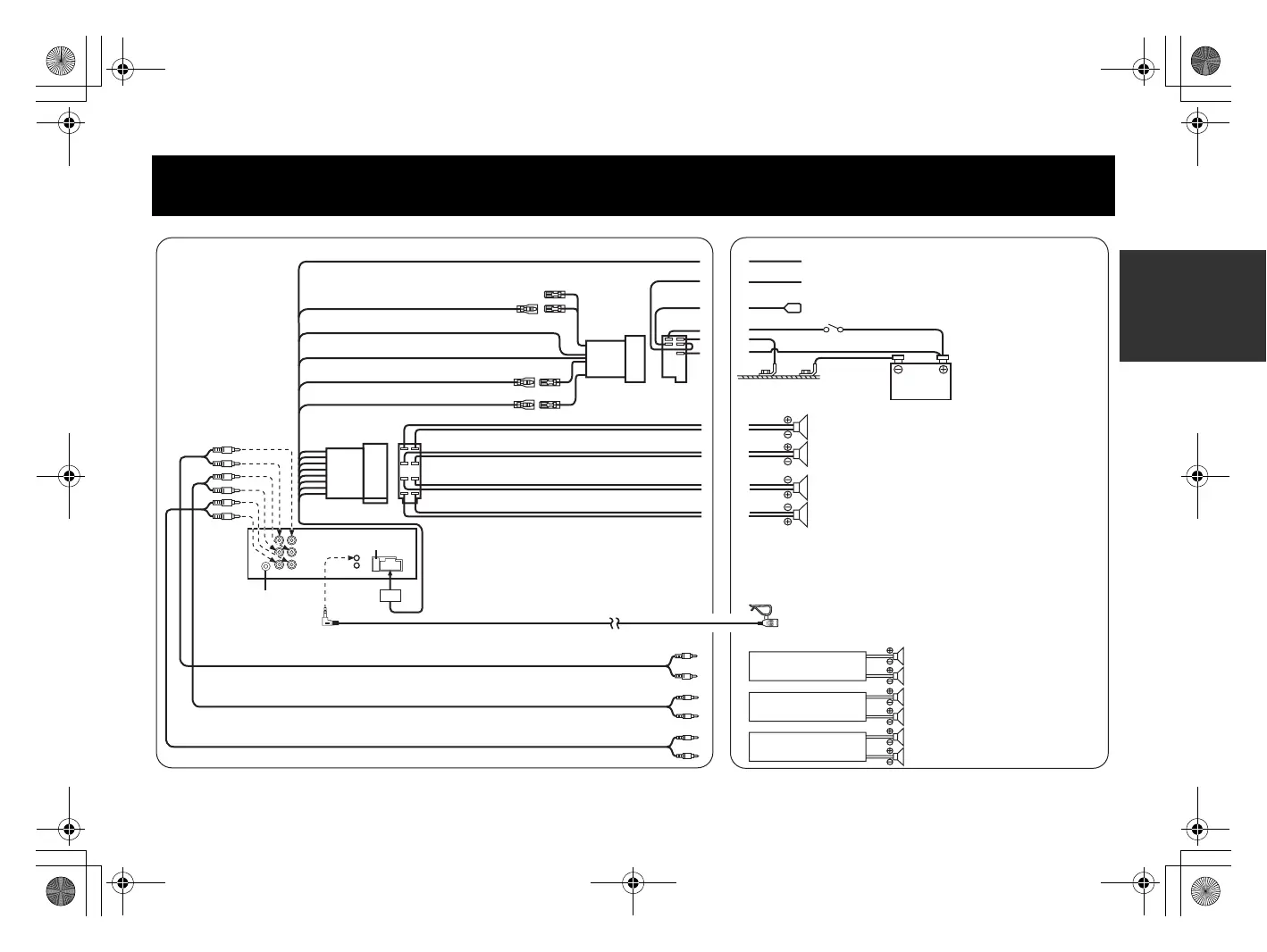

Connections / Anschlüsse / Raccordements
To amplifier / An den Verstärker / Vers l’amplificateur
To the instrument cluster illumination lead / An das Beleuchtungskabel
des Instrumentes / Vers le fil d’éclairage du combiné d’instrument
To power antenna / An die Motorantenne / Vers l’antenne électrique
Ignition Key
Rear Left
Amplifier
Front Right
Front Left
Rear Right
(Blue/White) / (Blau/Weiß) / (Bleu/Blanc)
(Red) / (Rot) / (Rouge)
(Black) / (Schwarz) / (Noir)
(Blue) / (Blau) / (Bleu)
(Yellow) / (Gelb) / (Jaune)
(Green/Black) / (Grün/Schwarz) / (Vert/Noir)
(White/Black) / (Weiß/Schwarz) / (Blanc/Noir)
(Violet) / (Violett) / (Violet)
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Subwoofers
Speakers
Amplifier
RCA Extension Cable (Sold Separately)
FUSE 10A
(Green) / (Grün) / (Vert)
Amplifier
(Orange) / (Orange) / (Orange)
GND
Microphone / Mikrofon / Microphone
Antenna Receptacle
REMOTE TURN-ON
IGNITION
POWER ANT
DIMMER
BATTERY
(White) / (Weiß) / (Blanc)
(Grey/Black) / (Grau/Schwarz) / (Gris/Noir)
(Grey) / (Grau) / (Gris)
(Violet/Black) / (Violett/Schwarz) / (Violet/Noir)
